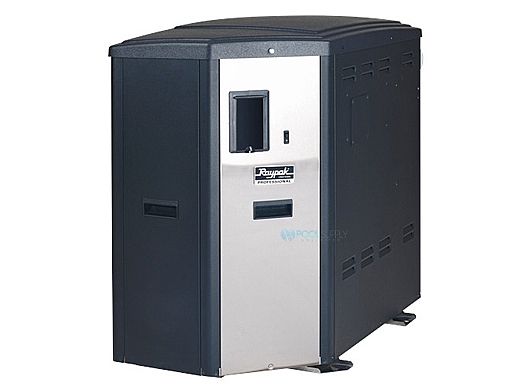

The Raypak X94 Professional heater comes standard as an ASME certified and stamped unit. Beingin the boiler business for over 60 years truly makes Raypak the leader for your commercial needs.Why ASME? Most local codes require that public pools, pools that are in condominiums, apartments,or other commercial applications, be in compliance with ASME Section IV.ASME stands for American Society of Mechanical Engineers, a non-profit group which sets many industrialand manufacturing standards. A pool heater that is made to ASME standards must conformto a set of specifications as determined by ASME, specifically in relation to the operating water pressurethe appliance can handle. Each and every ASME heat exchanger that goes into a Raypak Professionalheater is inspected to make sure it complies with the ASME Code for pool heaters.That’s why Raypak is the only pool heater manufacturer to supply a flow switch, PRV and T&P gauge standard with everyProfessional series gas heater under 400MBTU. We know what it takes to make a unit 50-state ASME compliant right out ofthe box. Does your heater company make sure all the little details are taken care of like Raypak does, or do you have tomake another trip to your distributor to get everything you need?



BASIC DATA

Model Number	Full Input BTUH	Indoor Stack Dia.
014280	399,00	4" cat IV



Features:

• 94% Efficiency
• ASME Code Stainless Steel Marine-Grade Heat Exchanger, stamped for 80 PSIG and National Board registered.
• 75 lb. Pressure Relief Valve and T&P gauge
• External Bypass for High Flow Rates (up to 125 GPM)
• Indoor/Outdoor construction
• Limited Warranty, 3 Year Parts and Labor
• 2” PVC Slip Inlet/Outlet connection
• 115VAC 60Hz 1 HP Power Supply
• Electronic, Intermittent Direct Spark Ignition (DSI)
• Digital Display With Diagnostics and 7-Day Time Clock
• Air-Fuel Ratio Combustion System provides a modulating response to changing needs
• Condensate Drain port, ½” PVC
• Propane
• Low NOx, meets SCAQMD rule 1146.2
• Requires Cat IV Venting: PVC, CPVC, Dura-Vent Polypro, or stainless steel
