Raypak X94 ASME Digital Professional Condensing Gas Pool Heater | Propane 399BTU | 014281

Name: Raypak X94 ASME Digital Professional Condensing Gas Pool Heater | Propane 399BTU | 014281
Brand: Raypak
SKU: 153512
Availability: InStock

Sale $15,838.00
$14,289.00

Raypak X94 ASME Digital Professional Condensing Gas Pool Heater | Propane 399BTU | 014281

0High Efficiency Pool and Spa Heater

Introducing the Raypak X94 Professional series pool heater, designed specifically for commercial properties such as apartments, condos, hotels, motels, schools, parks, community and high-end private pools. It’s also the perfect heater for tough coastal weather conditions where salt air challenges durability. When your reputation is on the line every day, you’ve got to work smart and come prepared with strength, experience, and the guts to lead the way. In a word, it demands a Raypak Professional series pool heater.

Basic Data

Model Number	Full Input BTUH	Indoor Stack Dia.
014281	399,00	4" cat IV

Features

94% Efficiency
ASME Code Stainless Steel Marine-Grade Heat Exchanger, stamped for 80 PSIG and National Board registered.
75 lb. Pressure Relief Valve and T&P gauge
External Bypass for High Flow Rates (up to 125 GPM)
Indoor/Outdoor construction
Limited Warranty, 3 Year Parts and Labor
2” PVC Slip Inlet/Outlet connection
115VAC 60Hz 1 HP Power Supply
Electronic, Intermittent Direct Spark Ignition (DSI)
Digital Display With Diagnostics and 7-Day Time Clock
Air-Fuel Ratio Combustion System provides a modulating response to changing needs
Condensate Drain port, ½” PVC
Natural Gas
Low NOx, meets SCAQMD rule 1146.2
Requires Cat IV Venting: PVC, CPVC, Dura-Vent Polypro, or stainless steel

Microprocessor

control is more precise than mechanical systems. It controls temperatures for pool
and spa settings and stores diagnostic information for service technicians.

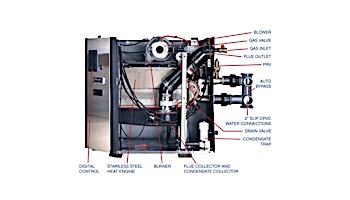

Heat Exchanger

The first gas fired pool heater to use a stainless steel heat exchanger designed specifically for pool heating.
Excellent for salt chlorine generated pools.

Microprocessor-Controlled Thermostat

The Raypak X94 Professional gas heater is equipped with a microprocessor-based
control. This control allows you to set your pool and spa temperature precisely
at your preferred setting just by pressing an up or down temperature control button. The digital display tells you when the water is being heated and notifies you when your target temperature has been reached.

Rheem EcoNet®ÂÂÂÂÂÂÂÂÂÂÂÂ? Enabled

Introducing EcoNet, the first control that integrates your heating, cooling and water heating systems. Now you can enjoy total home comfort at your fingertips, with an advanced control that makes it simple to adjust temperature, set schedules, check system status and more. It’s smart technology that makes it easier than ever to ensure all of your home comfort systems are working together at peak efficiency.

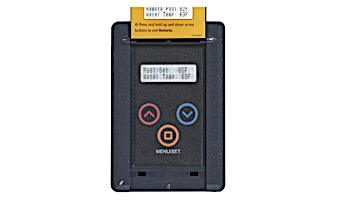

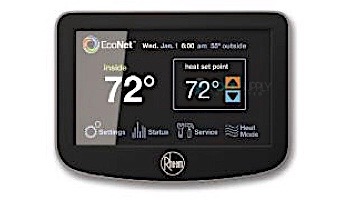

Optional EcoNet Remote Control Center

Home control with intuitive LCD Touchswcreen Navigation

Brand: Raypak

REVIEWS

Q&A

Raypak X94 ASME Digital Professional Condensing Gas Pool Heater | Propane 399BTU | 014281

Sale $15,838.00
$14,289.00

Gas Type:

Propane

Natural Gas

Propane

Quantity

Free Shipping

Platinum Preferred Manufacturer

Rebates Available

$350 Installation Rebate on Raypak Heaters & Heat Pumps
Valid from 11/13/2025 to 05/31/2028

Purchase options

Product description

0High Efficiency Pool and Spa Heater

Basic Data

Model Number	Full Input BTUH	Indoor Stack Dia.
014281	399,00	4" cat IV

Features

94% Efficiency
ASME Code Stainless Steel Marine-Grade Heat Exchanger, stamped for 80 PSIG and National Board registered.
75 lb. Pressure Relief Valve and T&P gauge
External Bypass for High Flow Rates (up to 125 GPM)
Indoor/Outdoor construction
Limited Warranty, 3 Year Parts and Labor
2” PVC Slip Inlet/Outlet connection
115VAC 60Hz 1 HP Power Supply
Electronic, Intermittent Direct Spark Ignition (DSI)
Digital Display With Diagnostics and 7-Day Time Clock
Air-Fuel Ratio Combustion System provides a modulating response to changing needs
Condensate Drain port, ½” PVC
Natural Gas
Low NOx, meets SCAQMD rule 1146.2
Requires Cat IV Venting: PVC, CPVC, Dura-Vent Polypro, or stainless steel

Microprocessor

control is more precise than mechanical systems. It controls temperatures for pool
and spa settings and stores diagnostic information for service technicians.

Heat Exchanger

The first gas fired pool heater to use a stainless steel heat exchanger designed specifically for pool heating.
Excellent for salt chlorine generated pools.

Microprocessor-Controlled Thermostat

Rheem EcoNet®ÂÂÂÂÂÂÂÂÂÂÂÂ? Enabled

Optional EcoNet Remote Control Center

Home control with intuitive LCD Touchswcreen Navigation

Features and details

Specifications

Resources

Warranty

Raypak, Inc. (“Raypak”) warrants to the original owner that the below model pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. The foregoing warranty will extend to subsequent owners solely as required by applicable state law. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period (as defined below).

MODELS	WARRANTY PERIOD
AVIA Standard Models with copper heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor.
AVIA HD Models with NiTek heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor. Notwithstanding the foregoing, the NiTek heat exchanger is warranted for three (3) years following the Effective Date for parts and labor.
Pool and Spa Heater Models: 106A, 156A, 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A*	Two (2) years following the Effective Date for parts and labor.
ASME Pool and Spa Heater Models: 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A	One (1) year following the Effective Date for parts and labor.
Professional Pool and Spa Heater Models: Professional digital heaters 268A, 408A, SR-410	Three (3) years following the Effective Date for parts and labor.
Heat Pump Pool Heater Models: 2450, 3450, 4450, 5450, 6450, 8450, TWPH 4550, 5550, 6550, 6550EHC, 8550, & 8550EHC and Professional Series PS- 9350ti, PS9353ti, PS10353ti, PS10354ti, PS10355ti	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
Crosswind Heat Pump Pool Heater Models: 30-I, 40-I, 50-I, 65-I	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
E3T Single-Phase Pool and Spa Heater Models: 0005, 0011, 0018, 0027 E3T 3-Phase Commercial Pool Heater Models: 0018, 0024, 0030, 0045 and 0054	One (1) year following the Effective Date labor and parts. Notwithstanding the foregoing, the electrical heating element of the Heater is warranted for only ninety days (90) following the Effective Date.

* THIS WARRANTY PERIOD IS NOT AVAILABLE FOR HEATERS INSTALLED ANYWHERE OTHER THAN A SINGLE-FAMILY RESIDENTIAL DWELLING, AS THIS HEATER IS NOT INTENDED FOR COMMERCIAL INSTALLATION.

See product warranty for specific details. Conditions apply. To register your product or to make a claim, please visit www.raypak.com/warranty.

This information was updated on 7/14/23. For the most current information and full warranty policy please visit www.raypak.com.

Warranty Information
