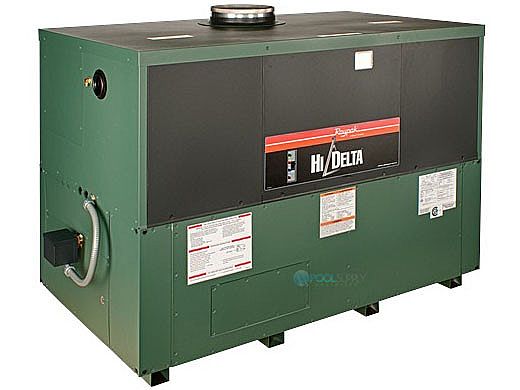

Home Raypak HI Delta P-1262C Commercial Indoor-Outdoor Swimming Pool Heater | Natural Gas 1,260,000 BTUH | 016066

Raypak HI Delta P-1262C Commercial Indoor-Outdoor Swimming Pool Heater | Natural Gas 1,260,000 BTUH | 016066

$24,713.63
Raypak HI Delta P-1262C Commercial Indoor-Outdoor Swimming Pool Heater | Natural Gas 1,260,000 BTUH  | 016066
The Hi Delta® line of fan-assisted combustion units offers solid performance with low emissions, flexible control, and easy-to-understand diagnostics.

BASIC DATA
Model
Number
Full Input BTUH Indoor Stack
Dia.
Bypass Options
H-Style
Bypass
None (Field-Supplied) CWR
P-992C 990,000 10" STD Yes Yes
P-1262C 1,260,000 12" STD Yes Yes
P-1532C 1,530,000 12" STD Yes Yes
P-1802C 1,802,000 14" STD Yes Yes
P-2002C 1,999,000 14" STD Yes Yes
P-2072C 2,070,000 14" STD Yes Yes
P-2342C 2,340,000 16" STD Yes Yes

Features:
  • 83.1% efficiency
  • Multiple vertical venting and sidewall venting options. No extractor required for sidewall applications up to 70ft on room air.
  • All models indoor/outdoor certified
  • Patented burner "security blanket" enhances staged combustion, minimizes installation/start-up issues, and protects burners from metal fatigue.
  • 105ºF minimum inlet water temperature
  • Cupro-nickel finned-tube heat exchanger with brass headers. AB 1953 compliant.
  • VERSA IC® control package with LCD display
  • Status display lights
  • Cascade control of up to 4 units, no external sequencer required
  • Diagnostics center with history in English , not in codes
  • Modbus RTU BMS port (RS485)
  • 0-10 VDC BMS Interface (set point or direct drive)
  • Ducted combustion air capable. TruSeal® CSA-Certified direct-vent available.
  • Models 992C-2002C certified to SCAQMD Rule 1146.2. Meets all Low NOx regulations.
  • All models except 2002C available for natural gas and propane. Model 2002C available for natural gas only.
  • Certified to the ANSI Z21.56 pool heater standard.
Bypass Options:
  • The standard external bypass uses an external bypass to achieve cold-water protection
  • All units available without an external bypass; cold-water protection provided in the field
  • The Cold Water Run (CWR) option provides electronic control of a variable-speed pump to continuously adjust bypass flow, achieving real-time cold-water protection


Brand: Raypak
