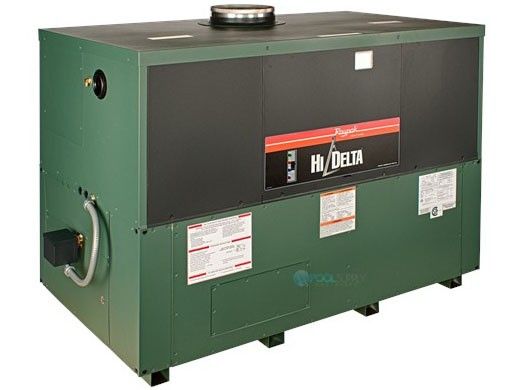

Raypak HI Delta P1262C Commercial Indoor-Outdoor Swimming Pool Heater | Propane Gas 1,260,000 BTUH | 016079

$24,713.63

The Hi Delta® line of fan-assisted combustion units offer solid performance and flexible controls with easy-to-understand diagnostics.

Features:

All models Indoor/Outdoor certified
Certified to ANSI Z21.56
Vertical vented as category I, sidewall vented as category III
Efficiency: 85%
Patented burner “security blanket” enhances staged combustion, minimizes installation/start-up issues, and protects burners from metal fatigue
Cupro-nickel finned-tube heat exchanger with brass headers; AB 1953 low-lead compliant
Sidewall venting capable. No extractor needed for most applications. An extra part is needed for horizontal venting
Ducted combustion air ready. TruSeal® CSA-Certified direct-vent available
VERSA IC® Control Package with LCD Display
Status Display Lights
Cascade control of up to 4 units, no external sequencer required
Diagnostics Center with History, English, no codes
Modbus RTU BMS port (RS485)
0-10 VDC BMS Interface (Setpoint or Direct Drive)
Models 992B-2002B certified to SCAQMD Rule 1146.2. Meets all low NOx regulations
All models except 2002B available in natural gas and propane. Model 2002B available for natural gas only

Bypass Options:

The standard external bypass uses an external bypass to achieve cold-water protection
All units available without an external bypass; cold-water protection provided in the field
The Cold Water Run (CWR) option provides electronic control of a variable-speed pump to continuously adjust bypass flow, achieving real-time cold-water protection

Brand: Raypak

REVIEWS

Q&A

PARTS

Raypak HI Delta P1262C Commercial Indoor-Outdoor Swimming Pool Heater | Propane Gas 1,260,000 BTUH | 016079

$24,713.63

Quantity

Parts Available

Platinum Preferred Manufacturer

Product description

Features and details

Specifications

Resources

Warranty

Raypak, Inc. (“Raypak”) warrants to the original owner that the below model pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. The foregoing warranty will extend to subsequent owners solely as required by applicable state law. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period (as defined below).

MODELS	WARRANTY PERIOD
AVIA Standard Models with copper heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor.
AVIA HD Models with NiTek heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor. Notwithstanding the foregoing, the NiTek heat exchanger is warranted for three (3) years following the Effective Date for parts and labor.
Pool and Spa Heater Models: 106A, 156A, 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A*	Two (2) years following the Effective Date for parts and labor.
ASME Pool and Spa Heater Models: 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A	One (1) year following the Effective Date for parts and labor.
Professional Pool and Spa Heater Models: Professional digital heaters 268A, 408A, SR-410	Three (3) years following the Effective Date for parts and labor.
Heat Pump Pool Heater Models: 2450, 3450, 4450, 5450, 6450, 8450, TWPH 4550, 5550, 6550, 6550EHC, 8550, & 8550EHC and Professional Series PS- 9350ti, PS9353ti, PS10353ti, PS10354ti, PS10355ti	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
Crosswind Heat Pump Pool Heater Models: 30-I, 40-I, 50-I, 65-I	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
E3T Single-Phase Pool and Spa Heater Models: 0005, 0011, 0018, 0027 E3T 3-Phase Commercial Pool Heater Models: 0018, 0024, 0030, 0045 and 0054	One (1) year following the Effective Date labor and parts. Notwithstanding the foregoing, the electrical heating element of the Heater is warranted for only ninety days (90) following the Effective Date.

* THIS WARRANTY PERIOD IS NOT AVAILABLE FOR HEATERS INSTALLED ANYWHERE OTHER THAN A SINGLE-FAMILY RESIDENTIAL DWELLING, AS THIS HEATER IS NOT INTENDED FOR COMMERCIAL INSTALLATION.

See product warranty for specific details. Conditions apply. To register your product or to make a claim, please visit www.raypak.com/warranty.

This information was updated on 7/14/23. For the most current information and full warranty policy please visit www.raypak.com.
