Raypak D-2 Indoor Power Vent 206-267 120/240V | 009832

Name: Raypak D-2 Indoor Power Vent 206-267 120/240V | 009832
Brand: Raypak
SKU: 86413
Availability: InStock

$792.73

Raypak D-2 Indoor Power Vent 206-267 120/240V | 009832

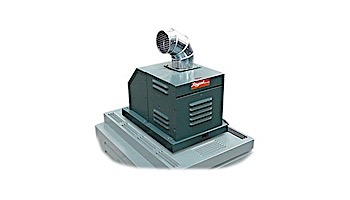

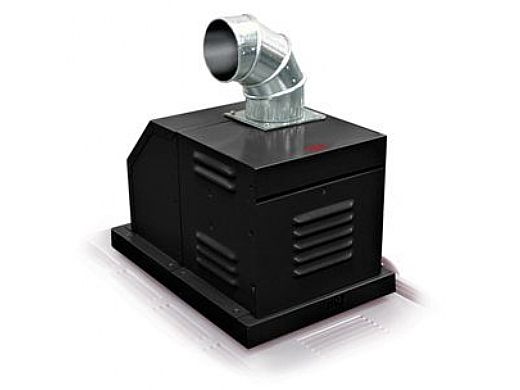

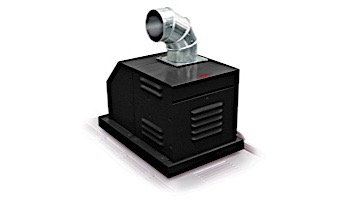

The D-2 Power Vent is compatible for indoor or outdoor installation on all Raypak Digital models. The D-2s assembly is tested and certified to the latest edition of the American National Standard ANSI Z21.56 for pool heaters. Not only is the D-2 through the wall capable, the vent assembly is a Category III mechanical draft venting system that operates with a positive vent static pressure and with a vent gas temperature that avoids excessive condensate production in the vent.

All sizes are capable of relieving flue gases up to a maximum of 100 equivalent feet of vent length. All models have a 4 diameter exhaust connection. Using the supplied adjustable 90 elbow, the flue gases may be discharged in any direction (see D-2 Power Vent manual for details). Or simply remove the elbow for vertical venting.

D-2 Power Vent is a Dual Voltage Induced Draft Blower (120/240 VOLT), factory set for 240 volts and can also be rewired in the field for 120v operation. The D-2 is safety at Its best. It is equipped with a draft proving switch. This switch ensures that the blower is operating before operating your heater. It is also equipped with a solid state control that allows the blower to purge any residual gas buildup in the heater after the heater has shut down.

Brand: Raypak

REVIEWS

Q&A

PARTS

Review More Purchases | My Posts

5.0 / 5.0

1 Review

5 Stars

4 Stars

3 Stars

2 Stars

1 Star

Rated 5 out of 5

Required for Indoor

I didn't know until after I ordered my heater, but this is required for indoor application. Basically its like attaching a fan to your exhaust of your heater to get the exhaust out of the room the heater is installed in. It fits multiple heaters, like my PR266. Installs fairly quickly and easily. Shipped pretty quickly as well.

Was this review helpful? Yes (1) No (0)
Flag as Inappropriate

August 7, 2016

John

Was this review helpful? Yes (1) No (0)
Flag as Inappropriate

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

No questions have been asked about this item. Be the first!

Raypak D-2 Indoor Power Vent 206-267 120/240V | 009832

$792.73

Quantity

Parts Available

Platinum Preferred Manufacturer

Purchase options

Product description

Features and details

Specifications

Resources

Warranty

Raypak, Inc. (“Raypak”) warrants to the original owner that the below model pool and spa heater (the “Heater”) when installed in the contiguous 48 states of the United States of America with a pool or spa by a properly licensed installer will be free from defects in materials and workmanship under normal use and service for the Applicable Warranty Period. The foregoing warranty will extend to subsequent owners solely as required by applicable state law. Under this Limited Warranty, Raypak will, at its option, repair or furnish a replacement for any defective part of the HEATER. The repair or replacement will be warranted for only the unexpired portion of the original Applicable Warranty Period (as defined below).

MODELS	WARRANTY PERIOD
AVIA Standard Models with copper heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor.
AVIA HD Models with NiTek heat exchanger: 264, 404	Two (2) years following the Effective Date for parts and labor. Notwithstanding the foregoing, the NiTek heat exchanger is warranted for three (3) years following the Effective Date for parts and labor.
Pool and Spa Heater Models: 106A, 156A, 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A*	Two (2) years following the Effective Date for parts and labor.
ASME Pool and Spa Heater Models: 206A, 266A, 336A, 406A, 207A, 267A, 337A, 407A	One (1) year following the Effective Date for parts and labor.
Professional Pool and Spa Heater Models: Professional digital heaters 268A, 408A, SR-410	Three (3) years following the Effective Date for parts and labor.
Heat Pump Pool Heater Models: 2450, 3450, 4450, 5450, 6450, 8450, TWPH 4550, 5550, 6550, 6550EHC, 8550, & 8550EHC and Professional Series PS- 9350ti, PS9353ti, PS10353ti, PS10354ti, PS10355ti	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
Crosswind Heat Pump Pool Heater Models: 30-I, 40-I, 50-I, 65-I	Two (2) years following the Effective Date for labor and seven (7) years following the Effective Date for parts. Notwithstanding the foregoing, the titanium tube component of the titanium heat exchanger is warranted for ten (10) years following the Effective Date for parts and two (2) years following the Effective Date for labor.
E3T Single-Phase Pool and Spa Heater Models: 0005, 0011, 0018, 0027 E3T 3-Phase Commercial Pool Heater Models: 0018, 0024, 0030, 0045 and 0054	One (1) year following the Effective Date labor and parts. Notwithstanding the foregoing, the electrical heating element of the Heater is warranted for only ninety days (90) following the Effective Date.

* THIS WARRANTY PERIOD IS NOT AVAILABLE FOR HEATERS INSTALLED ANYWHERE OTHER THAN A SINGLE-FAMILY RESIDENTIAL DWELLING, AS THIS HEATER IS NOT INTENDED FOR COMMERCIAL INSTALLATION.

See product warranty for specific details. Conditions apply. To register your product or to make a claim, please visit www.raypak.com/warranty.

This information was updated on 7/14/23. For the most current information and full warranty policy please visit www.raypak.com.
