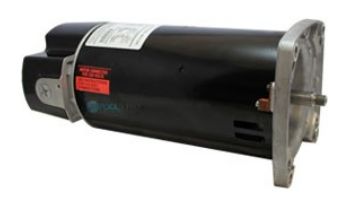

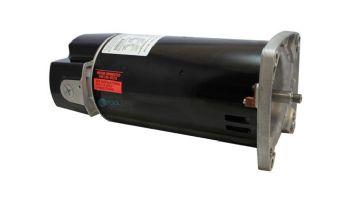

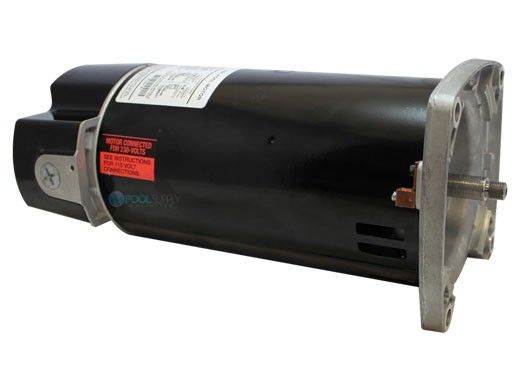

Home Replacement Square Flange Pool & Spa Motor | .5HP Full-Rated/.75HP Up-Rated | 48 Frame Standard Efficiency | 115/230V | AE100CHL | ESQ1052 | EUSQ1072 | SQ1052 | USQ1072 | HSQ095 | ASQ095

Replacement Square Flange Pool & Spa Motor | .5HP Full-Rated/.75HP Up-Rated | 48 Frame Standard Efficiency | 115/230V | AE100CHL | ESQ1052 | EUSQ1072 | SQ1052 | USQ1072 | HSQ095 | ASQ095

$231.10
Replacement Square Flange Pool & Spa Motor | .5HP Full-Rated/.75HP Up-Rated | 48 Frame Standard Efficiency | 115/230V | AE100CHL | ESQ1052 | EUSQ1072 | SQ1052 | USQ1072 | HSQ095 | ASQ095
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures. Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • Shaft Threads - 1/2-20 UNF-2A
  • 50 Degree 'C' Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Open Drip-Proof
  • Sealed Ball Bearings
  • Thermally Protected
  • Class B Insulated
  • 300 Series Stainless Steel Shaft
  • Voltage Selection Device (Dual Voltage Only)
  • Frequency: 60
  • Length Less Shaft: 12.05
  • Weight: 18
Specifications:
Type Standard Efficient
Rating Total Horsepower Rated
Speed Single
Frame Size/Diameter 48Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 115/230
Frequency 60 Hz
Amps 5.5/11.0
Service Factor
THP 0.95
RPM 3450
Shaft Type Threaded
Rotation CCW Drive End
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.
