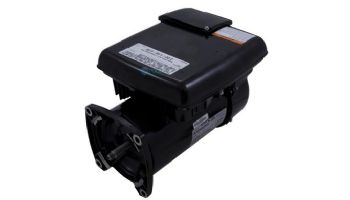

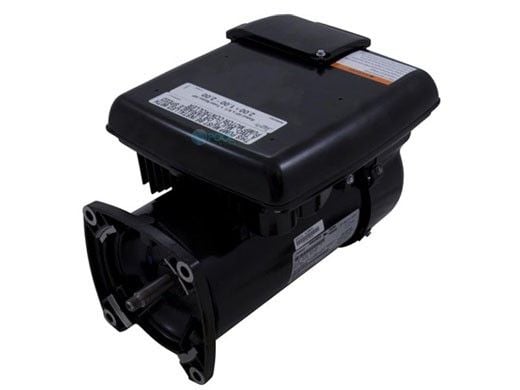

Home Replacement Jandy JEP 2.0 Pool & Spa TEFC Motor with Drive | 2HP Variable Speed | 230V High Efficiency | R0562201
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Replacement Jandy JEP 2.0 Pool & Spa TEFC Motor with Drive | 2HP Variable Speed | 230V High Efficiency | R0562201

Call us to order this item.
Replacement Jandy JEP 2.0 Pool & Spa TEFC Motor with Drive | 2HP Variable Speed | 230V High Efficiency | R0562201
Jandy Pro Series Motor and Drive 2HP

For use with: ePump, PlusHP and FloPro™ VS-FHP Series Variable Speed Pumps

Specifications:
  • THP (Total HP): 2.21
  • Volt: 230
  • Amps: 9.0
  • Speed: Variable
  • RPM: 600,1500, 2400, 3000, 3450
Specifications:
Type Energy Efficiency
Rating Full-Rated
Speed Variable
Frame Size/Diameter 48Y
Enclosure TEFC
Phase Category Single
Voltage 230
Amps 9.0
HP 1-1/4HP - 2.7HP
THP 2.7
RPM 600 - 3450
Shaft Type Threaded
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.
