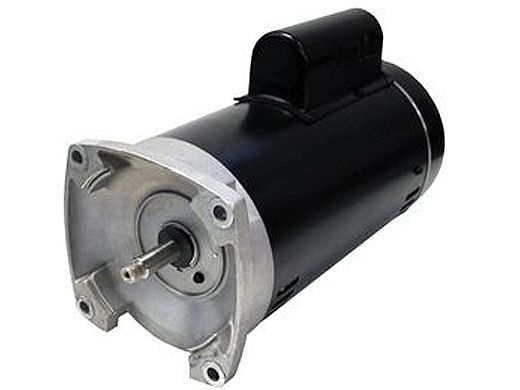

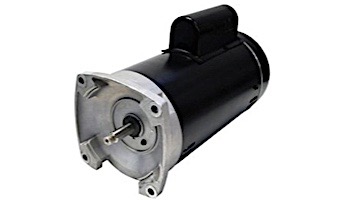

Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures. Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.
- Two Compartment
- 1081 Design
- Open Drip-Proof
- 300 Series Stainless Steel Shaft
- Shaft Threads - 1/2-20 UNF-2A
- Voltage Selection Device (Dual Voltage Only)
- Switchless Design
- 6.5" Diameter Frame
- Triple Bearing Protection
- Continuous Duty
- Sealed Ball Bearings
- Class B Insulated
- Thermally Protected
- 50 Degree 'C' Ambient
- Frequency: 60
- Length Less Shaft: 11.74
- Weight: 25
NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.
U.S. MOTORS® Pool/Spa Warranty Period
U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.
Definition of Date Code
First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).
Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.
A=January B=February C=March D=April .... L=November M=December
Third/Fourth Character - 07 - These characters represent the year the motor was built.
05=2005 06=2006 07=2007 08=2008 ....
Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.
