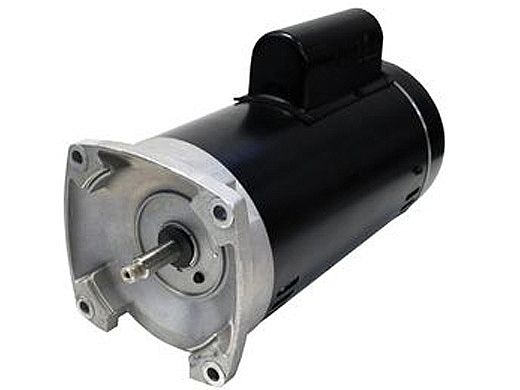

Home Replacement Square Flange Pool Motor 56 Frame | 115/230V 2HP Up Rated | B859 | EB859
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into mid-2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Replacement Square Flange Pool Motor 56 Frame | 115/230V 2HP Up Rated | B859 | EB859

Replacement Square Flange Pool Motor 56 Frame | 115/230V 2HP Up Rated | B859 | EB859
This item has been discontinued.

Shipping Flat Rate Shipping $29.95
  • Standard Efficient, Low Service Factor
  • Switchless Design
  • 6.5" Frame Diameter
OVERVIEW
SPECIFICATIONS
Q & A
REVIEWS
RESOURCES
FOR YOU

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Pentair SuperFlo Standard Efficiency Pool Pump | 115-230V 2HP | 340040
Pentair SuperFlo Standard Efficiency Pool Pump | 115/230V 2HP | 340040
Replacement Parts

OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures.  Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • 1081 Design
  • Open Drip-Proof
  • 300 Series Stainless Steel Shaft
  • Shaft Threads - 1/2-20 UNF-2A
  • Voltage Selection Device (Dual Voltage Only)
  • Switchless Design
  • 6.5" Diameter Frame
  • Triple Bearing Protection
  • Continuous Duty
  • Sealed Ball Bearings
  • Class B Insulated
  • Thermally Protected
  • 50 Degree 'C' Ambient
  • Frequency: 60
  • Length Less Shaft: 12.99
  • Weight: 33



NOTE:  Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code
XA07X
First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character
- A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.
A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.
05=2005  06=2006  07=2007  08=2008 ....

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.


Brand: EMERSON
