Home Pool CYBER WEEK Pool Slides SR Smith Typhoon Pool Slide | Left Curve | Sandstone | 670-209-58223
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

SR Smith Typhoon Pool Slide | Left Curve | Sandstone | 670-209-58223

SR Smith Typhoon Pool Slide | Left Curve | Sandstone | 670-209-58223 SR Smith Typhoon Pool Slide | Left Curve | Sandstone | 670-209-58223 SR Smith Typhoon Pool Slide | Left Curve | Sandstone | 670-209-58223 SR Smith Typhoon Pool Slide | Left Curve | Sandstone | 670-209-58223 SR Smith Typhoon Pool Slide | Left Curve | Sandstone | 670-209-58223 SR Smith Typhoon Pool Slide | Left Curve | Sandstone | 670-209-58223 SR Smith Typhoon Pool Slide | Left Curve | Sandstone | 670-209-58223
$2,685.00

Quantity:
Platinum Preferred Manufacturer

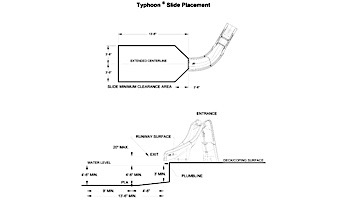

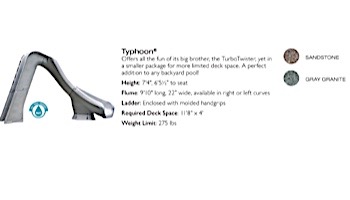

  • Height: 7'4". Flume length: 9'10". Required deck space: 11'8" x 4'0". Weight limit: 275 lbs.

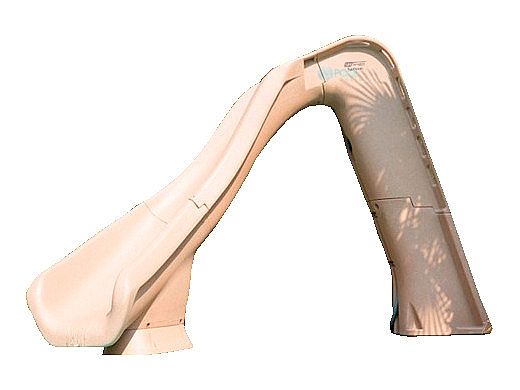

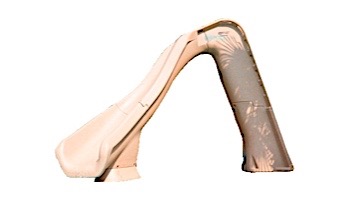

  • Available in Sandstone (pictured above) and Gray Granite
  • Available in left and right curves (left curve pictured above)
  • Suitable for both standard and saltwater pools (in-ground pools only)
  • Children under 48" tall must be supervised at all times
  • Simple deck-mounted installation - no anchors required
OVERVIEW

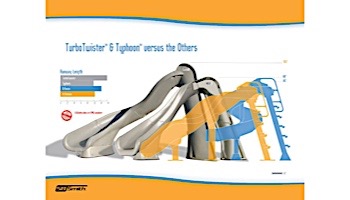

The Typhoon slide is modeled after SR Smith's popular TurboTwister, but built with slightly smaller pools in mind. This full-sized addition to the rotomolded slide line (heliX, TurboTwister® and Cyclone) stands 7'4" tall to the top of the handrails and uses the same GrandRapids high-volume water delivery system with a flume nearly 10 feet long. The Typhoon is available in Sandstone and Gray Granite designer colors to fit in seamlessly with your backyard decor.

Installation instructions for the Typhoon are provided on this page in the Product Resource Center. Its 25 gpm water delivery system can be plumbed through the pool's return line or connected to any garden hose.

This slide was designed by SR Smith for fun and safety with an enclosed ladder and molded handrails.

Specifications

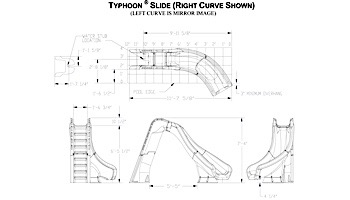

  • 7’4” in height (6'51/2" to seat)
  • Available with a right or left curved flume
  • Accommodates sliders up to 275 lbs/124kg
  • Sturdy rotomolded construction – for strength and durability
  • Enclosed ladder and molded handrail design for maximum safety
  • Designed for quick and easy assembly

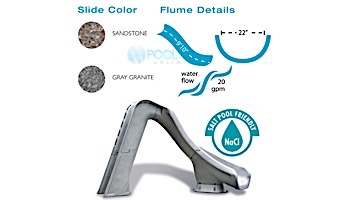

  • 20 gpm max. water delivery system can be plumbed through the pool’s return line or connected to a garden hose
  • Simple deck mounted installation
  • Intended for in-ground residential swimming pools only
All S.R.Smith pool slides fully conform to the Consumer Products Safety Commission standards for swimming pool slides (16 CFR PART 1207)



Brand: S.R.Smith
SPECIFICATIONS
Salt Friendly
Yes
Height
7'4"
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 11 questions Browse 11 questions and 20 answers
How is water hooked up to hose?
Ron B on Feb 26, 2017
BEST ANSWER: There is tubing included that runs up the slide from underneath. The ground end can be capped with a garden hose fitting, or a pvc pipe adapter.. either way pretty standard. We actually did not even hook up water to the slide... with the first wet swimmer it slicks up quickly and we never felt the need for more water... it works great! No regrets.
Does the slide have to sit in a straight line from the pool edge or can it sit at angled at all?
A shopper on Aug 7, 2020
BEST ANSWER: According to figure 15 in the "installation manual" which is on the website, the slide does not need to be in a straight line, but can sit at an angle. Figure 15 shows the various angles that the slide can sit. The main thing to watch out for is the pool depth beneath the slide.
Can this be anchored into pavers?
Wendy W on Dec 23, 2016
BEST ANSWER: I wouldn't recommend it. I poured concrete under the paver with bolts coming thru the paver and anchored it that way
How do I know if I need the left or right curve?
Lisa H on Jul 25, 2017
BEST ANSWER: the slide exit needs to open towards the center of the deep end. choose the curve that will slide you that direction. If your pool deck is big enough , you can accomplish this with either a left or a right. remember the slide needs a water connection. we bought our slide before the deck was done and assembled it so we knew where to put the water location and reinforce for the bolt locations
how deep do your pool have to be for this pool slide?
l g on Oct 2, 2020
BEST ANSWER: We slide into 5 ft of water. The depth you go down depends on your entrance angle.
What is the degree of the curve? Trying to decide where to sit the slide on a pool with a rounded end, either in the center of the end with without left turn or on the left side of the pool with a right turn
A shopper on Aug 7, 2020
BEST ANSWER: I had the same issue , so before I put pavers down , I actually ordered the slide and mock set it up . This allowed me to adjust that angle and also put small footings in under the pavers to secure it.
Is there any financing longer than 6 months on slides greater than $3000?
A shopper on Mar 20, 2018
BEST ANSWER: I'm sorry, I cannot answer your question as I did not finance my slide.
Does a water hose connect to there hose?
Ron B on Feb 27, 2017
BEST ANSWER: Yes. It comes with a hose attachment.
What is your return policy?
Joshua F on May 18, 2016
BEST ANSWER: when I recieved the slide it was damaged and I took pictures sent it to them and they sent me out a new slide. it was fairly quick within 2 weeks
Hi We only have 6 feet of concrete for width on our pool deck but have a 40 length. Will this still work?
A shopper on May 13, 2021
I notice the oval piece that supports the end of the slide sits slightly angled. It appears the "top" of the oval and the back side base of the stairs are in a straight line from one another. What is the degree of the angle of the oval piece. Just want to be sure where the stairs are set to be placed lines up with the slide exit going into the pool at the correct place. I tried measuring per the slide measurements at a diagonal across the pool deck to the pool edge, but not knowing the degree of curve on the 2nd half of the slide makes it hard to be certain. It doesn't appear the top half of the slide will affect the exit point??
A shopper on Aug 18, 2020
REVIEWS
5.0 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
4
0
0
0
0
Rated 5 out of 5
Great product. It was easy to assemble and install. The grandkids (and adults) love it.
June 2, 2018
Purchased
over 3 years ago
Rated 5 out of 5
Great slide, heavily built
A little costly, but the kids love it. It was fairly easy to assemble, it is stable, looks good, and does not feel cheap at all.. very heavy duty.
August 22, 2016
Purchased
over 5 years ago
Rated 5 out of 5
Out with the Old
I called in originally looking to purchase a Rogue slide to replace our older model. The guy on the phone pointed out the Typhoon slide as a second choice. Should have been first choice! We love our new modern style slide. It looks terrific in our backyard.<br>
October 9, 2013
Rated 5 out of 5
The kids love it. The sandstone is the perfect color. I recommend Thai slide.
June 1, 2021
Purchased
6 months ago
RESOURCES
WARRANTY
S.R.Smith, LLC warrants to the original retail purchaser that products manufactured by S.R.Smith, when properly assembled and installed in accordance with S.R.Smith's assembly and installation instructions, and properly used and maintained, shall be free from defects in materials and workmanship for the warranty period of three (3) years from the date of retail purchase except for the following items set forth below:
  • Game Accessories (ball, pump, net): Ninety Days
  • WetDek: One Year
  • Resin Transfer Molded (RTM) Slides, Seats, Loungers, and Tables: One Year
  • Aquatic Lift System Frames (excluding the powder coated finish, which may become scratched with normal use): Five Years
  • Aquatic Lift System Electronic and Motor Components (excluding batteries): Two Years
  • Aquatic Lift batteries: One year prorated as follows: 100% of cost during the first ninety days of ownership and 50 percent of cost after ninety days and prior to expiration of one-year period. Normal maintenance and care of the unit, including charge of the battery when not in use is recommended.
Lighting Parts
Labor
LED Lighting - Mod-Lite, Micro, Kelo, Treo, Fiberglass, Color Light Stream
3-Years 1-Year
PoolLUX Controls- Power, Plus, Plus2, Premier
2-Years 1-Year
PT- Series
2-Years 1-Year
Wiretran Control
1-Year 1-Year
TX-30 Control
1-Year 1-Year
WPC Controls
1-Year 1-Year
Fiber Optic Illuminators - 6004 Series
3-Years 1-Year
Fiber Optic Cable
1-Year n/a
Water Features
1-Year n/a
To register your S.R.Smith product, visit the Product Registration page at: www.srsmith.com.

This information was updated on 10/07/19. For the most current information and full warranty policy please visit www.srsmith.com.
