Home … Pool Pool Lights SR Smith LED Lighting Kits S.R.Smith PoolLUX Plus2 Multi-Zone Wireless Lighting Control System with Remote | 120 Watt 120V Transformer | Includes 3 Mod-Lite Light Kit | 3ML-PLX-PL2

S.R.Smith PoolLUX Plus2 Multi-Zone Wireless Lighting Control System with Remote | 120 Watt 120V Transformer | Includes 3 Mod-Lite Light Kit | 3ML-PLX-PL2

Name: S.R.Smith PoolLUX Plus2 Multi-Zone Wireless Lighting Control System with Remote | 120 Watt 120V Transformer | Includes 3 Mod-Lite Light Kit | 3ML-PLX-PL2
Brand: S.R. Smith
SKU: 174183
Availability: InStock

This item has been discontinued.

S.R.Smith PoolLUX Plus2 Multi-Zone Wireless Lighting Control System with Remote | 120 Watt 120V Transformer | Includes 3 Mod-Lite Light Kit | 3ML-PLX-PL2

poolLUX Plus2 Transformer Kit

The new Mod-Lite from S.R.Smith with PowerPass Wireless technology offers a revolutionary new twist on LED pool lighting. poolLUX Plus2 Dual Transformer System with wireless control provides multi-zone power and lighting in one simple system.

Mod-Lite is a transformational LED lighting product that seamlessly blends modular design with wireless power to deliver unmatched flexibility, convenience, safety and savings. Discreet wireless power and lighting elements enable plug and play capabilities not found in any other lighting product.

PowerPass Wireless technology allows power to flow directly to the wireless LED lamp module, without a physical connection to power; making installation faster, safer and more efficient; replacement and winterization a snap.

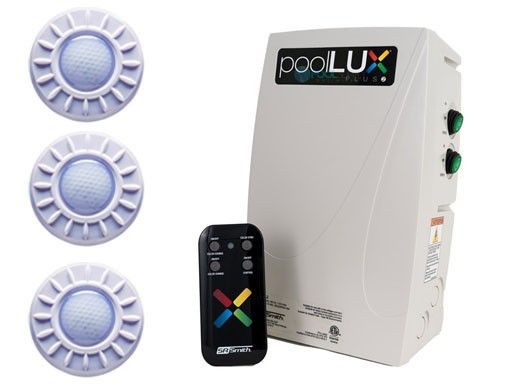

Kit Includes

poolLUX Plus2 Transformer 120W
Three Mod-Lite, 80' cord, RGB LED pool lights
Remote control

Mod-Lite Features:

12VAC energy efficient 7-Watt LED light for gunite, vinyl liner, and fiberglass pools and spas
Low profile wireless lamp
Simple installation and service
Sealed for maximum safety and reliability
Designed for use with standard 1.5" wall fittings and conduit down to 0.75"
Color functions:

12V controls: six colors (white, blue, green, red, amber, magenta), and two light shows (fast or slow)

Five colored trim plates in two different shapes (square and round) for a total of 10 options for maximum customization
ETL Listed - Conforms to UL676, certified to CSA C22.2 #89

poolLUX Plus2 Transformer Features:

Two 60W low voltage transformers
Independent or Synchronized control of each transformer
External Illuminated control switches for each transformer
Extended range (100' Line of Sight) Wireless remote with one-touch color sync for S.R.Smith LED lights -
S.R.Smith LED lights feature six colors and two shows
Compatible with other 12VAC power toggle LED lights
Oversized wiring space with convenient terminal strip connections
Internal self-resetting thermal fuse to protect against overheating conditions
Fast acting replaceable current fuse for safety enhancing short circuit protection
Accessible low voltage 12VAC and 13VAC wiring terminals for standard or extended wiring runs
Corrosion resistant (NEMA 3R) and sound dampening housing (quiet operation)
Four low-voltage and four line-voltage combination knockouts (3/4" or 1") plus two special use knockouts
ETL Listed – Conforms to UL 379 (Pool, Spa and Fountain Power Unit Standard)
Certified to CSA C22.2#218.1

Brand: S.R. Smith

REVIEWS

Q&A

S.R.Smith PoolLUX Plus2 Multi-Zone Wireless Lighting Control System with Remote | 120 Watt 120V Transformer | Includes 3 Mod-Lite Light Kit | 3ML-PLX-PL2

This item has been discontinued.

Options:

Includes 2 Treo Light

Includes 3 Treo Light

Transformer Only

Platinum Preferred Manufacturer

Product description

poolLUX Plus2 Transformer Kit

Kit Includes

poolLUX Plus2 Transformer 120W
Three Mod-Lite, 80' cord, RGB LED pool lights
Remote control

Mod-Lite Features:

12VAC energy efficient 7-Watt LED light for gunite, vinyl liner, and fiberglass pools and spas
Low profile wireless lamp
Simple installation and service
Sealed for maximum safety and reliability
Designed for use with standard 1.5" wall fittings and conduit down to 0.75"
Color functions:

12V controls: six colors (white, blue, green, red, amber, magenta), and two light shows (fast or slow)

Five colored trim plates in two different shapes (square and round) for a total of 10 options for maximum customization
ETL Listed - Conforms to UL676, certified to CSA C22.2 #89

poolLUX Plus2 Transformer Features:

Two 60W low voltage transformers
Independent or Synchronized control of each transformer
External Illuminated control switches for each transformer
Extended range (100' Line of Sight) Wireless remote with one-touch color sync for S.R.Smith LED lights -
S.R.Smith LED lights feature six colors and two shows
Compatible with other 12VAC power toggle LED lights
Oversized wiring space with convenient terminal strip connections
Internal self-resetting thermal fuse to protect against overheating conditions
Fast acting replaceable current fuse for safety enhancing short circuit protection
Accessible low voltage 12VAC and 13VAC wiring terminals for standard or extended wiring runs
Corrosion resistant (NEMA 3R) and sound dampening housing (quiet operation)
Four low-voltage and four line-voltage combination knockouts (3/4" or 1") plus two special use knockouts
ETL Listed – Conforms to UL 379 (Pool, Spa and Fountain Power Unit Standard)
Certified to CSA C22.2#218.1

Features and details

Resources

Warranty

S.R.Smith, LLC warrants to the original retail purchaser that products manufactured by S.R.Smith, when properly assembled and installed in accordance with S.R.Smith's assembly and installation instructions, and properly used and maintained, shall be free from defects in materials and workmanship for the warranty period of three (3) years from the date of retail purchase except for the following items set forth below:

Game Accessories (ball, pump, net): Ninety Days
WetDek: One Year
Resin Transfer Molded (RTM) Slides, Seats, Loungers, and Tables: One Year
Aquatic Lift System Frames (excluding the powder coated finish, which may become scratched with normal use): Five Years
Aquatic Lift System Electronic and Motor Components (excluding batteries): Two Years
Aquatic Lift batteries: One year prorated as follows: 100% of cost during the first ninety days of ownership and 50 percent of cost after ninety days and prior to expiration of one-year period. Normal maintenance and care of the unit, including charge of the battery when not in use is recommended.
Lighting: See below
Pool Cover Rewinders - Frames: Five Years
Pool Cover Rewinders - Electric and Motor Components: Two Years
Thermal Pool Covers: See documents

Lighting Parts
Labor

LED Lighting - Mod-Lite, Micro, Kelo, Treo, Fiberglass, Color Light Stream
3-Years 1-Year

PoolLUX Controls- Power, Plus, Plus2, Premier
2-Years 1-Year

PT- Series
2-Years 1-Year

Wiretran Control
1-Year 1-Year

TX-30 Control
1-Year 1-Year

WPC Controls
1-Year 1-Year

Fiber Optic Illuminators - 6004 Series
3-Years 1-Year

Fiber Optic Cable
1-Year n/a

Water Features
1-Year n/a

To register your S.R.Smith product, visit the Product Registration page at: www.srsmith.com.

This information was updated on 11/07/23. For the most current information and full warranty policy please visit www.srsmith.com.
