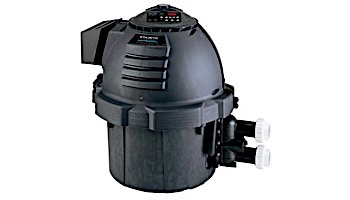

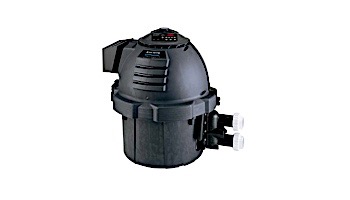

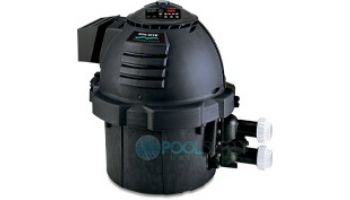

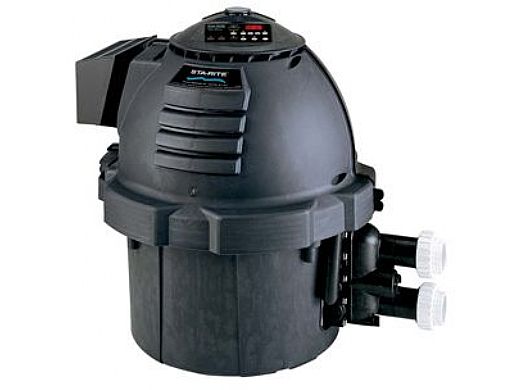

Sta-Rite Max-E-Therm Low NOx Pool Heater | Electronic Ignition | Digital Display | Natural Gas | 200,000 BTU | SR200NA

Sta-Rite Max-E-Therm Low NOx Pool Heater | Electronic Ignition | Digital Display | Natural Gas | 200,000 BTU | SR200NA Sta-Rite Max-E-Therm Low NOx Pool Heater | Electronic Ignition | Digital Display | Natural Gas | 200,000 BTU | SR200NA Sta-Rite Max-E-Therm Low NOx Pool Heater | Electronic Ignition | Digital Display | Natural Gas | 200,000 BTU | SR200NA Sta-Rite Max-E-Therm Low NOx Pool Heater | Electronic Ignition | Digital Display | Natural Gas | 200,000 BTU | SR200NA Sta-Rite Max-E-Therm Low NOx Pool Heater | Electronic Ignition | Digital Display | Natural Gas | 200,000 BTU | SR200NA
Customer Login Required
Please login to view price and order or click here to register.


Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Lower Operating Costs - 84% efficiency rating - rated 1st in its class for highest energy efficiency
  • Environmentally Friendly - All units are low NOx
  • Compact Design - Ideal for retro-fit installation
RELATED ITEMS
  • Pentair Sta-Rite 4x6 Metal Flue Collar for Indoor Vertical Venting - Negative Pressure for Distance Less Than 8' | 77707-0076
    Indoor Vertical Venting - Negative Pressure 4x6 Metal Flue Collar for Distances Less Than 8' | 77707-0076

    $129.22
  • Pentair Sta-Rite 4x8 Metal Flue Collar for Indoor Vertical Venting - Negative Pressure for Distances Over 8' | 77707-0077
    Indoor Vertical Venting - Negative Pressure 4x8 Metal Flue Collar for Distances Over 8' | 77707-0077

    $128.97
  • Pentair 4" Stainless Steel Appliance Adapter for Horizontal or Vertical Positive Pressure by Heatfab | 77707-0086
    4" Appliance Adapter Horizontal or Vertical Venting, Positive Pressure by Heatfab | 77707-0086

    $132.24
  • Pentair 4" Stainless Steel Appliance Adapter for Horizontal or Vertical Positive Pressure Venting by Z-Flex | 77707-0087
    4" Appliance Adapter for Horizontal or Vertical Positive Pressure Venting by Z-Flex | 77707-0087

    $141.37
OVERVIEW
For indoor or outdoor installations on pools and spas. Features include an LED temperature readout with dual thermostat controls, temperature safety lockout, and 6-position control panel. PMG burner technology requires no outdoor draft hood. Proven Dura-Glas rust-proof construction with plastic manifold and PVC union connections. Heavy-duty units (HD Models) with cupro-nickel exchangers stand up to the harshest of applications, like low pH, high flow or heavy use.

An "Eco Select" Brand: Max-E-Therm® high performance heaters offer best-in-class energy efficiency. Plus, they are certified for low NOx emissions, making them eco-friendly favorites.

Sure, a beautiful pool looks inviting, but its cold water can keep you high and dry. Which is why it pays to have a Max-E-Therm® heater. After all, when the water's just right, you maximize the enjoyment of your pool experience. The fast-heating Max-E-Therm makes your pool irresistible on cool nights. It also allows you to extend your pool season. Unlike other heaters, Max-E-Therm offers you the latest advances from Sta-Rite®: a rustproof exterior, smart electronics and increased energy efficiency. Whether you're looking for quiet relaxation or wild fun, you'll always enjoy your pool in the warm comfort of Max-E-Therm.


Features:
  • Lightweight - Lightest heater in its class
  • Compact Design - Ideal for retro-fit installation
  • Easy to Switch - Change gas sources with installation of separate orifice
  • Environmentally Friendly - All units are low NOx
  • Rustproof Housing Sleek, matte black enclosure is made of Dura-Glas - an exclusive Sta-Rite material that handles the heat and weathers the elements
  • Lower Operating Costs - 84% efficiency rating - rated 1st in its class for highest energy efficiency
  • Custom or Retrofit - Direct-connects to Sta-Rite System:3® Mod Media filter or easily fits other systems
  • High efficiency rating makes the Max-E-Therm extremely economical to operate
  • Specially designed fueling and ignition process permits faster warming of your pool and spa
  • Easy-to-read, conveniently positioned control panel is simple to program
  • Dura-Glas„ housing will not corrode and stands tough against harsh weather
  • If you want that warm-all-over feeling, choose the Sta-Rite Max-E-Therm heater. It's a better choice for a host of reasons
  • Self diagnostics - Control panel indicator lights pinpoint heater or system conditions, which can save money through faster troubleshooting (if required)


Brand: Pentair
SPECIFICATIONS
BTU Rating
200K
Gas Type
Natural Gas
Location
Indoor/Outdoor
Elevation
0-9000'
Ignition
Electronic
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 21 questions Browse 21 questions and 20 answers
What size water connection is the 200k btu unit have ?
A shopper on May 11, 2016
BEST ANSWER: 2 inch
I'm replacing a 15 year old Sta Rite Max-E-Therm pool heater. I live in San Diego and would like to know if the Low NOx heater meets all the applicable California regulations. Also, I was wondering if this new heater is a "plug and play" for my present heater (i.e. no repiping, etc.)? Thank you.
Matthew O on Jun 8, 2016
BEST ANSWER: It is an easy replacement procedure, it lines up exactly with the old connections.The heater is very efficient and faster heating the water than the old one. I hop this helps, I am very pleased with the product and service from Pool Supply.
Does this unit come with the propane orfice? If not, how much does that cost?
Johnn on Mar 22, 2016
I have a StaRite MaxE Therm 400 that has died. I only heat the hot tub, not the pool. Do I need to replace with the 400 or can I go to a 200? thanx!
h w on Apr 24, 2019
BEST ANSWER: Replacing with same unit simplifies the installation. Becomes a two hour job, no replumbing and assures you of original result. That’s what I did and worked great.
is this heater vented?
terry e on Dec 5, 2017
BEST ANSWER: Heater is not vented. I bought it because I was replacing same brand that lasted 12 years. Same connections and therefore. installed in 30 minutes. Works great.
where can i get the heater repaired?
A shopper on May 12, 2017
BEST ANSWER: Depends on the problem I guess. Most pool service companies will tell you if they can handle it or not.
They are not complicated pieces of equipment.
Mine stopped working because mice lived there in the winter. Not good.
Ate wiring everywhere. Wiring insulation for several years was made of soy and mice loved it.
Fortunately it is all color coded so I was able to reconnect. After the third time I gave up. By that time it was 10 years old and deteriorating inside the heating area.

I ended up buying the EXACT same unit on-line to minimize the replacement installation cost.
Took 30 minutes to replace and works perfectly again.
The mice are probably happy too.
went outside and the heater is running no controls turned on blowing cool air out the exhaust is this normal ?
jerome c on Aug 16, 2018
BEST ANSWER: Not sure. May be best to call the company. They would know right away.
is it possible to lock the operating controls? My pool heater is accessible for anyone and I need to be able to restrict operation.
A shopper on Feb 12, 2018
BEST ANSWER: Not sure. Check with mfg. i dont think so.
What needs to be fixed if leaking from the bottom?
Tdyrness on Aug 27, 2017
BEST ANSWER: Disconnect and remove Heater from systems. (Not as hard as it looks) Also make sure the input and output connections are tight. The water is under pressure. Does it leak when the filter is running only.
You need to get underneath and check all the fittings. Retighten as needed. If it is a new heater that may be all that is needed. If it is old then be careful. You can also leave things connected and remove the covers and snoop around with a flashlight looking for wet spots or leaks.This is probably what you want to do first.
Heaters are not that complicated if you are afraid to investigate yourself.
Can this be used on an above ground pool?
liz M on Apr 19, 2017
BEST ANSWER: Yes.
Just bought a house with a hot tub.
Inherited a Sta-rite heater.
The push buttons to turn it on and get it working do not work.
Is this a mother board problem?
Rick P on Dec 30, 2016
BEST ANSWER: Are you getting power to it? If not, I'd check the circuit breakers for it first, before going inside the unit. If you're getting power (display lights but nothing else) you'll need to get inside.

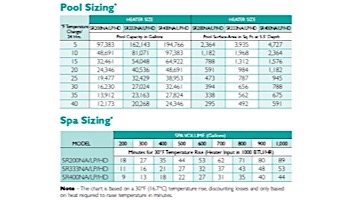

what size heater for 18000 gallon in ground pool ?
A shopper on May 16, 2016
BEST ANSWER: I would recommend a minimum of 200,000BTU.
need codes for heater when it will not come on?????????/
Bill C on Mar 21, 2016
BEST ANSWER: I have never experienced this problem. Works great for us.
how much gas pressure do you need at the heater?
winston h on Oct 13, 2015
BEST ANSWER: Between 2-5 psi
how do i start the heater for the very first time?
fred c on May 24, 2019
how do i start the heater for the first time?
fred c on May 24, 2019
I would like to install this heater myself. Is the propane attachments come with the heater and I have 120 vac, how is the electrical end of things work?
Dave S on Jun 5, 2018
lights came on but heater doesn't come on and also I can't turn off now?
Jerry M on Jan 11, 2017
new Max-E-Therm SR400NA unit--installer can't get it to work-service system light on-is installed 3' below pool level--they refuse to think the pressure needs adjusting like manual says....claiming it's a defective unit......help????
purplegolfchic on Jun 2, 2016
new Max-E-Therm SR400NA unit--installer can't get it to work-service system light on-is installed 3' below pool level--they refuse to think the pressure needs adjusting like manual says....claiming it's a defective unit......help????
purplegolfchic on Jun 2, 2016
What does Service System mean?
ed c on May 26, 2016
REVIEWS
4.6 / 5.0
5 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
2
0
0
0
Rated 5 out of 5
Happy
Very easy to install and operate. Definitely heats pool quickly and holds heat as well. Best price I could find! Customer service can't be beat!
April 9, 2014
Rated 5 out of 5
Simple install.
Replaced a Sta-Rite pool heater that was 15 years old. Bought same model and installed in less than an hour. Now it is me against the mice again.
June 23, 2017
Purchased
over 4 years ago
Rated 5 out of 5
Great Pool Heater
I just got this heater installed and so far it is everything I expected and more. I am very happy with my purchase. Has worked great.<br>
April 6, 2017
Rated 4 out of 5
The price was best we could find online.
We were skeptical about shipping time but was a quick turn around
Thank you
May 30, 2020
Purchased
1 year ago
Rated 4 out of 5
works great. shipped timely. company employees were very helpful
August 26, 2016
Purchased
over 5 years ago
RESOURCES
Adobe Acrobat PDF Brochure
Adobe Acrobat PDF Eco-Friendly Brochure
Adobe Acrobat PDF Owners Manual

Register your Pentair product online at www.pentair.com.

WARRANTY
  • LIMITED WARRANTY: Pentair warrants its products to be free from defects in material and/or workmanship for a period of sixty (60) days (parts only) from the original date of purchase and/or installation. Customer agrees to prepay all shipping charges to Pentair.
  • EXTENDED WARRANTY: To receive a product extended warranty (longer than 60 days from the original date of installation), customer must:
  1. Register the product;
  2. Provide a copy of the sales receipt; and
  3. Provide a copy of the installation invoice, provided by the qualified installer, within 60 days of installation (if required). Certain products do not require qualified installation but still require product registration and copy of the sales receipt to receive the extended warranty.
  • TRADEGRADE WARRANTY: TradeGrade products must be purchased from a retail store (brick and mortar), pool builder or pool service company. If purchased online (via internet) the product will only receive a sixty (60) day limited warranty. View the list of TradeGrade products here.
  • ECOMMERCE (EC) WARRANTY: Products purchased from an Authorized Pentair Online Reseller receive a one (1) year (parts only) warranty from the date of purchase. The exceptions are: IntelliChlor cells and IntelliFlo SVRS pumps which receive a two (2) year warranty. EC products are not eligible for the bundled three (3) year extended warranty. To receive an eCommerce warranty, customer must:
  1. Register the product, and
  2. Provide a copy of the sales receipt

Visit www.pentair.com to submit your product warranty registration.

This information was updated on 04/05/2021. For the most current information and full warranty policy please visit www.pentair.com/warranty.


 Adobe Acrobat PDF Warranty Information
