Home Waterco SM500 20" Micron Side Mount Filter SM Series Residential | 1.5" Multiport Valve Included | 220008204A

Waterco SM500 20" Micron Side Mount Filter SM Series Residential | 1.5" Multiport Valve Included | 220008204A

This item has been discontinued.
Waterco SM500 20" Micron Side Mount Filter SM Series Residential | 1.5" Multiport Valve Included | 220008204A
Waterco SM500 20" Micron Side Mount Filter SM Series Residential | 1.5" Multiport Valve Included | 220008204A
Waterco SM500 20" Micron Side Mount Filter SM Series Residential | 1.5" Multiport Valve Included | 220008204A
Waterco SM500 20" Micron Side Mount Filter SM Series Residential | 1.5" Multiport Valve Included | 220008204A
Waterco SM500 20" Micron Side Mount Filter SM Series Residential | 1.5" Multiport Valve Included | 220008204A

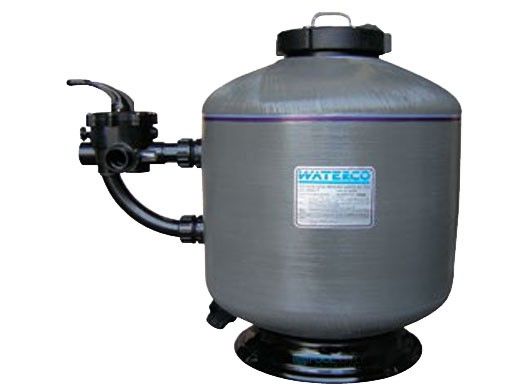

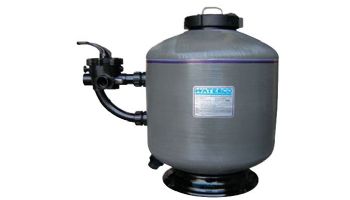

Micron Side Mount SM500 with Multiport Valve - Series Residential Filter

Waterco fiberglass filters embody the latest in fiberglass winding technology. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of fiberglass filament to create a strong filter vessel with refined consistency and superior quality.

Features:
  • Clear lid
  • Manual air bleed
  • Fiberglass wound tank

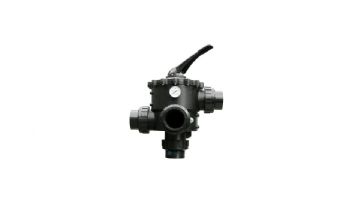

  • 1.5" Multiport valve included with quick connect barrel unions
  • Quick disconnect tank unions
  • Suitable for fresh and salt water pools

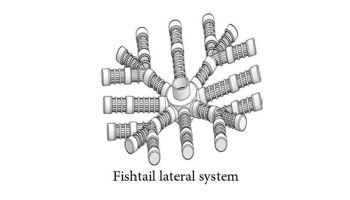

  • Hydraulically balanced laterals to maximise water flow and filtration
  • Waterco shows its ultimate confidence in its range of Micron Side Mount S Filters
Proven Durability
Waterco fibreglass filters are perfectly suited to the constant increases and decreases in pressure experienced by sand filters. Accelerated cyclic testing has shown that even after simulating 20 years of use, Waterco fibreglass filters withstood cyclic wear and tear better than most other filters in its class.

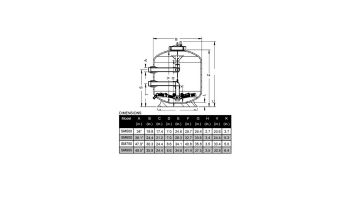

Specifications:
Model Valve Size
(in.)
Bed Depth
(in.)
Inner Dia.
(in.)
Filter Area
(sq ft)
Max Flow
(gpm)
Max Pool Size
(gal.)
Backwash Flow
Rate
(gpm)
Media Volume
(gal.)
Glass Pearl
0.6-0.8
(lb)
SM500 1.5 13 19.7 2.12 51 14,900 39.3 23.5 240
SM600 1.5 13.8 23.6 3.05 59 21,500 49.9 29.38 403
SM750 2 15 29.6 4.76 93.2 33,600 77.9 51.5 694

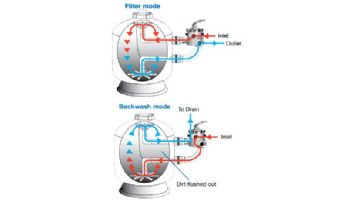

Easy Maintenance
Cleansing the filter simply requires turning the Multiport lever from the 'filter' position to the 'backwash' position.



REVIEWS
Q&A
PARTS

Waterco SM500 20" Micron Side Mount Filter SM Series Residential | 1.5" Multiport Valve Included | 220008204A

This item has been discontinued.
Platinum Preferred Manufacturer
Suitable alternative(s)
Waterco Micron SM500 20" Side Mount Sand Filter | 8" Neck - 1.5" Connect | 2.12 Sq. Ft. 42 GPM | 220008204NA
Waterco Micron SM500 20" Side Mount Sand Filter | 8" Neck - 1.5" Connect | 2.12 Sq. Ft. 42 GPM | 220008204NA

$450.98
Waterco Multiport Valve Kit 1.5" for Side Mounted Sand Filters | 1.5" Filter Connections | 2290492P | 2290492
Waterco Multiport Valve Kit 1.5" for Side Mounted Sand Filters | 1.5" Filter Connections | 2290492

$205.40
