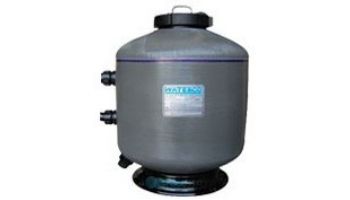

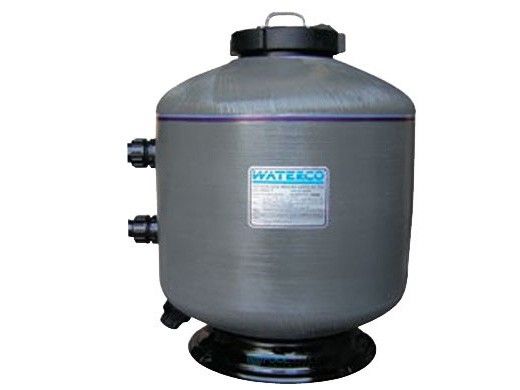

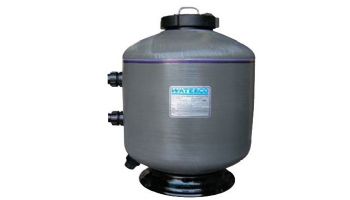

Waterco Micron SM500 20" Side Mount Sand Filter | 8" Neck - 1.5" Connect | 2.12 Sq. Ft. 42 GPM | 220008204NA

$452.26

Waterco Micron fiberglass filters embody the latest in fiberglass winding technology. The Micron Series filters are constructed from anti-corrosive, non-toxic materials and are engineered to withstand the high flow and pressures of today's pool and industrial systems. With the reinforced neck ring and solid lid closure this filter is the best fit for today's most demanding projects.

Features

Fiberglass wound tank
Suitable for fresh and salt water pools
8" locking ring
Clear lid
Manual air bleed
Quick disconnect tank unions
Hydraulically balanced laterals to maximize water flow and filtration
1.5" Multiport Valve, reducing water flow resistance (sold separately)

Filament Wound Construction

Micron fiberglass filters embody the latest in fiberglass winding technology. Micron fiberglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fiberglass filament. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

Proven Durability

Waterco fiberglass filters are perfectly suited to the constant increases and decreases in pressure experienced by sand filters. Accelerated cyclic testing has shown that even after simulating 20 years of use, Waterco fiberglass filters withstood cyclic wear and tear better than most other filters in its class.

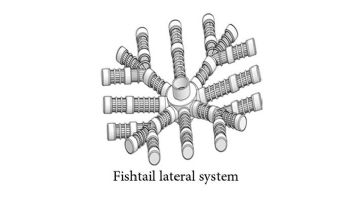

Water Saving "Fish Tail" laterals

Filament Wound filters are equipped with "Fish Tail" laterals, to improve its filtration and backwashing hydraulic.

Fish Tail laterals provide effective coverage of the filter bed and balanced water flow, during backwashing.

Filament wound filters backwash time is significantly reduced, leading to a 30% savings of backwash water.

Energy Saving "Fish Tail" laterals

The Filament Wound Filters hydraulic efficiency halves the backwash flow rate of a conventional sand filter, allowing the option for low powered, energy efficient pumps for filtration flow and backwash flow.

Easy Maintenance

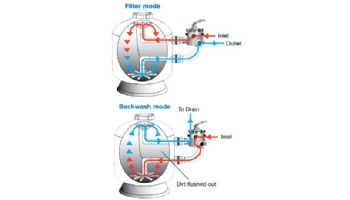

Cleansing the filter simply requires turning the multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.

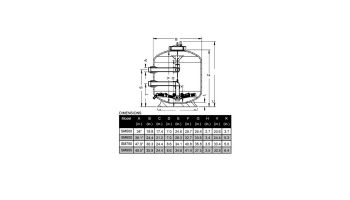

Specifications:

Model	Valve Size (in.)	Bed Depth (in.)	Inner Dia. (in.)	Filter Area (sq ft)	Max Flow (gpm)	Max Pool Size (gal.)	Backwash Flow Rate (gpm)	Media Volume (Cubic Ft.)	Sand 16/30 0.6-12 (lb)	Glass Pearl 0.6-0.8 (lb)	Zeoplus 1-2.2 (lb)
SM500	1.5	11.4	19.7	2.12	42	15,200	32-42	2.3	225	240	163.14
SM600	2	14.2	23.6	3.05	61	21,900	46-61	4	400	450	253.53
SM750	2	15.7	29.6	4.76	96	34,200	71-95	6.9	700	750	381.4
SM900	2	17.3	35.5	7.01	140	50,500	103-140	10.6	1,050	1,175	840

Flow rate is limited by the port size, max flow for 48m3 / hr / m2. Max. pool size is based on a 6hr turnover.

REVIEWS

Q&A

PARTS

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

Browse 1 question Browse 1 question and 1 answer

How much sand is required for the d500 How much sound in the D 500?

A shopper on May 12, 2021

BEST ANSWER: 225lbs sand is required

Reply
Inaccurate
Sydney R Staff on Mar 15, 2023

Waterco Micron SM500 20" Side Mount Sand Filter | 8" Neck - 1.5" Connect | 2.12 Sq. Ft. 42 GPM | 220008204NA

$452.26

Quantity

Parts Available

Platinum Preferred Manufacturer

Purchase options

Related items

Waterco Multiport Valve Kit 1.5" for Side Mounted Sand Filters | 1.5" Filter Connections | 2290492

$215.66

Product description

Features

Fiberglass wound tank
Suitable for fresh and salt water pools
8" locking ring
Clear lid
Manual air bleed
Quick disconnect tank unions
Hydraulically balanced laterals to maximize water flow and filtration
1.5" Multiport Valve, reducing water flow resistance (sold separately)

Filament Wound Construction

Proven Durability

Water Saving "Fish Tail" laterals

Filament Wound filters are equipped with "Fish Tail" laterals, to improve its filtration and backwashing hydraulic.

Fish Tail laterals provide effective coverage of the filter bed and balanced water flow, during backwashing.

Filament wound filters backwash time is significantly reduced, leading to a 30% savings of backwash water.

Energy Saving "Fish Tail" laterals

Easy Maintenance

Cleansing the filter simply requires turning the multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.

Specifications:

Model	Valve Size (in.)	Bed Depth (in.)	Inner Dia. (in.)	Filter Area (sq ft)	Max Flow (gpm)	Max Pool Size (gal.)	Backwash Flow Rate (gpm)	Media Volume (Cubic Ft.)	Sand 16/30 0.6-12 (lb)	Glass Pearl 0.6-0.8 (lb)	Zeoplus 1-2.2 (lb)
SM500	1.5	11.4	19.7	2.12	42	15,200	32-42	2.3	225	240	163.14
SM600	2	14.2	23.6	3.05	61	21,900	46-61	4	400	450	253.53
SM750	2	15.7	29.6	4.76	96	34,200	71-95	6.9	700	750	381.4
SM900	2	17.3	35.5	7.01	140	50,500	103-140	10.6	1,050	1,175	840

Flow rate is limited by the port size, max flow for 48m3 / hr / m2. Max. pool size is based on a 6hr turnover.

Features and details

Specifications

Resources

Warranty

SCHEDULE OF PARTS WARRANTY PERIODS

All products sold by Waterco are covered by a one year warranty with the exception of the products listed below.

Product	Full Warranty
PUMPS	1 Years
• Variable Speed Pumps	3 Years
FILTER
• Thermoplastic filter tank / Exotuf filter tank	2 Years
• Filament Wound	10 Years
•Trimline / Bag filter tank	5 Years
• DE / Tri-Cartridge filter	2 Years
• MultiCyclone, Plus / Ultra / XL	2 Years
*Except: All internal parts including fittings, valves, gauges, cartridge elements, DE grids.	1 Year
All multiport valves	2 Year

Commercial Applications: All products installed in a commercial application are covered by a one year warranty except commercial filament wound tanks

Product	Full Warranty
Comercial filament wound tanks	10 Years
Parts and Internals	1 Year
Commercial Pumps	1 Year

SUMMARY OF WARRANTY LIMITATIONS

The provisions of this warranty are not transferable from the original purchaser and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.

Spare parts used in the repair of products are covered by a 12 month warranty and are not covered by the original warranty from date of purchase or installation.

The purchaser is responsible for any freight incurred. *** See Warranty Booklet for Full Terms & Conditions of Warranty ***

This warranty does not cover any failure in service caused by improper installation, or improper operation as a result of noncompliance with the maintenance and installation manual. Nor is any failure as a result of fire, wreckage, freezing, willful abuse, improper repackaging or damage incurred in transportation. Warranty will also not cover consequential damage resulting from any failure in service. Faulty parts will be replaced free of charge, after inspection by our Quality Control Department.

See attached warranty document for full warranty, including conditions, exclusions and pro-rata warranty terms.

This information was updated on 9/3/24. For the most current information and full warranty policy please visit www.waterco.us.
