Superior Strength and Dependability

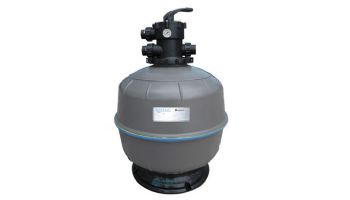

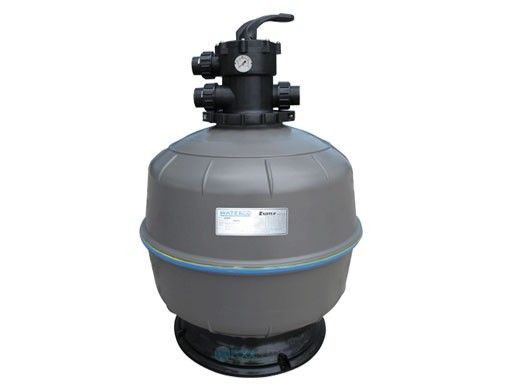

Designed to cope with the cyclic pressures of the modern day swimming pool, Exotuf filter vessels are precision injection molded for superior strength and dependability. Exotuf filters are ideal for pools equipped with in floor cleaning systems and high
powered pumps.Exotuf filters are available in three sizes, E400, E500, E600. Pressure rated at 250kPa (E400) and 350 kPa (E500, E600), considered one of the strongest filters within its class.
- Multiport valve with ergonimic hangle and quick connect barrel unions
- Valve unions sold separately
- Clear sight glass for backwash inspection
- Pressure gauge to determine the filter's capacity
- Multiport valve clamp provides 360 °C orientation of the multiport valve for simple installation and service
- Granular media filtration
- Pressure rated at 250 kPa
- Corrosion and UV resistant

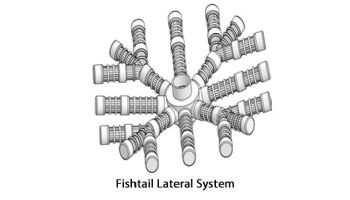

- Hydraulic balanced flow distribution, to maximize filtration and backwashing
- Large filter base for stable floor mounting
- Maximum working temperature of 50 °C
Multiport Valve - Heavy Duty Construction
Constructed from heavy duty ABS and GFPP, Waterco Multiport valves are designed for high performance and working pressures. Waterco's entire range of Multiport valves are engineered to withstand a working pressure of up to 400 kPa (58 psi) with a test pressure of 600 kPa (87 psi).
Exotuf filters are considered one of the strongest filters within its class. Its filter vessel is precision injection molded within minimal tolerances for enhanced structural strength. Pressure rated at 250 kPa, Exotuf filters are ideal for pools equipped with in floor cleaning systems and high powered pumps.
Ease of Maintenance

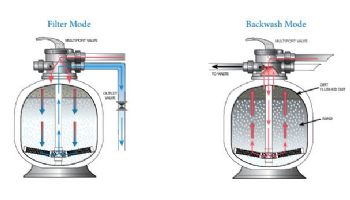

Cleansing the filter simply requires turning the filter's multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.
|Max Pool Size
Residential flow rate based on a velocity of 48 m3 / hr / m2. Max. pool size is based on a 6 hr turnover.
