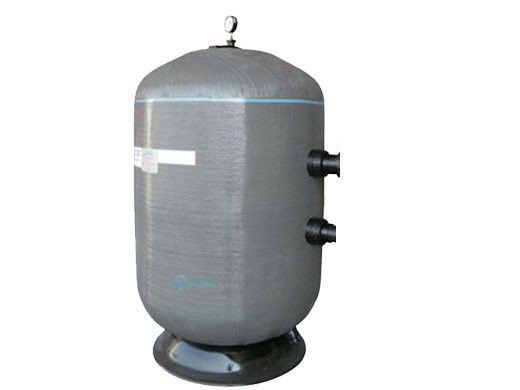

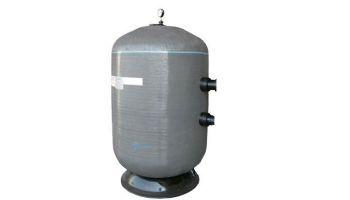

Waterco Micron SMD1800 71" Commercial Side Mount Deep Bed Sand Filter | 6" Flange Connections 102 PSI | 27.50 Sq. Ft. 275 GPM | 22501807154NA | 30501807154NA

$15,019.41

The effect of deep media bed improves the filtration efficiency over standard High-rate filters by providing enhanced in-depth filtration and increased dirt capacity. In addition, the greater bed depth permits efficient use of mixed bed filter media and water treatment media such as granular activated carbon. The filter's 1000mm (39") media bed ensures that finer dirt particles and colloidal substances are retained to a far greater level than a filter with a shallower bed depth.

Features

Fiberglass wound tank, UV and corrosion resistant
Hydraulically balanced laterals to maximize water flow and filtration
Optional six position Multi-port valve with sight glass and quick connect half unions (sold separately)
Working pressure 250 kPa (36 psi)
Extra reinforcement to increase the working pressure rating to 400 kPa (58 psi) is available on request
Maximum working temperature of 50 C degrees (122 F degrees)
Optional sight glasses and lateral man holes
Optional fiberglass reinforced vinyl ester for improved chemical resistance
6" flange connections

Filament Wound Construction

Micron fiberglass filters embody the latest in fiberglass winding technology. Micron fiberglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fiberglass filament. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

Why fiberglass instead of steel?

Using non metallic components fiberglass pressure tanks are rapidly replacing steel tanks in numerous applications. Fiberglass vessels offer several advantages in comparison with steel vessels.

Waterco's quality control procedures ensure that the structural requisites of the product are achieved at every stage of production. This results in a 100% compliance of the end product with the specifications.
The design and the manufacturing process of the whole vessel, utilizing the latest filament winding machines, incorporation of non metallic fittings plus reinforced manhole openings with proprietary methods, is unique to Waterco.
Fiberglass vessels weigh only 1/3 the weight of steel vessels while maintaining the same level of strength. Their weight makes them easier to ship to the job site and easier to install.
Once installed there are virtually no maintenance or repairs required. Steel vessels require the anti-corrosive coating to be maintained periodically and certified welders to make repairs to the lining with expensive epoxy coating.

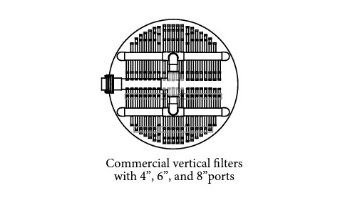

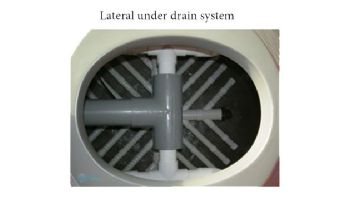

Micron "Fish Tail' Laterals

Conventional laterals are not suitable for larger sized commercial filters. "Dead legs" exist between the laterals and water flow is not optimised through the filter bed. Waterco's "Fish Tail" lateral configuration eliminates any "dead legs" by improving water flow distribution through the filter bed.

Easy Reach Air Release System

Waterco are the first to introduce the benefits of the "easy reach" air bleed system for commercial filters. Located directly under the sight glass, a valve may be fitted to the tank, which is connected directly to an internal air bleed system allowing any air to be simply bleed from the filter without the need to manually bleed the air from filter lid or to use additional plumbing.

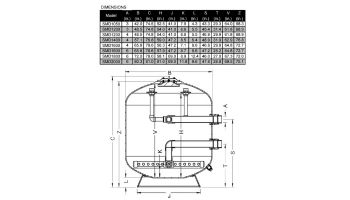

Specifications:

Model	Port Size (in)	Bed Depth (in)	Inner Dia. (in)	Filter Area (sq ft)	Flow Rates gpm/sq ft 5 10 15 20				Media Volume (gallons)	Gravel 1.2-2.4 (lbs)	Sand 0.6-1.2 (lbs)
SMD1050	3.0	39.40	42	9.62	48	96	144	192	254	450	2,950
SMD1200	3.0	39.40	47.3	12.56	63	126	188	251	322	400	3,900
SMD1200	4.0	39.40	47.3	12.56	63	126	188	251	310	250	3,900
SMD1400	4.0	39.40	55.2	16.49	82	165	247	330	434	500	5,300
SMD1600	4.0	39.40	63	21.64	108	216	325	433	554	450	6,950
SMD1600	6.0	39.40	63	21.64	108	216	325	433	561	700	6,800
SMD1800	6.0	39.40	70.86	27.50	138	275	413	550	767	1,600	8,650
SMD2000	6.0	39.40	78.8	34.00	170	340	510	680	920	1,550	10,750

REVIEWS

Q&A

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

No questions have been asked about this item. Be the first!

Waterco Micron SMD1800 71" Commercial Side Mount Deep Bed Sand Filter | 6" Flange Connections 102 PSI | 27.50 Sq. Ft. 275 GPM | 22501807154NA | 30501807154NA

$15,019.41

Quantity

Platinum Preferred Manufacturer

Product description

Features

Fiberglass wound tank, UV and corrosion resistant
Hydraulically balanced laterals to maximize water flow and filtration
Optional six position Multi-port valve with sight glass and quick connect half unions (sold separately)
Working pressure 250 kPa (36 psi)
Extra reinforcement to increase the working pressure rating to 400 kPa (58 psi) is available on request
Maximum working temperature of 50 C degrees (122 F degrees)
Optional sight glasses and lateral man holes
Optional fiberglass reinforced vinyl ester for improved chemical resistance
6" flange connections

Filament Wound Construction

Why fiberglass instead of steel?

Using non metallic components fiberglass pressure tanks are rapidly replacing steel tanks in numerous applications. Fiberglass vessels offer several advantages in comparison with steel vessels.

Waterco's quality control procedures ensure that the structural requisites of the product are achieved at every stage of production. This results in a 100% compliance of the end product with the specifications.
The design and the manufacturing process of the whole vessel, utilizing the latest filament winding machines, incorporation of non metallic fittings plus reinforced manhole openings with proprietary methods, is unique to Waterco.
Fiberglass vessels weigh only 1/3 the weight of steel vessels while maintaining the same level of strength. Their weight makes them easier to ship to the job site and easier to install.
Once installed there are virtually no maintenance or repairs required. Steel vessels require the anti-corrosive coating to be maintained periodically and certified welders to make repairs to the lining with expensive epoxy coating.

Micron "Fish Tail' Laterals

Easy Reach Air Release System

Specifications:

Model	Port Size (in)	Bed Depth (in)	Inner Dia. (in)	Filter Area (sq ft)	Flow Rates gpm/sq ft 5 10 15 20				Media Volume (gallons)	Gravel 1.2-2.4 (lbs)	Sand 0.6-1.2 (lbs)
SMD1050	3.0	39.40	42	9.62	48	96	144	192	254	450	2,950
SMD1200	3.0	39.40	47.3	12.56	63	126	188	251	322	400	3,900
SMD1200	4.0	39.40	47.3	12.56	63	126	188	251	310	250	3,900
SMD1400	4.0	39.40	55.2	16.49	82	165	247	330	434	500	5,300
SMD1600	4.0	39.40	63	21.64	108	216	325	433	554	450	6,950
SMD1600	6.0	39.40	63	21.64	108	216	325	433	561	700	6,800
SMD1800	6.0	39.40	70.86	27.50	138	275	413	550	767	1,600	8,650
SMD2000	6.0	39.40	78.8	34.00	170	340	510	680	920	1,550	10,750

Features and details

Specifications

Resources

Warranty

SCHEDULE OF PARTS WARRANTY PERIODS

All products sold by Waterco are covered by a one year warranty with the exception of the products listed below.

Product	Full Warranty
PUMPS	1 Years
• Variable Speed Pumps	3 Years
FILTER
• Thermoplastic filter tank / Exotuf filter tank	2 Years
• Filament Wound	10 Years
•Trimline / Bag filter tank	5 Years
• DE / Tri-Cartridge filter	2 Years
• MultiCyclone, Plus / Ultra / XL	2 Years
*Except: All internal parts including fittings, valves, gauges, cartridge elements, DE grids.	1 Year
All multiport valves	2 Year

Commercial Applications: All products installed in a commercial application are covered by a one year warranty except commercial filament wound tanks

Product	Full Warranty
Comercial filament wound tanks	10 Years
Parts and Internals	1 Year
Commercial Pumps	1 Year

SUMMARY OF WARRANTY LIMITATIONS

The provisions of this warranty are not transferable from the original purchaser and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.

Spare parts used in the repair of products are covered by a 12 month warranty and are not covered by the original warranty from date of purchase or installation.

The purchaser is responsible for any freight incurred. *** See Warranty Booklet for Full Terms & Conditions of Warranty ***

This warranty does not cover any failure in service caused by improper installation, or improper operation as a result of noncompliance with the maintenance and installation manual. Nor is any failure as a result of fire, wreckage, freezing, willful abuse, improper repackaging or damage incurred in transportation. Warranty will also not cover consequential damage resulting from any failure in service. Faulty parts will be replaced free of charge, after inspection by our Quality Control Department.

See attached warranty document for full warranty, including conditions, exclusions and pro-rata warranty terms.

This information was updated on 9/3/24. For the most current information and full warranty policy please visit www.waterco.us.
