Home Jandy Square Flange Pool & Spa Motor | 1HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479311

Jandy Square Flange Pool & Spa Motor | 1HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479311

This item is no longer available.

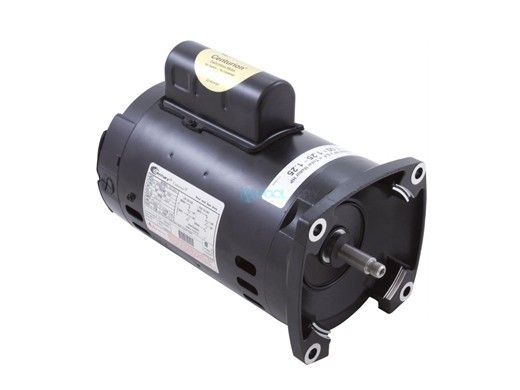

Jandy Square Flange Pool & Spa Motor | 1HP Up-Rated | 56Y Frame Standard Efficiency | 115/230V | R0479311
Single Speed Motor & Hardware for Jandy 1HP Pumps

For use with: Jandy® Pro Series PlusHP PHPM1.0, FloPro™ FHPM1.0, WaterFeature Series WFTR80 1.0 HP & MaxHP Series MHPM 1.0 HP Pump

Specifications:
Type Standard Efficient
Rating Up-Rated
Speed Single
Frame Size/Diameter 56Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 115/230
Frequency 60Hz
Amps 7.1/14.2
HP 1
Service Factor 1.25
THP 1.25
RPM 3450
Shaft Type Threaded
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.
