Home Hayward D.E. ProGrid Pool Filter | 36 sq. ft. | Requires Backwash Valve - Not Included | DE3620 Parts

Hayward D.E. ProGrid Pool Filter | 36 sq. ft. | Requires Backwash Valve - Not Included | DE3620 Parts

Back to Product

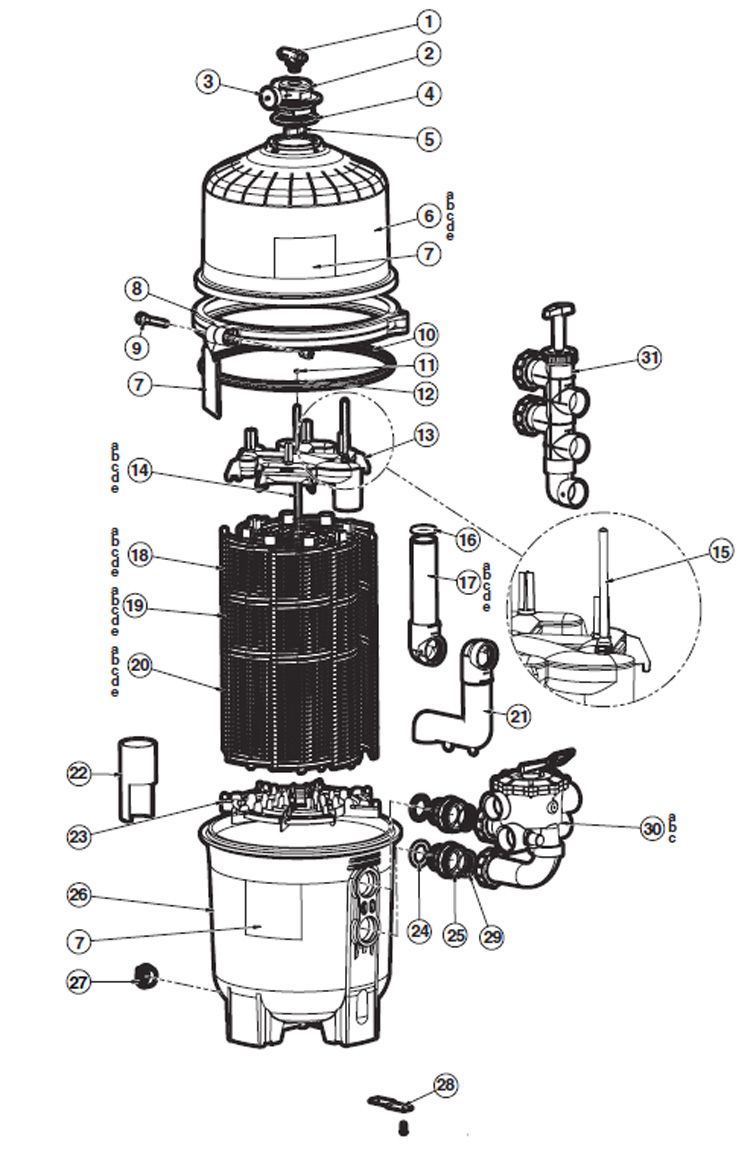

Hayward D.E. ProGrid Pool Filter | 36 sq. ft. | Requires Backwash Valve - Not Included | DE3620 Parts Schematic
1
Hayward Manual Air Relief Valve with O-Ring | CCX1000V
Hayward Manual Air Relief Valve with O-Ring | CCX1000V
Quantity:
$18.39

2
Hayward Manual Air Relief Assembly | DEX2420MAR2
Hayward Manual Air Relief Assembly | DEX2420MAR2
Quantity:
$153.33

3
Hayward Pressure Gauge | ECX2712B1
Hayward Pressure Gauge | ECX2712B1
Quantity:
$32.44

4
Hayward O-Ring Kit for Pro-Grid Set of 2 | DEX2420Z8A
Hayward O-Ring Kit for Pro-Grid Set of 2 | DEX2420Z8A
Quantity:
$36.62

5
Hayward Adapter Nut | CCX1000N
Hayward Adapter Nut | CCX1000N
Quantity:
$8.93

6
Hayward Filter Head with Clamp System | DEX3620BTC
Hayward Filter Head with Clamp System | DEX3620BTC
Quantity:
$571.45

7
Hayward Label Pack | DEX2420LA6PAK
Hayward Label Pack | DEX2420LA6PAK
Quantity:
$42.39

8
Hayward Clamp System | DEX2421JKIT
Hayward Clamp System | DEX2421JKIT
Quantity:
$389.72

9
Hayward Clamp Bolt and Nut | DEX2421J2
Hayward Clamp Bolt and Nut | DEX2421J2
Quantity:
$41.73

10
Hayward Metal Reinforced Tank O-Ring | DEX2422Z2
Hayward Metal Reinforced Tank O-Ring | DEX2422Z2
Quantity:
$81.23

11
Hayward Retainer Nut Size: 5/16-18" Inch | ECX176865
Hayward Retainer Nut Size: 5/16-18" Inch | ECX176865
Quantity:
$6.02

12
Hayward Washer 5/16" | ECX1109
Hayward Washer 5/16" | ECX1109
Quantity:
$5.45

13
Hayward Top Collector Manifold with Flex Air Relief Assembly | DEX2400C
Hayward Top Collector Manifold with Flex Air Relief Assembly | DEX2400C
Quantity:
$86.47

14
Hayward Retainer Rod | DEX3600R
Hayward Retainer Rod | DEX3600R
Quantity:
$65.36

15
Hayward Flex Air Relief Assembly | DEX2400CR
Hayward Flex Air Relief Assembly | DEX2400CR
Quantity:
$31.22

16
Hayward Outlet Elbow O-Ring | DEX2400Z5
Hayward Outlet Elbow O-Ring | DEX2400Z5
Quantity:
$10.82

17
Hayward Outlet Elbow Assembly with O-Ring | DEX3620EA
Hayward Outlet Elbow Assembly with O-Ring | DEX3620EA
Quantity:
$83.84

18
Complete Grid Set for 36 Sq Ft Filters | 18" Tall Grids | 7 Full, 1 Partial Top Manifold Style | PFS1836 FC-9530 DGS-1118
Complete Grid Set for 36 Sq Ft Filters | 18" Tall Grids | 7 Full, 1 Partial Top Manifold Style | PFS1836 FC-9530 DGS-1118
Quantity:
$133.39

18
Hayward Filter Element Cluster Assembly | DEX3600DC
Hayward Filter Element Cluster Assembly | DEX3600DC
Quantity:
$543.90

19
Full Size DE Grid 36 Sq Ft | 18" Universal | FG-1003 PFG1836 FC-9330
Full Size DE Grid 36 Sq Ft | 18" Universal | FG-1003 PFG1836 FC-9330
Quantity:
$23.13

19
Hayward Full D.E. Grid Element | 18" 36 Sq Ft | DEX3600DA
Hayward Full D.E. Grid Element | 18" 36 Sq Ft | DEX3600DA
Quantity:
$37.29

20
Partial Size DE Grid 36 Sq Ft | 18" Universal | PG-1903 PHG1836 FC-9430
Partial Size DE Grid 36 Sq Ft | 18" Universal | PG-1903 PHG1836 FC-9430
Quantity:
$29.55

20
Hayward Partial D.E. Grid Element | 18" 36 Sq Ft | DEX3600DS
Hayward Partial D.E. Grid Element | 18" 36 Sq Ft | DEX3600DS
Quantity:
$36.27

21
Hayward Inlet Elbow | DEX2420GA
Hayward Inlet Elbow | DEX2420GA
Quantity:
$97.21

22
Hayward Element Spacer | DEX2420T
Hayward Element Spacer | DEX2420T
Quantity:
$46.89

23
Hayward Filter Element Locator | DEX2400H
Hayward Filter Element Locator | DEX2400H
Quantity:
$57.63

24
Hayward Diffuser O-Ring | SX220Z2
Hayward Diffuser O-Ring | SX220Z2
Quantity:
$17.04

25
Hayward Bulkhead Fitting | DEX2420F
Hayward Bulkhead Fitting | DEX2420F
Quantity:
$39.35

26
Hayward Lower Filter Body with Clamp | DEX2420ATC
Hayward Lower Filter Body with Clamp | DEX2420ATC
Quantity:
$706.34

27
Hayward Drain Plug with O-Ring | SP1022CBLK
Hayward Drain Plug with O-Ring | SP1022CBLK
Quantity:
$4.28

28
Hayward Strap Kit | DEX2420DCKIT
Hayward Strap Kit | DEX2420DCKIT
Quantity:
$58.86

29
Hayward O-Ring for Valve Horn | SX200Z4
Hayward O-Ring for Valve Horn | SX200Z4
A Replacement is available for this item.
This item is obsolete.

30a
Hayward Vari-Flo XL 2" Slip Selecta-Flo Multi Port Valve Side Mount DE Filter | SP0740DE
Hayward Vari-Flo XL 2" Slip Selecta-Flo Multi Port Valve Side Mount DE Filter | SP0740DE
Quantity:
$252.72

30b
Hayward Vari-Flo XL Multi-Port Control Valve 1.5" | SP0710XR50
Hayward Vari-Flo XL Multi-Port Control Valve 1.5" | SP0710XR50
Quantity:
$171.07

30c
Hayward Vari-Flo XL Multi-Port Control Valve Pipe Size: 2" FIP | SP0715XR50
Hayward Vari-Flo XL Multi-Port Control Valve Pipe Size: 2" FIP | SP0715XR50
Quantity:
$271.02
