Hayward SharkVac XL Robotic Pool Cleaner with Caddy | 60' Cord | RC9742WCCUBY Parts

Back to Product

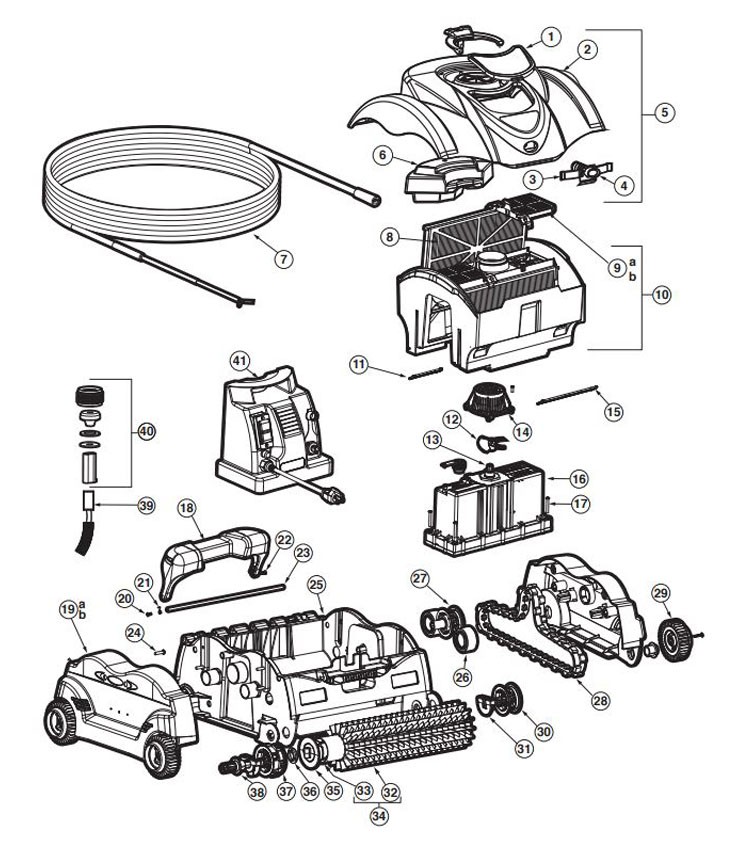

Hayward SharkVac XL Robotic Pool Cleaner with Caddy | 60' Cord | RC9742WCCUBY Parts Schematic
1
Hayward SharkVAC XL Window Dome | RCX97472
Hayward SharkVAC XL Window Dome | RCX97472
This item has been discontinued.

2
Hayward SharkVAC XL Dome Gray Met | RCX97470SB-237
Hayward SharkVAC XL Dome Gray Met | RCX97470SB-237
Quantity:
$42.60

4
Hayward SharkVAC Button | RCX97433
Hayward SharkVAC Button | RCX97433
Quantity:
$9.61

5
Hayward SharkVAC XL Dome Assembly | RCX97471SB-237
Hayward SharkVAC XL Dome Assembly | RCX97471SB-237
This item has been discontinued.

6
Hayward Float Assembly SV/EV Wall Climb | RCX97477
Hayward Float Assembly SV/EV Wall Climb | RCX97477
Quantity:
$75.67

7
Hayward SharkVac Replacement Cable | RCX97413
Hayward SharkVac Replacement Cable | RCX97413
Quantity:
$91.94

8
Hayward TigerShark Replacement Filter Elements | RCX70101PAK2
Hayward TigerShark Replacement Filter Elements | RCX70101PAK2
Quantity:
$59.11

9a
Hayward Robotic Pool Cleaner Door Filter | RCX97417
Hayward Robotic Pool Cleaner Door Filter | RCX97417
Quantity:
$12.41

9b
Hayward Door Filter Element | Set of 2 | RCX97417SPAK2
Hayward Door Filter Element | Set of 2 | RCX97417SPAK2
Quantity:
$12.22

10
Hayward SharkVAC Filter Bucket Assembly SV/EV | RCX97414
Hayward SharkVAC Filter Bucket Assembly SV/EV | RCX97414
Quantity:
$74.77

11
Hayward SharkVAC Flap Drain SV | Small | RCX97405
Hayward SharkVAC Flap Drain SV | Small | RCX97405
Quantity:
$9.61

12
Hayward TigerShark/SharkVAC Impeller | RCX11000
Hayward TigerShark/SharkVAC Impeller | RCX11000
Quantity:
$16.49

13
Hayward Drive Pin Assembly for Tiger Shark/SharkVAC | RCX40117
Hayward Drive Pin Assembly for Tiger Shark/SharkVAC | RCX40117
Quantity:
$16.23

14
Hayward SharkVAC Tube Vent | RCX97455
Hayward SharkVAC Tube Vent | RCX97455
Quantity:
$12.18

15
Hayward SharkVAC Flap Drain SV | Large | RCX97407
Hayward SharkVAC Flap Drain SV | Large | RCX97407
Quantity:
$14.46

16
Hayward Motor Assembly SV/EV Wall Climb | RCX97490
Hayward Motor Assembly SV/EV Wall Climb | RCX97490
Quantity:
$668.76

17
Hayward Screw M5X35MM PT | Set of 5 | RCX97461
Hayward Screw M5X35MM PT | Set of 5 | RCX97461
Quantity:
$16.02

18
Hayward Handle Assembly SV XL | Blue | RCX97480SB-234
Hayward Handle Assembly SV XL | Blue | RCX97480SB-234
Quantity:
$56.14

19a
Hayward Panel Side SV XL | Black | RCX97403XL-236
Hayward Panel Side SV XL | Black | RCX97403XL-236
Quantity:
$20.86

19b
Hayward Panel Side EV Pro | Black | RCX97403P-236
Hayward Panel Side EV Pro | Black | RCX97403P-236
Quantity:
$20.86

20
Hayward SharkVAC Dome Bushing | RCX97423
Hayward SharkVAC Dome Bushing | RCX97423
Quantity:
$9.85

21
Hayward SharkVAC Spring Handle | RCX97427
Hayward SharkVAC Spring Handle | RCX97427
Quantity:
$9.85

22
Hayward Screw PT M7 3.14X10MM T25 | Set of 5 | RCX97459
Hayward Screw PT M7 3.14X10MM T25 | Set of 5 | RCX97459
Quantity:
$18.72

23
Hayward SharkVAC Shaft Hinge S.S. SV/EV | RCX97429
Hayward SharkVAC Shaft Hinge S.S. SV/EV | RCX97429
Quantity:
$12.27

24
Hayward Screw M5X20PAN TORX HD T-20 | RCX12011
Hayward Screw M5X20PAN TORX HD T-20 | RCX12011
Quantity:
$9.37

25
Hayward SharkVAC Base | Black | RCX341142-236
Hayward SharkVAC Base | Black | RCX341142-236
Quantity:
$73.31

26
Hayward SharkVAC Pulley Bearing Kit | Set of 2 | RCX26000PAK2
Hayward SharkVAC Pulley Bearing Kit | Set of 2 | RCX26000PAK2
Quantity:
$27.52

27
Hayward SharkVAC Wheel-Drive with Rubber SV | RCX97502GR
Hayward SharkVAC Wheel-Drive with Rubber SV | RCX97502GR
This item has been discontinued.

28
Hayward Drive Track Belt | RCX97501GR
Hayward Drive Track Belt | RCX97501GR
Quantity:
$32.80

29
Hayward Overmolded Wheel Assembly for SharkVac XL | RCX97508GR
Hayward Overmolded Wheel Assembly for SharkVac XL | RCX97508GR
Quantity:
$15.23

30
Hayward Drive Track Wheel Kit | RCX97505PAK2
Hayward Drive Track Wheel Kit | RCX97505PAK2
Quantity:
$19.75

31
Hayward SharkVAC Roller Wheel Shaft | Set of 2 | RCX97507PAK2
Hayward SharkVAC Roller Wheel Shaft | Set of 2 | RCX97507PAK2
Quantity:
$18.13

32
Hayward Aqua Vac Tigershark Replacement Brush | RCX26008
Hayward Aqua Vac Tigershark Replacement Brush | RCX26008
Quantity:
$31.29

33
Hayward SharkVAC Tube Wheel | Black | RCX97520ABK
Hayward SharkVAC Tube Wheel | Black | RCX97520ABK
Quantity:
$23.56

34
Hayward SharkVAC Tube Wheel Assembly | Light Grey | RCX97410
Hayward SharkVAC Tube Wheel Assembly | Light Grey | RCX97410
Quantity:
$44.19

35
Hayward SharkVAC Roller End SV | RCX97441
Hayward SharkVAC Roller End SV | RCX97441
Quantity:
$17.04

36
Hayward SharkVAC Roller Shaft Bushing Kit | Set of 2 | RCX97435PAK2
Hayward SharkVAC Roller Shaft Bushing Kit | Set of 2 | RCX97435PAK2
Quantity:
$14.94

37
Hayward SharkVAC Drive Wheel Kit | Set of 2 | RCX97509PAK2
Hayward SharkVAC Drive Wheel Kit | Set of 2 | RCX97509PAK2
Quantity:
$42.81

38
Hayward SharkVAC Roller Bushing Kit | Set of 2 | RCX97506PAK2
Hayward SharkVAC Roller Bushing Kit | Set of 2 | RCX97506PAK2
Quantity:
$30.82

39
Hayward Connector Socket Molex for Tiger Shark | RCX59006
Hayward Connector Socket Molex for Tiger Shark | RCX59006
Quantity:
$5.73

40
Hayward SharkVAC Motor Cord Seal Kit | RCX59004KIT
Hayward SharkVAC Motor Cord Seal Kit | RCX59004KIT
Quantity:
$15.41

41
Hayward Power Supply, 115 V for U.S. Standard TigerShark 1 | RCX97453
Hayward Power Supply, 115 V for U.S. Standard TigerShark 1 | RCX97453
Quantity:
$284.99

N/A
Hayward TigerShark Spring Cleanup Filter Elements | RCX70103PAK2
Hayward TigerShark Spring Cleanup Filter Elements | RCX70103PAK2
Quantity:
$25.93

N/A
Hayward Power Supply Circuit Breaker for TigerShark | RCX31013A
Hayward Power Supply Circuit Breaker for TigerShark | RCX31013A
Quantity:
$14.10

N/A
Hayward Power Supply Switch for TigerShark | RCX31012
Hayward Power Supply Switch for TigerShark | RCX31012
Call us to order.

N/A
Hayward Power Supply Switch Membrane Cover for TigerShark | RCX31012A
Hayward Power Supply Switch Membrane Cover for TigerShark | RCX31012A
Quantity:
$19.61

N/A
Hayward Power Supply Output Connector for TigerShark | RCX31018
Hayward Power Supply Output Connector for TigerShark | RCX31018
Quantity:
$38.21
