Hayward TriStar Variable Speed Pool Pump | 2.7 HP 230 V | SP32950VSP Parts

Back to Product

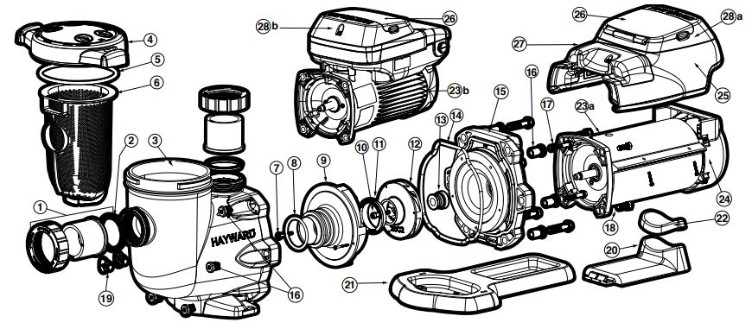

Hayward TriStar Variable Speed Pool Pump | 2.7 HP 230 V | SP32950VSP Parts Schematic
1
Hayward Union Connector Kit | SPX3200UNKIT
Hayward Union Connector Kit | SPX3200UNKIT
Quantity:
$45.32

2
Hayward Union Gasket | 50D EPDM | 2 Pack | SPX3200UG
Hayward Union Gasket | 50D EPDM | 2 Pack | SPX3200UG
Quantity:
$17.42

3
Hayward TriStar Pump Strainer Housing Assembly | SPX3200A
Hayward TriStar Pump Strainer Housing Assembly | SPX3200A
Quantity:
$251.57

4
Hayward TriStar Strainer Cover Kit | SPX3200DLS
Hayward TriStar Strainer Cover Kit | SPX3200DLS
Quantity:
$74.84

5
Hayward TriStar Strainer Cover O-Ring | SPX3200S
Hayward TriStar Strainer Cover O-Ring | SPX3200S
Quantity:
$17.68

6
Hayward TriStar Strainer Basket | SPX3200M
Hayward TriStar Strainer Basket | SPX3200M
Quantity:
$23.48

7
Hayward Diffuser Screw | Set of 2 | SPX3200Z8
Hayward Diffuser Screw | Set of 2 | SPX3200Z8
Quantity:
$15.09

8
Hayward Diffuser O-Ring | SPX4000Z1
Hayward Diffuser O-Ring | SPX4000Z1
Quantity:
$17.24

9
Hayward TriStar Diffuser | SPX3200B3
Hayward TriStar Diffuser | SPX3200B3
Quantity:
$40.29

10
Hayward TriStar Impeller Screw | SPX3200Z1
Hayward TriStar Impeller Screw | SPX3200Z1
Quantity:
$10.49

11
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Hayward Super II Impeller Ring | 2HP-3HP Full Rate | SPX3021R
Quantity:
$11.17

12
Hayward TriStar Impeller with Screw | 2HP | SPX3220C
Hayward TriStar Impeller with Screw | 2HP | SPX3220C
Quantity:
$49.13

13
Hayward Viton Shaft Seal | SPX4000SAV
Hayward Viton Shaft Seal | SPX4000SAV
Quantity:
$40.22

14
Hayward TriStar O-Ring-Housing | SPX3200T
Hayward TriStar O-Ring-Housing | SPX3200T
Quantity:
$14.87

15
Hayward TriStar Seal Plate | SPX3200E
Hayward TriStar Seal Plate | SPX3200E
Quantity:
$49.96

16
Hayward TriStar Pump Housing Insert and Seal Plate Spacer Kit | SPX3200Z211
Hayward TriStar Pump Housing Insert and Seal Plate Spacer Kit | SPX3200Z211
Quantity:
$28.47

17
Hayward TriStar Housing Bolt | SPX3200Z3
Hayward TriStar Housing Bolt | SPX3200Z3
Quantity:
$8.60

18
Hayward Motor Bolt | 4 per Pack | SPX3200Z5PAK4
Hayward Motor Bolt | 4 per Pack | SPX3200Z5PAK4
Quantity:
$14.16

19
Hayward Drain Plug with Gasket | SPX4000FG
Hayward Drain Plug with Gasket | SPX4000FG
Quantity:
$8.42

20
Hayward TriStar Motor Support Bracket | SPX3200GA
Hayward TriStar Motor Support Bracket | SPX3200GA
Quantity:
$40.74

21
Hayward TriStar Riser Base | SPX3200WF
Hayward TriStar Riser Base | SPX3200WF
Quantity:
$40.63

21
Hayward TriStar Base Tall Riser | SPX3200SR
Hayward TriStar Base Tall Riser | SPX3200SR
Quantity:
$39.86

22
Hayward Adapter Motor Support | SPX3200Q
Hayward Adapter Motor Support | SPX3200Q
Quantity:
$10.67

23a
Hayward EcoStar Variable Speed Pump MOTOR ONLY | SPX3400Z1ECM
Hayward EcoStar Variable Speed Pump MOTOR ONLY | SPX3400Z1ECM
Quantity:
$606.42

23b
Hayward 2.7HP Tristar VS G3 Pump Power End Assembly | SPX3206Z1VSPE
Hayward 2.7HP Tristar VS G3 Pump Power End Assembly | SPX3206Z1VSPE
Quantity:
$1,405.95

24
Hayward Ecostar Motor Fan Shroud | SPX3400FAN
Hayward Ecostar Motor Fan Shroud | SPX3400FAN
Quantity:
$33.98

25
Hayward Motor Drive for Variable Speed Pump | SPX3400DR
Hayward Motor Drive for Variable Speed Pump | SPX3400DR
Quantity:
$810.50

26
Hayward Motor Drive Display Cover | Black | SPX3400DR4
Hayward Motor Drive Display Cover | Black | SPX3400DR4
Quantity:
$40.92

27
Hayward Ecostar Motor Drive Wiring Cover | SPX3400DR2
Hayward Ecostar Motor Drive Wiring Cover | SPX3400DR2
Quantity:
$79.57

28a
Hayward Ecostar Digital Control Interface Assembly | SPX3400LCD
Hayward Ecostar Digital Control Interface Assembly | SPX3400LCD
Quantity:
$331.47

28b
Hayward Digital Control Interface Assembly | SPX3200LCD
Hayward Digital Control Interface Assembly | SPX3200LCD
Quantity:
$321.87

N/A
Hayward Tristar Pump H-Kit Quick Pump Repair | SPXHKIT100
Hayward Tristar Pump H-Kit Quick Pump Repair | SPXHKIT100
Quantity:
$36.23

N/A
Hayward EcoStar Wall Mounting Kit | SPX3400DRKIT
Hayward EcoStar Wall Mounting Kit | SPX3400DRKIT
Quantity:
$108.87

N/A
Hayward VS Pump Communication Cable | SPX3200DRCC
Hayward VS Pump Communication Cable | SPX3200DRCC
Quantity:
$39.02

N/A
Hayward Aqualogic Actuator Connector | GLX-ACT-CONN
Hayward Aqualogic Actuator Connector | GLX-ACT-CONN
Quantity:
$17.52

N/A
Hayward Ecostar Display Cable | SPX3400DRCBL
Hayward Ecostar Display Cable | SPX3400DRCBL
Quantity:
$54.89
