Home Pool SALE Filters & Cartridges Hayward D.E. ProGrid Pool Filter | 60 sq. ft. | Requires Backwash Valve - Not Included | W3DE6020 Parts

Hayward D.E. ProGrid Pool Filter | 60 sq. ft. | Requires Backwash Valve - Not Included | W3DE6020 Parts

Back to Product

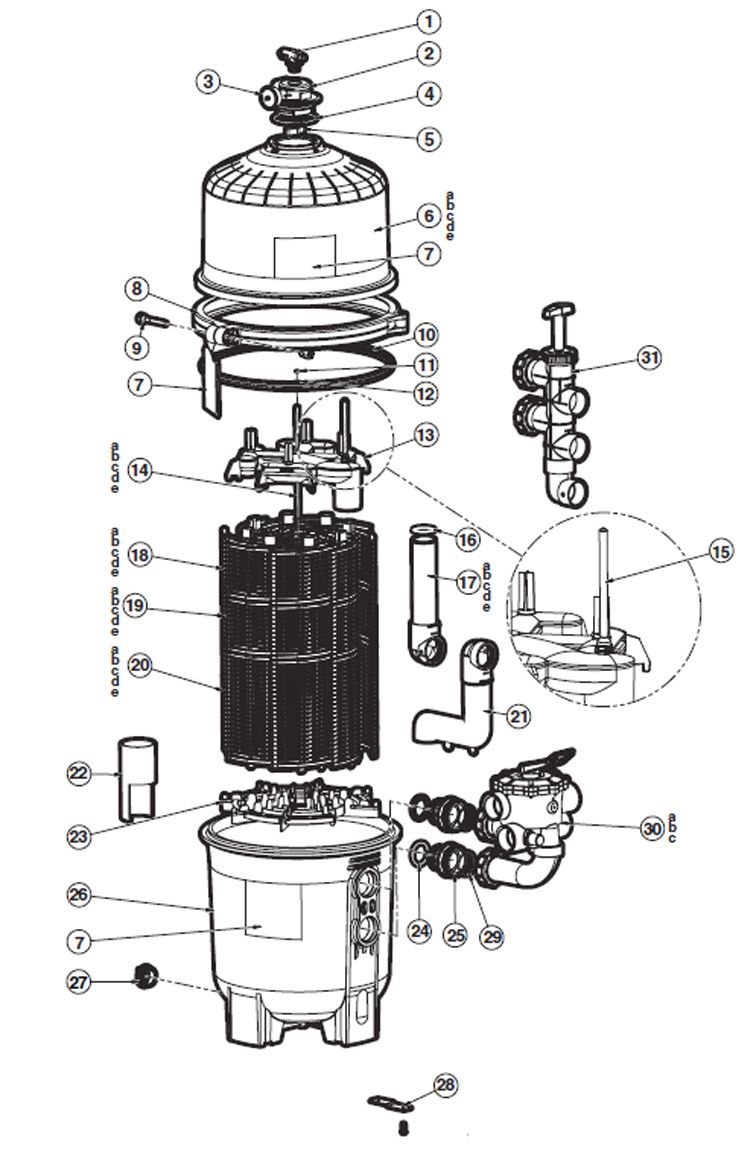

Hayward D.E. ProGrid Pool Filter | 60 sq. ft. | Requires Backwash Valve - Not Included | W3DE6020 Parts Schematic
1
Hayward Manual Air Relief Valve with O-Ring | CCX1000V
Hayward Manual Air Relief Valve with O-Ring | CCX1000V
Quantity:
$18.60

2
Hayward Manual Air Relief Assembly | DEX2420MAR2
Hayward Manual Air Relief Assembly | DEX2420MAR2
Quantity:
$154.39

3
Hayward Pressure Gauge | ECX2712B1
Hayward Pressure Gauge | ECX2712B1
Quantity:
$32.78

4
Hayward O-Ring Kit for Pro-Grid Set of 2 | DEX2420Z8A
Hayward O-Ring Kit for Pro-Grid Set of 2 | DEX2420Z8A
Quantity:
$36.96

5
Hayward Adapter Nut | CCX1000N
Hayward Adapter Nut | CCX1000N
Quantity:
$9.09

6
Hayward Filter Head with Clamp System | DEX6020BTC
Hayward Filter Head with Clamp System  | DEX6020BTC
Quantity:
$692.91

7
Hayward Label Pack | DEX2420LA6PAK
Hayward Label Pack | DEX2420LA6PAK
Quantity:
$42.77

8
Hayward Clamp System | DEX2421JKIT
Hayward Clamp System | DEX2421JKIT
Quantity:
$391.28

9
Hayward Clamp Bolt and Nut | DEX2421J2
Hayward Clamp Bolt and Nut | DEX2421J2
Quantity:
$42.10

10
Hayward Metal Reinforced Tank O-Ring | DEX2422Z2
Hayward Metal Reinforced Tank O-Ring | DEX2422Z2
Quantity:
$81.89

11
Hayward Retainer Nut Size: 5/16-18" Inch | ECX176865
Hayward Retainer Nut Size: 5/16-18" Inch | ECX176865
Quantity:
$6.13

12
Hayward Washer 5/16" | ECX1109
Hayward Washer 5/16" | ECX1109
Quantity:
$5.57

13
Hayward Top Collector Manifold with Flex Air Relief Assembly | DEX2400C
Hayward Top Collector Manifold with Flex Air Relief Assembly | DEX2400C
Quantity:
$87.18

14
Hayward Retainer Rod | DEX6000R
Hayward Retainer Rod | DEX6000R
Quantity:
$89.22

15
Hayward Flex Air Relief Assembly | DEX2400CR
Hayward Flex Air Relief Assembly | DEX2400CR
Quantity:
$31.54

16
Hayward Outlet Elbow O-Ring | DEX2400Z5
Hayward Outlet Elbow O-Ring | DEX2400Z5
Quantity:
$10.96

17
Hayward Outlet Elbow Assembly with O-Ring | DEX6020EA
Hayward Outlet Elbow Assembly with O-Ring | DEX6020EA
This item has been discontinued.

18
Complete Grid Set for 60 Sq Ft Filters | 30" Tall Grids | 7 Full, 1 Partial Top Manifold Style | PFS3060 FC-9550 DGS-1130
Complete Grid Set for 60 Sq Ft Filters | 30" Tall Grids | 7 Full, 1 Partial Top Manifold Style | PFS3060 FC-9550 DGS-1130
Quantity:
$109.00

18
Hayward Filter Element Cluster Assembly | DEX6000DC
Hayward Filter Element Cluster Assembly | DEX6000DC
Quantity:
$749.87

19
Full Size DE Grid 60 Sq Ft | 30" Universal | FG-1005 PFG3060 FC-9350
Full Size DE Grid 60 Sq Ft | 30" Universal | FG-1005 PFG3060 FC-9350
Quantity:
$32.53

19
Hayward Full D.E. Grid Element | 30" 60 Sq Ft | DEX6000DA
Hayward Full D.E. Grid Element | 30" 60 Sq Ft | DEX6000DA
Quantity:
$46.84

20
Partial Size DE Grid 60 Sq Ft | 30" Universal | PG-1905 PHG3060 FC-9450
Partial Size DE Grid 60 Sq Ft | 30" Universal | PG-1905 PHG3060 FC-9450
Quantity:
$32.44

20
Hayward Partial D.E. Grid Element | 30" 60 Sq Ft | DEX6000DS
Hayward Partial D.E. Grid Element | 30" 60 Sq Ft | DEX6000DS
Quantity:
$48.31

21
Hayward Inlet Elbow | DEX2420GA
Hayward Inlet Elbow | DEX2420GA
Quantity:
$98.00

22
Hayward Element Spacer | DEX2420T
Hayward Element Spacer | DEX2420T
Quantity:
$47.29

23
Hayward Filter Element Locator | DEX2400H
Hayward Filter Element Locator | DEX2400H
Quantity:
$58.11

24
Hayward Diffuser O-Ring | SX220Z2
Hayward Diffuser O-Ring | SX220Z2
Quantity:
$17.23

25
Hayward Bulkhead Fitting | DEX2420F
Hayward Bulkhead Fitting | DEX2420F
Quantity:
$39.71

26
Hayward Lower Filter Body with Clamp | DEX2420ATC
Hayward Lower Filter Body with Clamp | DEX2420ATC
Quantity:
$709.08

27
Hayward Drain Plug with O-Ring | SP1022CBLK
Hayward Drain Plug with O-Ring | SP1022CBLK
Quantity:
$4.45

28
Hayward Strap Kit | DEX2420DCKIT
Hayward Strap Kit | DEX2420DCKIT
Quantity:
$59.35

29
Hayward O-Ring for Valve Horn | SX200Z4
Hayward O-Ring for Valve Horn | SX200Z4
A Replacement is available for this item.
This item has been discontinued.

30a
Hayward Vari-Flo XL 2" Slip Selecta-Flo Multi Port Valve Side Mount DE Filter | SP0740DE
Hayward Vari-Flo XL 2" Slip Selecta-Flo Multi Port Valve Side Mount DE Filter | SP0740DE
Quantity:
$261.87

30b
Hayward Vari-Flo XL Multi-Port Control Valve 1.5" | SP0710XR50
Hayward Vari-Flo XL Multi-Port Control Valve 1.5" | SP0710XR50
Quantity:
$171.34

30c
Hayward Vari-Flo XL Multi-Port Control Valve Pipe Size: 2" FIP | SP0715XR50
Hayward Vari-Flo XL Multi-Port Control Valve Pipe Size: 2" FIP | SP0715XR50
Quantity:
$279.00
