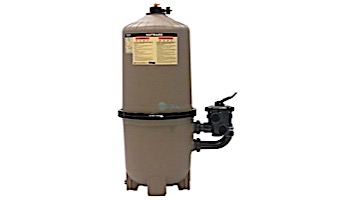

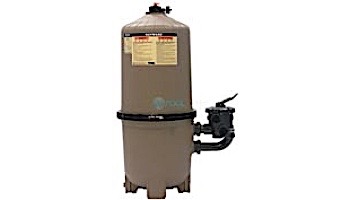

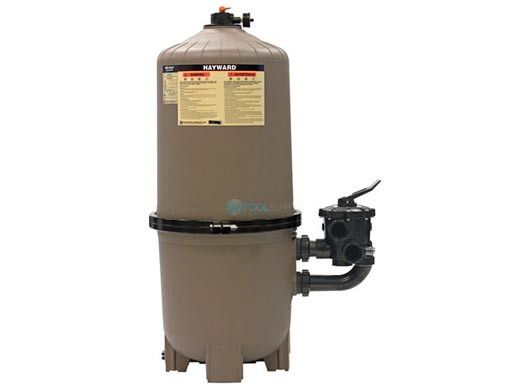

Home Hayward D.E. ProGrid Pool Filter | 60 sq. ft. | Requires Backwash Valve - Not Included | W3DE6020
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Hayward D.E. ProGrid Pool Filter | 60 sq. ft. | Requires Backwash Valve - Not Included | W3DE6020

Hayward D.E. ProGrid Pool Filter | 60 sq. ft. | Requires Backwash Valve - Not Included | W3DE6020
$1,249.00

Quantity:
Shipping Free Shipping *
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Requires backwash valve, sold seperately. See Related Items below.
  • Reinforced thermoplastic filter tanks constructed from durable glass reinforced copolymer to meet the demands of the toughest applications and environmental conditions, including in-floor cleaning systems
  • Heavy-duty, tamper-proof one-piece flange clamp securely fastens tank top and bottom, allowing for quick access to all internal components without disturbing piping or connections
  • Online part number W3DE6020 is the direct replacement for part number DE6020.
Purchase Options
RELATED ITEMS
  • Fiber Clear Cellulose Powder Filter Media | Replaces Diatomaceous Earth | 3 lbs. | FCR-048B
    Fiber Clear Powder Filter Media | Replaces D.E. | 3 lbs. | FCR-048B

    $27.53

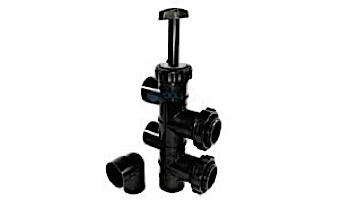

  • Hayward 2" Slip Push-Pull Slide Valve Assembly DE Filters | SP0410X502S
    Hayward 2" Slip Push-Pull Slide Valve Assembly DE Filters | SP0410X502S

    $113.14

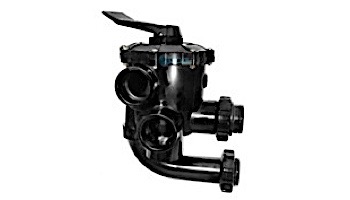

  • Hayward Vari-Flo XL 2" Slip Selecta-Flo Multi Port Valve Side Mount DE Filter | SP0740DE
    Hayward Vari-Flo XL 2" Slip Selecta-Flo Multi Port Valve Side Mount DE Filter | SP0740DE

    $211.87
  • Hayward Vari-Flo XL Multi-Port Control Valve Pipe Size: 2" FIP | SP0715XR50
    D.E. 2" FIP Vari-Flo Multi Port Backwash Valve Kit - SP0715XR50

    $226.92
  • Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370
    Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370

    $315.00
OVERVIEW
Pro-Grid vertical grid D.E. filters provide superior water clarity, efficient flow and large cleaning capacity for pools and spas of all types and sizes. Constructed with high-strength reinforced thermoplastic, Pro-Grid combines high-technology features and "service-ease" design for an unparalleled filtration value for both new pool and aftermarket installations.

In addition, Pro-Grid delivers low maintenance and dependable operation.

*Self-Aligned tank top and bottom make access to servicing the grid elements fast and simple.
*High impact grid elements designed for up-flow filtration and top-down backwashing for maximum efficiency.
*72 ft filter made of reinforced thermoplastic allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance.
*New High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.
*Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids

Product Specifications
Brand Hayward
Item D.E. Filter
Type Vertical Grid
Series ProGrid
Filtration Area 60 sq ft
Flow Rate 120 gpm
Maximum Working Pressure 50 psi
HP 0.5 - 3
Turnover 57600 gal at 8 hrs, 72000 gal at 10 hrs
Media Required 7.5 lbs
Filter Tank Injection-Molded
Filter Element Monofilament Polypropylene cover fitted over 8 curved, high-impact grids


Brand: HAYWARD
SPECIFICATIONS
Square Foot
60
Grid Type
Partial
Color
Gray
Type
In-Ground
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 10 questions Browse 10 questions and 7 answers
will this filter do for my 37000 gallon pool ?
A shopper on Mar 27, 2017
BEST ANSWER: That will have no problem filtering your pool.
Wich
port is the inlet / outlet on the filter housing?
A shopper on Dec 27, 2020
BEST ANSWER: Bottom connection is from pump to filter and top connection is from filter to pool.
Does it come with the Multi-port ?
A shopper on Mar 30, 2021
BEST ANSWER: It does not come with the multi port
Currently have Hayward DE-600S filter. Is the DE Pro Grid 60 sq ft the correct replacement?
John P on Apr 12, 2022
BEST ANSWER: Measure your filter, the Pro Grid 60 is 42 1/2 inches tall. If it lines up, you should be good to go. Normally anything with DE-60** indicates the 60 sq ft.
I already have 1.5 HP hayward super pump. Is this pump acceptable for the DE6020 filter?
A shopper on Jul 6, 2021
BEST ANSWER: Yes works well
What are the location dimensions on the inlet and outlet ?
Robert P on Apr 17, 2022
WILL THE SP0715X62 VALVE FIT ON THE HAYWARD DE W3DE6020?
DEAN F on Jun 7, 2021
WILL THE SP0715X60 VALVE FIT ON THE HAYWARD DE W3DE6020?
DEAN F on Jun 7, 2021
Filtration micronshow many microns is the lowest?
A shopper on May 7, 2020
What type is filter is best for a 1200 ft inground gunite pool? Sand with Brite Line Glass Media or D.E?
Theresa C on Apr 16, 2020
REVIEWS
5.0 / 5.0
3 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
3
0
0
0
0
Rated 5 out of 5
Such an improvement!
This new filter does not allow anything through! I'm up and running after an easy installation. Had to move some piping but you can get most of it at Home Depot. We use considerably less chemicals, and even when we need to backwash, it only takes about 30 seconds for clear water. And since we cleared the pool we barely have to backwash. If your pool's cloudy, or green, you'll have to backwash frequently until it clears.
January 7, 2015
Rated 5 out of 5
Reasonable price Pool Filter
Has met expectations, was easy to install obviously haven’t had it for a long period but so far pleased.
October 8, 2021
Purchased
8 months ago
Rated 5 out of 5
Replacement Hayward DE Filter
Bought hard to find Hayward DE Filter. Fit the same as my 23 year old so no change in plumbing needed. Works great and better than old model.
June 7, 2021
Purchased
1 year ago
RESOURCES
WARRANTY
Warranty applies only to products that were purchased from Hayward authorized sellers. Pool Supply Unlimited is a Hayward Authorized Online Reseller.

See Warranty Information PDF for warranty details.

For Hayward warranty registration information, and to submit online, please visit www.hayward-pool.com

This information was updated on 4/22/2022. For the most current information and full warranty policy please visit www.hayward-pool.com


 Adobe Acrobat PDF Warranty Information
