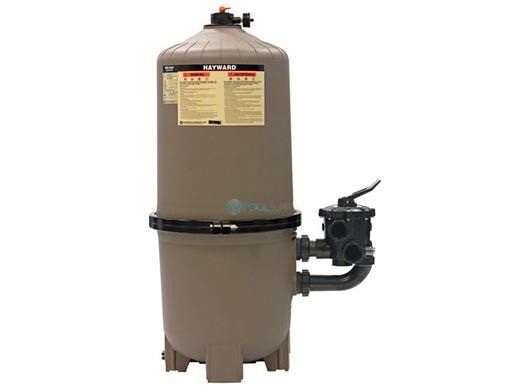

Home Hayward D.E. ProGrid Pool Filter | 48 sq. ft. | Requires Backwash Valve - Not Included | W3DE4820

Hayward DE4820 ProGrid Pool Filter - 48 sq. ft

Name: Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370
Brand: Hayward Pool Products
SKU: 43457
Availability: InStock

$1,559.00

Hayward D.E. ProGrid Pool Filter | 48 sq. ft. | Requires Backwash Valve - Not Included | W3DE4820

BakThe Pro-Grid vertical grid DE4820 filter provides superior water clarity, efficient flow and large cleaning capacity for pools and spas of all types and sizes. Constructed with high-strength reinforced thermoplastic, Pro-Grid combines high-technology features and "service-ease" design for an unparalleled filtration value for both new pool and aftermarket installations.

In addition, Pro-Grid delivers low maintenance and dependable operation.

*Self-Aligned tank top and bottom make access to servicing the grid elements fast and simple.

*High impact grid elements designed for up-flow filtration and top-down backwashing for maximum efficiency.

*72 ft filter made of reinforced thermoplastic allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance.

*New High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.

*Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids

Product Specifications

Brand	Hayward
Part Number	DE4820
Item	D.E. Filter
Type	Vertical Grid
Series	ProGrid
Filtration Area	48 sq ft
Flow Rate	96 gpm
Maximum Working Pressure	50 psi
HP	0.5 - 3
Turnover	46080 gal at 8 hrs, 57600 gal at 10 hrs
Media Required	6 lbs
Filter Tank	Injection-Molded
Filter Element	Monofilament Polypropylene cover fitted over 8 curved, high-impact grids

Brand: Hayward Pool Products

REVIEWS

Q&A

PARTS

Hayward DE4820 ProGrid Pool Filter - 48 sq. ft

$1,559.00

Square Foot:

Quantity

Free Shipping

Parts Available

Platinum Preferred Manufacturer

Proposition 65 Warning

Purchase options

ProGrid DE Filter 36 Sq Ft - W3DE3620
$1,389.00

ProGrid DE Filter 60 Sq Ft - W3DE6020
$1,709.00

Related items

Fiber Clear Powder Filter Media | Replaces D.E. | 3 lbs. | FCR-048B

$41.52
Hayward 2" Slip Push-Pull Slide Valve Assembly DE Filters | SP0410X502S

$143.65
Hayward Vari-Flo XL 2" Slip Selecta-Flo Multi Port Valve Side Mount DE Filter | SP0740DE

$271.97
D.E. 2" FIP Vari-Flo Multi Port Backwash Valve Kit - SP0715XR50

$292.69
Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370

$315.00

Product description

In addition, Pro-Grid delivers low maintenance and dependable operation.

*Self-Aligned tank top and bottom make access to servicing the grid elements fast and simple.

*High impact grid elements designed for up-flow filtration and top-down backwashing for maximum efficiency.

*72 ft filter made of reinforced thermoplastic allows for both commercial and large residential applications and years of non-corrosive, trouble-free performance.

*New High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever.

*Inlet diffuser elbow distributes flow of unfiltered water evenly to all filter elements and provides even distribution of D.E. to grids

Product Specifications

Brand	Hayward
Part Number	DE4820
Item	D.E. Filter
Type	Vertical Grid
Series	ProGrid
Filtration Area	48 sq ft
Flow Rate	96 gpm
Maximum Working Pressure	50 psi
HP	0.5 - 3
Turnover	46080 gal at 8 hrs, 57600 gal at 10 hrs
Media Required	6 lbs
Filter Tank	Injection-Molded
Filter Element	Monofilament Polypropylene cover fitted over 8 curved, high-impact grids
