Blue White F-300 Series 1-1/2" Copper Flowmeter | 10-65 GPM | F-30150T

This item has been discontinued.
Blue White F-300 Series 1-1/2" Copper Flowmeter | 10-65 GPM | F-30150T
Blue White F-300 Series 1-1/2" Copper Flowmeter | 10-65 GPM | F-30150T
Blue White F-300 Series 1-1/2" Copper Flowmeter | 10-65 GPM | F-30150T
Blue White F-300 Series 1-1/2" Copper Flowmeter | 10-65 GPM | F-30150T

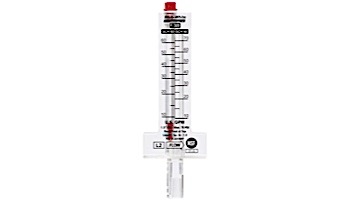

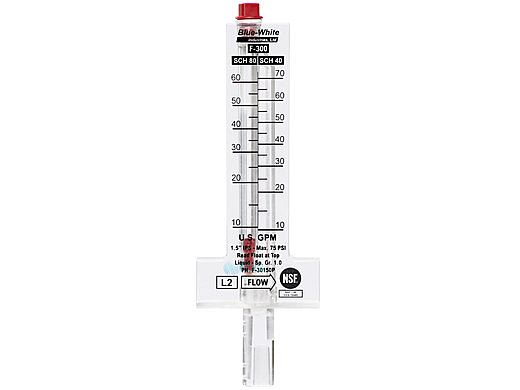

Pitot Tube (impact tube) design makes it easy to install on existing pipe. Acceptable for outdoor installations (direct sunlight okay).

Features
  • Reduced straight run pipe requirements by 50%
  • Measures flow from 2 to 10 feet per second (pool industry standard)
  • Resistant PVDF internal float materials
  • One piece machined acrylic body
  • No metals in fluid path. Safe to use with salt chlorine generators
  • Mounts to existing pipe. No unions or adapters required
  • Models for mounting on horizontal or vertical pipe
  • Mounting clamps and gasket included
Specifications
  • Pipe Requirements: IPS inch pipe size (ASTM-D-1785)
  • Max. Psi (bar): 150 PSI (10.3 bar) @ 70 F (21 C)
  • Max. fluid temp.: 190 F (88 C) @ 0 PSI
  • Max. ambient temp.: 14 to 110 F/ -10 to 43 C
  • Note: Temperature & Pressure ratings of meter only. Actual pipe rating may vary
  • Full scale accuracy: +/- 5%
  • Power requirement: No power required
  • Enclosure: NEMA 4X (IP56)
  • Approximate shipping wt:
  • 1"-4" units: 1 lb. (.45 kg)
  • 6"-8"units: 2 lb. (.91 kg)
Materials of Construction
  • Meter Body:Cast Acrylic
  • Float: PVDF
  • Gasket: Neoprene
  • Pipe Clamp: 300 series Stainless Steel
Installation Requirements

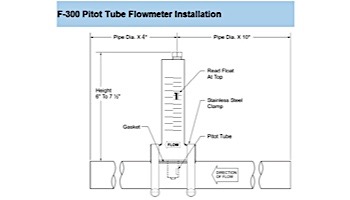

Minimum Straight Pipe Length Requirements - The meter's accuracy is affected by disturbances such as pumps, elbows, tees, valves, etc., in the flow stream. Install the meter in a straight run of pipe as far as possible from any disturbances. The distance required for accuracy is 10 times the nominal pipe diameter before the meter and 4 times the nominal pipe diameter after the meter.

Mounting location
  • F series meters must be mounted at the vertical (twelve o'clock) position
  • Must be mounted on horizontal pipe only
  • U & D series meters must be mounted on vertical pipe only
  • The pipe must be completely full of water at all times
  • See the minimum straight length of pipe requirement chart above
  • The meter can accurately measure flow from one direction only
  • U-series meters measure upward flows only
  • D-series meters measure downward flows only
