Home Delta Ultraviolet Commercial EM Series EM 1300 EL Medium Pressure Stainless Steel UV System | 208-240V Single Phase | 8" Flanges | EM 1300 EL
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

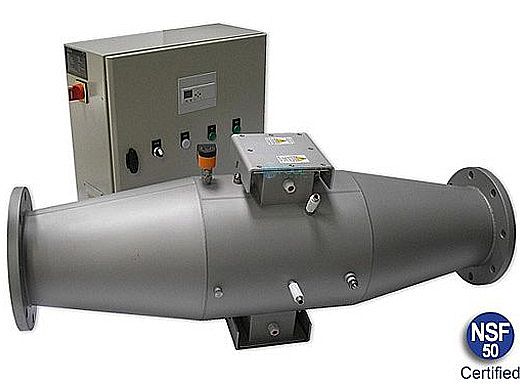

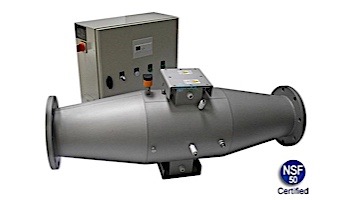

Delta Ultraviolet Commercial EM Series EM 1300 EL Medium Pressure Stainless Steel UV System | 208-240V Single Phase | 8" Flanges | EM 1300 EL

Delta Ultraviolet Commercial EM Series EM 1300 EL Medium Pressure Stainless Steel UV System | 208-240V Single Phase | 8" Flanges | EM 1300 EL

Platinum Preferred Manufacturer
  • Improve Water & Air quality by reducing chloramines — ideal for indoor pools
  • Destroys organic matter and eliminates the formation of dangerous chlorine by-products
  • Single base lamps and patented water-Proofing system to facilitate maintenance
  • Average lamp life from up to 6000 to 9000 operating hours (depending on on/off cycles)
  • Sanitizers made from micro-bitted and passivated 316L stainless steel providing high resistance to corrosion
  • Stainless Steel, Flanges: 8", Power Consumption: 1 x 4kW, 208-240v-50-60Hz
Q & A
EM Series: EM 1300 EL - Medium Pressure
Using medium pressure bulb technology, the EM series is designed for high flow rate from 70gpm up to 4,000gpm. Perfect fit for indoor big community pool, the medium pressure UV system will help you to remove the chloramines and will offer an incomparable environment for your patrons.
By lowering the water renewal, the use of chemicals and the energy to maintain a proper temperature, compared to a “traditional” old way of sanitation, you will gain on your water bill, chemical bill and in general on all the maintenance necessary to constraint the effect of chloramines.
Ideal for high bather loads on Indoor Pools, Competition Pools; Commercial aquatic facilities, Municipalities, Colleges, Universities, and YMCAs
The EM series offers bacteriological control results that exceed the standard requirements and provide the highest level of disinfection efficiency for “Crypto”, Giardia and Toxoplasma and insure a high level of dechloramination.
Get Cleaner, Healthier water with Clean Light Technology
The EM Series eradicates Cryptosporidium, Giardia and other harmful pool and spa water contaminants and chlorine by-products.
  • Improve Water & Air quality by reducing chloramines — ideal for indoor pools
  • Prevent red eyes, dry skin and damaged hair
  • Reduce Chemical usage
  • Continuous treatment for immediate disinfection and dechloramination
  • Renders 99.99% of bacteria harmless
  • Bacteriological control results that exceed standard requirements
Commercial pools are regulated under strict testing protocols. Local and National news frequently report on pool closures associated with outbreaks of «Crypto» and Giardia contamination. Delta UV provides the most advanced technology available for the eradication of these bacteria with the added benefit of Chloramine removal for improved air quality. As the World leader in ultraviolet sanitation solutions, Delta UV offers a full product line of NSF-50 certified products for your aquatic facility.
Your EM units will provide
  • A significant reduction in combined chlorine (chloramines) in order to achieve a level of 0.2-0.3ppm (depending on pool maintenance and number of swimmers
  • The EM range delivers 60mJ/cm2 at the end of the lamp’s life assuring optimum dechloramination and disinfection efficiencies
  • Average lamp life from 6,000 up to 8,000 hours (depending on on/off cycles)
  • The best efficiency for high flow rates
  • Easy to install and maintain
  • Automatic wiper
  • UV-C sensor monitoring flow control, temperature sensor within the electrical boc and the UV chamber, audible alarm when issues occur
  • High power medium for reducing the necessary number of lamps and optimum wavelenght for trichloramines
  • UV Chamber made from micro-bitted and passicated 316 L stainless steel (chem coat option for high corrosive environment)
  • 25-50% savings in water renewal costs
  • It pays for itself in 9 to 36 months
  • The use of electronic ballasts provides significant savings in electrical consumption
  • Better comfort, better image
  • More environmentally friendly
EM Series Medium Pressure Lamps: High power medium pressure polychromatic UV-C technology. These multi-wavelength lamps reduce the number of UV-C lamps while providing optimum wavelengths for the removal of chloramines such as trichloramines. Also generating 254nM of UV-C germicidal light, the Medium Pressure technology effectively eradicates water borne pathogens.
Cleaner Water: Dimensioned according to the pump flow rate which combines exposure time in the UV sanitizer and the power of the lamp(s) to ensure that the necessary dose (expressed in millijoules per square centimeter or mJ/ cm2) is sufficient to kill 99,99% of the micro-organisms (bacteria, viruses, «Crypto», etc.).
Cleaner Air: In the particular case of dechloramination, a dose of 60mJ is essential in order to be able to significantly reduce the level of chloramines, which are responsible for respiratory irritation and illness.
The UV Concept: UV-C light naturally sanitizes water Delta UV reproduces this phenomenon in these sanitizers’ powerful UV-C ray lamps which transmit at 254 nanometers, the optimum wavelength for destroying microorganisms (viruses, bacteria, algae, yeast, mold etc). Installed in-line just after the pool’s existing filtration system, the Delta UV-C product rays penetrate and disrupt the micro-organisms’ DNA, permanently deactivating germ cell metabolism so they cannot reproduce.

Brand: Delta UV
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
There are no reviews for this item. Write Review
2 Years
Delta Ultraviolet Corporation warrants to every original Purchaser of Delta UV’s Series Ultraviolet Unit, that the product will be free from defects, as defined herein, for a period of two (2) years - (E/ES-Series). If at any time during the Limited Warranty period, any defect, as defined herein, prevents the product from performing correctly in an application for which it was designed, Delta UV will repair or replace the product (at Delta UV’s option) as outlined herein:
This Limited Warranty DOES cover the UV unit, its components, and defects thereof against:
  • Manufacturing Defects
  • Material Defects – Ballast, Pressure Gauge, Pressure Switch (1 year)
  • Housing Corrosion Causing Leakage (ES Series)
  • Plastic Component Degradation
  • Bulb failure during 1st year (Pro Rated)
This Limited Warranty DOES NOT cover the following UV unit defects:
  • Failure Of Any Covered Condition When Caused By Any Of The Following:
  • Metal Corrosion Due To Salt Water Use
  • Mechanical Abuse
  • Glass Component Breakage
  • Improper Installation
  • Bulb Failure After One Year
  • Acts of War or God
  • Operation At Pressures Greater Than 40 PSI (3 Bar)
  • Freeze Damage
  • Any Failure Not Indicated As “Covered Warranty Item” Herein
  • Improper Operating Voltage
Note 1: During the duration of this Limited Warranty, should any failure occur, the unit should be inspected at the site to determine the cause of failure, and if that failure is shown to be a covered item, the Original End User (User) must request a written Return Goods Authorization (RGA) from Delta UV, prior to any product return. Any returned unit is to be accompanied by Delta UV’s RGA and is to be returned freight prepaid to Delta UV for Limited Warranty evaluation. The User is responsible for any freight damage associated with such return. Unit failures, or components thereof, found to be covered under this Limited Warranty will be repaired or replaced (at Delta UV’s option) without cost to the User and will be returned to the User via UPS Surface, at the User’s expense. Delta UV shall be the sole judge in determining the cause of failure of any UV unit. Units arriving in broken condition will not be warranted. The term “Original End User” (User) shall mean the person or company that was in possession of the physical location where the UV unit was originally installed, at the time of first installation, as evidenced by an original invoice from the selling company to the User at the location where the unit is to be returned. A photo copy of said original invoice must accompany the UV unit RGA paperwork. UV units received unaccompanied by the required documentation will not be accepted by Delta UV for Warranty evaluation and will be returned to the User in the same condition as received, freight collect (COD) if the User fails to provide the required documentation within ten (10) days from date of notification of missing documentation from Delta UV. Any unit returned to Delta UV COD or freight collect will be rejected from the freight carrier.
Note 2: This Warranty is Limited in that it does not cover any monetary reimbursement for freight charges, for removal and/or installation labor, or any other incurred costs by any other person(s) or firm(s), including (but not limited to) any consequential damage or loss of use that might be claimed. The Limited Warranty period shall commence upon the date of sale to the User, but in all cases no later than one hundred twenty (120) days after the date of manufacture of the UV unit, as shown on the Delta UV date code located on the product identification label, whichever occurs first. UV units received with factory identification missing, mutilated or altered, or units received containing components not supplied by Delta UV or modified in any way, will not be warranted under any circumstances.
OTHER RIGHTS - This Limited Warranty supersedes any and all previous Limited Warranties for this product, gives you specific legal rights, and you may have other rights which vary from state to state.
