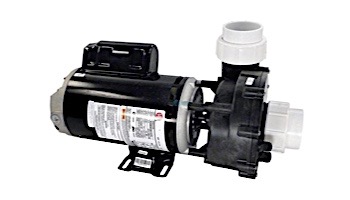

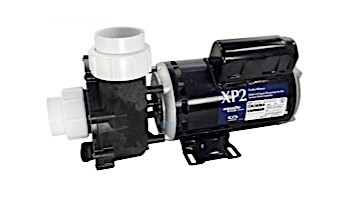

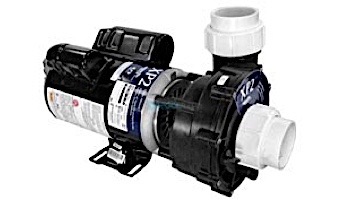

Gecko AquaFlo FloMaster XP2 | 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed | 06115000-1040
Sale $434.54
$299.00
$299.00
    |
|
|
Flo-Master® "XP" Series pumps easily outperform other comparable pumps on the market and allow spa manufacturers to offer superior overall performance and enhanced energy efficiency. These unique pumps are designed for today's large, many jetted spas requiring increased flow and are designed with a high volumetric volute to provide whisper quiet performance even at maximum flow rates.
OP.HP REFERS TO OPERATIONAL HORSE POWER
If you have an older XP2 pump and the label only has the HP rating and not the OP.HP rating then the new style will be by the OP.HP.
If you have both a HP rating and an OP.HP rating on the label then the new style is the same.
XP2 pumps are 48 frame motors only now however, in the past there were some 56 frame motors used. These are replacement wet ends that have been used by the manufacturer.
This pump is a direct replacement for the following Aqua-Flo Spa Pumps:
- 06110864-1040, 06111000-2040, 06111001-2040, 06111001-2340, 06111002-2040, 06111323-2040, 06111323-2340, 06115000-1040, 06115000-1340, 06115002-1040, 06115002-1340, 06115002-2040, 06115196-1300, 06115197-1300, 06115233-1340, 06115298-1040, 06115319-2340, 06115319-2341, 06115484-2040, 06115484-2110, 06115484-2340, 06115500-2040, 06115500-2340, 06115510-2040, 06115510-2300, 06115510-2340, 06115511-2040, 06115511-2340, 06115788-2040, 06115852-1300, 06115862-1040, 06115864-1040, 06115865-1040, 06115866-1040, 06115891-1040, 06117849-1300, 06117849-1340, 06118316-2300, 06118371-2000, 06118371-2300, 06118371-5000, 06118371-5300, 06118437-2300, 06118452-2300
Brand: Gecko
5.0 / 5.0
6 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
6
0
0
0
0
Rated 5 out of 5
This motor is a two speed replacing a single speed, but hooked it on the high speed and it works great.
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Five Stars
Replacing my 5 year old spa pump that died on me. I've only had this product for a month but no issues so far. We had to rotate the discharge but it was very simple, just by removing screws. I am very happy with my purchase.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
November 1, 2015
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Greenville, MI Aqua Flo Pump
Got my new pump in (2) days....packaged well....popped it into my hot tub and was back in business...10 rating!
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Did it myself!
This is the very best price I found for this pump. Exact replacement in my Coleman spa. Easy to wire and install, although the weight made it a little awkward to maneuver inside the cabinet. Water connections were easy. She's been up and running for a week. Very pleased.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Running Great
I purchased and installed the AquaFlo FloMaster XP2 last fall and it has run well all fall and winter without any issues. Due to our elevation we have 60 degree daily temperature swings and our hot tub is always ready to go.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Perfect replacement pump with my old aquatera spa
Excellent customer service, fair price and the replacement pump worked seamlessly with my older aquatera spa. 10 more years of enjoyment! Thanks, guys!
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Reviews for Similar Products
Do not include HTML, links, references to other stores, pricing or contact info.
My question is about:
If your question is about more than one item, click + to add them.
Browse 13 questions
Browse 13 questions
and 21 answers
How do you replace the seal from the wet end to the shaft?
A shopper
on Jun 7, 2016
BEST ANSWER: You need to take the impeller off. There is a you-tube video on it.
- Reply
- Inaccurate
- MARK J on Jul 25, 2020
- Purchased on Jul 5, 2020
BEST ANSWER: You need to take the impeller off. There is a you-tube video on it.
- Reply
- Inaccurate
- MARK J on Jul 25, 2020
- Purchased on Jul 5, 2020
Vote for the best answer above!
is this a direct replacement for 06614000-5?
A shopper
on Dec 17, 2015
BEST ANSWER: I don't really know how to cross reference that number. That pump will replace the 1.5 HP flomaster pump so long as the fittings are the same.
- Reply(1)
- Inaccurate
- WILLIAM P. on Dec 17, 2015
- Purchased on Nov 8, 2014
Again, I don't know if this is a direct replacement. However, I did order this pump for my hot tub as it seemed to be the right match, and I had great success. The pump showed up promptly, and installation was very easy. I did take a picture of the old pump wiring hookup before adding the new one, but there was a very direct match. I'm now enjoying the new pump and everything seems to be working fine (4 months in). I don't know if my experience translates to yours, but I found working with the company (by sending them a photo of my old pump, including the model/serial number) was very easy and I've been satisfied with the results. Good luck!
- Reply
- frankiem77 on Dec 17, 2015
BEST ANSWER: I don't really know how to cross reference that number. That pump will replace the 1.5 HP flomaster pump so long as the fittings are the same.
- Reply(1)
- Inaccurate
- WILLIAM P. on Dec 17, 2015
- Purchased on Nov 8, 2014
Again, I don't know if this is a direct replacement. However, I did order this pump for my hot tub as it seemed to be the right match, and I had great success. The pump showed up promptly, and installation was very easy. I did take a picture of the old pump wiring hookup before adding the new one, but there was a very direct match. I'm now enjoying the new pump and everything seems to be working fine (4 months in). I don't know if my experience translates to yours, but I found working with the company (by sending them a photo of my old pump, including the model/serial number) was very easy and I've been satisfied with the results. Good luck!
- Reply
- frankiem77 on Dec 17, 2015
It was for my hot tub. Everything was identical in terms of electrical and water hookups.
- Reply
- Inaccurate
- Gregory D on Dec 17, 2015
- Purchased on May 6, 2015
I honestly don't know the answer to this question
- Reply
- Inaccurate
- Gliath Gliathopoulos on Dec 17, 2015
- Purchased on Nov 5, 2014
Vote for the best answer above!
WIll this replace Watkins wavemaster 4000 model # 37334 in a Solana TX spa? Same volts, amp, and HP. Appears to look the same.
Brian H
on Jan 25, 2017
BEST ANSWER: I'm not familiar with that spa ,I have a Nordic. I needed to rotate the intake or out flow, can't remember which but very easy to do ! I also neede to extend ground wire for my spa. also very easy. I saved myself a lot of $$$$$$ by doing so. You can do it too. Michael P.
- Reply(1)
- Inaccurate
- Michael P on Jan 25, 2017
- Purchased on Nov 15, 2015
BEST ANSWER: I'm not familiar with that spa ,I have a Nordic. I needed to rotate the intake or out flow, can't remember which but very easy to do ! I also neede to extend ground wire for my spa. also very easy. I saved myself a lot of $$$$$$ by doing so. You can do it too. Michael P.
- Reply(1)
- Inaccurate
- Michael P on Jan 25, 2017
- Purchased on Nov 15, 2015
Vote for the best answer above!
Read the pumps that this pump will replace. Will it replace the flo-master xp2. # 06110003-5?
JACK C
on May 28, 2018
Can the pump housing be turned 90 degrees so the outlet is facing horizontally?
Lenny A
on Sep 13, 2021
BEST ANSWER: Yes. You can remove the 4 long, 1/4inch hexhead bolts that pass through the motor & attach to the pump (wet end). You need only to pull them out a 1/2inch or so & the pump will rotate around the motor shaft. Turn the pump the desired 90 or 180 degrees & screw the 4 bolts back in.
- Reply
- Inaccurate
- Patric B on Oct 17, 2021
- Purchased on Dec 1, 2019
BEST ANSWER: Yes. You can remove the 4 long, 1/4inch hexhead bolts that pass through the motor & attach to the pump (wet end). You need only to pull them out a 1/2inch or so & the pump will rotate around the motor shaft. Turn the pump the desired 90 or 180 degrees & screw the 4 bolts back in.
- Reply
- Inaccurate
- Patric B on Oct 17, 2021
- Purchased on Dec 1, 2019
Vote for the best answer above!
How loud is this pump?
SailTheUniverse
on Jun 29, 2017
BEST ANSWER: I bought this motor and the pump came with it (though I did not need the pump as there was nothing wrong with the one I had but I used the new one anyway as it is already all put together). I was replacing the motor in my Nordic Spa. The original motor/pump was very quite. This replacement is just as quite. Fit perfectly.
- Reply
- Inaccurate
- Ren G on Jul 1, 2017
- Purchased on Dec 28, 2015
BEST ANSWER: I bought this motor and the pump came with it (though I did not need the pump as there was nothing wrong with the one I had but I used the new one anyway as it is already all put together). I was replacing the motor in my Nordic Spa. The original motor/pump was very quite. This replacement is just as quite. Fit perfectly.
- Reply
- Inaccurate
- Ren G on Jul 1, 2017
- Purchased on Dec 28, 2015
This pump is a replacement pump installed inside the enclosure of our Nordic hot tub. It is mounted on a rubber pad which is on top of the plywood base. It is connected to rigid PVC pipe. It makes a mild hum which can be heard outside the tub enclosure. We do not find the sound level to be objectionable.
- Reply
- Inaccurate
- BILL ZAISER on Jun 29, 2017
- Purchased on Dec 31, 2015
Can't hear it at all on speed 1, and fairly quiet on speed 2. We love it at night when we're in the pool and the fountain is on but we can't hear the pump. Glad someone finally designed a quiet pump option.
- Reply
- Inaccurate
- Mary C on Jun 29, 2017
- Purchased on Jan 19, 2016
We have been very pleased with this pump we installed in a spa. The noise is no louder than what we would say is normal for a pump.
- Reply
- Inaccurate
- Reinhard R on Jun 30, 2017
- Purchased on Jan 4, 2016
sounds like the original pump. i have put three of these pumps in over the years and do not notice anything odd. i hope this helped.
- Reply(1)
- Inaccurate
- brian s on Jun 29, 2017
- Purchased on Aug 29, 2015
Thanks so much! Also once you installed these, do you think that they are energy efficient foe the amount of work they can do?
- Reply
- SailTheUniverse on Jun 29, 2017
The pump is very quiet on low speed. On high speed it's quiet compared to the original pump that was in my spa.
- Reply
- Inaccurate
- Dave C on Jun 29, 2017
- Purchased on Nov 23, 2015
In comparison to other pumps this size, I think it is very quite
- Reply
- Inaccurate
- anthony p on Jun 29, 2017
- Purchased on Aug 22, 2015
Vote for the best answer above!
does this come with the fittings?? like the picture?? thank you
A shopper
on Apr 3, 2016
BEST ANSWER: Mine did, went right in the hot tub, used the old wiring harness...
- Reply
- Inaccurate
- Stephen F on Apr 5, 2016
- Purchased on Jul 18, 2014
BEST ANSWER: Mine did, went right in the hot tub, used the old wiring harness...
- Reply
- Inaccurate
- Stephen F on Apr 5, 2016
- Purchased on Jul 18, 2014
Vote for the best answer above!
what pump will replace aqua flo 06614000-5?
A shopper
on Jul 5, 2018
BEST ANSWER: A Google search found this replacement :
OLD OEM Code06614000-5
NEW OEM Code 06115000-1040
OLD OEM Code06614000-5
NEW OEM Code 06115000-1040
- Reply
- Inaccurate
- Guest on Jul 6, 2018
- Purchased on Jul 10, 2016
BEST ANSWER: A Google search found this replacement :
OLD OEM Code06614000-5
NEW OEM Code 06115000-1040
OLD OEM Code06614000-5
NEW OEM Code 06115000-1040
- Reply
- Inaccurate
- Guest on Jul 6, 2018
- Purchased on Jul 10, 2016
Vote for the best answer above!
Hi,
I have had the AquaFlo FloMaster XP2 Pump for a while now, and it has been working fine. Just recently, about a 3 or 4 days ago, it started making this clicking noise. It is still pumping water (at a slightly slower rate, but just barely noticeable) but it is making this very loud clicking noise. Any ideas on how to fix this?
Thanks,
Cooper
I have had the AquaFlo FloMaster XP2 Pump for a while now, and it has been working fine. Just recently, about a 3 or 4 days ago, it started making this clicking noise. It is still pumping water (at a slightly slower rate, but just barely noticeable) but it is making this very loud clicking noise. Any ideas on how to fix this?
Thanks,
Cooper
SailTheUniverse
on Jul 1, 2018
BEST ANSWER: no fixing to it for the price , its the regulator built on top of pump buy another pump for the price of getting it repaired and put back on
- Reply
- Inaccurate
- Charles W on Feb 27, 2019
- Purchased on Oct 3, 2016
BEST ANSWER: no fixing to it for the price , its the regulator built on top of pump buy another pump for the price of getting it repaired and put back on
- Reply
- Inaccurate
- Charles W on Feb 27, 2019
- Purchased on Oct 3, 2016
Vote for the best answer above!
will this pump replace model number 02115519-2 ?
A shopper
on Aug 29, 2017
BEST ANSWER: The pump listed is the exactly the same with only one difference, the pump listed is 115 Volts and the one you are replacing is 230. Hope this helps.
- Reply
- Inaccurate
- D'Lorean S Staff on Aug 30, 2017
BEST ANSWER: The pump listed is the exactly the same with only one difference, the pump listed is 115 Volts and the one you are replacing is 230. Hope this helps.
- Reply
- Inaccurate
- D'Lorean S Staff on Aug 30, 2017
Vote for the best answer above!
how many gpm is this pump?
trent r
on Mar 1, 2016

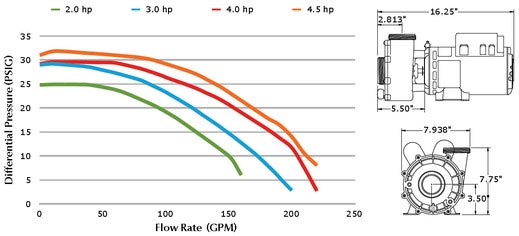

BEST ANSWER: The flow rate on this pump can fluctuate from 0-150 GPM, depending on the differential pressure (PSIG).
- Reply
- Inaccurate
- Brian W Staff on Mar 1, 2016
BEST ANSWER: The flow rate on this pump can fluctuate from 0-150 GPM, depending on the differential pressure (PSIG).
- Reply
- Inaccurate
- Brian W Staff on Mar 1, 2016
Vote for the best answer above!
How much would it cost to ship this item to Kodiak, Alaska? Residence vs Business?
Jessie F
on Feb 22, 2016
Vote for the best answer above!
06115000-1040 does it come with warranty?
c j
on Nov 30, 2015
BEST ANSWER: Two Year and Three Month Warranty, see Owner's Manual for a full description of warranty claims and coverage details. Be advise that the best thing you can do if winterizing is to take out the drain plugs on the pump housing to get all the water out (Which is stated in the winterizing instructions)
- Reply
- Inaccurate
- Stephen F on Dec 1, 2015
- Purchased on Jul 18, 2014
BEST ANSWER: Two Year and Three Month Warranty, see Owner's Manual for a full description of warranty claims and coverage details. Be advise that the best thing you can do if winterizing is to take out the drain plugs on the pump housing to get all the water out (Which is stated in the winterizing instructions)
- Reply
- Inaccurate
- Stephen F on Dec 1, 2015
- Purchased on Jul 18, 2014
Vote for the best answer above!
Questions For Similar Products
Parts Content

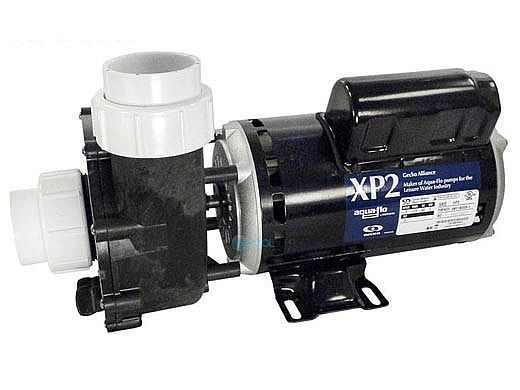

Gecko AquaFlo FloMaster XP2 | 48-Frame 115V 2.0 HP 1.5 OPHP 2-Speed | 06115000-1040
Sale $434.54
$299.00
$299.00
Purchase options
Related items
-
Spa Builders 34" Spa Pump Cord Assy | 230V 2 Speed 4 Pin Amp Connector | 38-0109A
$18.81 -
Waterway Gasket | .25" Thick 2" Diameter | Heater or Pump | 711-4020
$3.39 -
AquaFlo 2" Pump Union | 2-Pack | 5227-2000
$30.71 -
Waterway Threaded Barb Adapter 3/8" X 1/4" MPT Fitting | 672-4350
$5.69
Product description
Flo-Master® "XP" Series pumps easily outperform other comparable pumps on the market and allow spa manufacturers to offer superior overall performance and enhanced energy efficiency. These unique pumps are designed for today's large, many jetted spas requiring increased flow and are designed with a high volumetric volute to provide whisper quiet performance even at maximum flow rates.
OP.HP REFERS TO OPERATIONAL HORSE POWER
If you have an older XP2 pump and the label only has the HP rating and not the OP.HP rating then the new style will be by the OP.HP.
If you have both a HP rating and an OP.HP rating on the label then the new style is the same.
XP2 pumps are 48 frame motors only now however, in the past there were some 56 frame motors used. These are replacement wet ends that have been used by the manufacturer.
This pump is a direct replacement for the following Aqua-Flo Spa Pumps:
- 06110864-1040, 06111000-2040, 06111001-2040, 06111001-2340, 06111002-2040, 06111323-2040, 06111323-2340, 06115000-1040, 06115000-1340, 06115002-1040, 06115002-1340, 06115002-2040, 06115196-1300, 06115197-1300, 06115233-1340, 06115298-1040, 06115319-2340, 06115319-2341, 06115484-2040, 06115484-2110, 06115484-2340, 06115500-2040, 06115500-2340, 06115510-2040, 06115510-2300, 06115510-2340, 06115511-2040, 06115511-2340, 06115788-2040, 06115852-1300, 06115862-1040, 06115864-1040, 06115865-1040, 06115866-1040, 06115891-1040, 06117849-1300, 06117849-1340, 06118316-2300, 06118371-2000, 06118371-2300, 06118371-5000, 06118371-5300, 06118437-2300, 06118452-2300
Features and details
- 115V 2.0 HP
- 1.5 Operating Horsepower
- High 14.4 Amps Low 5.5 Amps 2-speed
- 2 intake and discharge
Specifications
Horse Power
2 HP
Speed
2 Speed
Voltage
115 V
Inlet Size
2"
Outlet Size
2"
Flange
Thru Bolt
Resources
5.0 / 5.0
6 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
6
0
0
0
0
Rated 5 out of 5
This motor is a two speed replacing a single speed, but hooked it on the high speed and it works great.
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (1) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Five Stars
Replacing my 5 year old spa pump that died on me. I've only had this product for a month but no issues so far. We had to rotate the discharge but it was very simple, just by removing screws. I am very happy with my purchase.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
November 1, 2015
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Greenville, MI Aqua Flo Pump
Got my new pump in (2) days....packaged well....popped it into my hot tub and was back in business...10 rating!
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Did it myself!
This is the very best price I found for this pump. Exact replacement in my Coleman spa. Easy to wire and install, although the weight made it a little awkward to maneuver inside the cabinet. Water connections were easy. She's been up and running for a week. Very pleased.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Running Great
I purchased and installed the AquaFlo FloMaster XP2 last fall and it has run well all fall and winter without any issues. Due to our elevation we have 60 degree daily temperature swings and our hot tub is always ready to go.
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Rated 5 out of 5
Perfect replacement pump with my old aquatera spa
Excellent customer service, fair price and the replacement pump worked seamlessly with my older aquatera spa. 10 more years of enjoyment! Thanks, guys!
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
- Was this review helpful? Yes (0) No (0)
- Flag as Inappropriate
Reviews for Similar Products
Do not include HTML, links, references to other stores, pricing or contact info.
My question is about:
If your question is about more than one item, click + to add them.
Browse 13 questions
Browse 13 questions
and 21 answers
How do you replace the seal from the wet end to the shaft?
A shopper
on Jun 7, 2016
BEST ANSWER: You need to take the impeller off. There is a you-tube video on it.
- Reply
- Inaccurate
- MARK J on Jul 25, 2020
- Purchased on Jul 5, 2020
BEST ANSWER: You need to take the impeller off. There is a you-tube video on it.
- Reply
- Inaccurate
- MARK J on Jul 25, 2020
- Purchased on Jul 5, 2020
Vote for the best answer above!
is this a direct replacement for 06614000-5?
A shopper
on Dec 17, 2015
BEST ANSWER: I don't really know how to cross reference that number. That pump will replace the 1.5 HP flomaster pump so long as the fittings are the same.
- Reply(1)
- Inaccurate
- WILLIAM P. on Dec 17, 2015
- Purchased on Nov 8, 2014
Again, I don't know if this is a direct replacement. However, I did order this pump for my hot tub as it seemed to be the right match, and I had great success. The pump showed up promptly, and installation was very easy. I did take a picture of the old pump wiring hookup before adding the new one, but there was a very direct match. I'm now enjoying the new pump and everything seems to be working fine (4 months in). I don't know if my experience translates to yours, but I found working with the company (by sending them a photo of my old pump, including the model/serial number) was very easy and I've been satisfied with the results. Good luck!
- Reply
- frankiem77 on Dec 17, 2015
BEST ANSWER: I don't really know how to cross reference that number. That pump will replace the 1.5 HP flomaster pump so long as the fittings are the same.
- Reply(1)
- Inaccurate
- WILLIAM P. on Dec 17, 2015
- Purchased on Nov 8, 2014
Again, I don't know if this is a direct replacement. However, I did order this pump for my hot tub as it seemed to be the right match, and I had great success. The pump showed up promptly, and installation was very easy. I did take a picture of the old pump wiring hookup before adding the new one, but there was a very direct match. I'm now enjoying the new pump and everything seems to be working fine (4 months in). I don't know if my experience translates to yours, but I found working with the company (by sending them a photo of my old pump, including the model/serial number) was very easy and I've been satisfied with the results. Good luck!
- Reply
- frankiem77 on Dec 17, 2015
It was for my hot tub. Everything was identical in terms of electrical and water hookups.
- Reply
- Inaccurate
- Gregory D on Dec 17, 2015
- Purchased on May 6, 2015
I honestly don't know the answer to this question
- Reply
- Inaccurate
- Gliath Gliathopoulos on Dec 17, 2015
- Purchased on Nov 5, 2014
Vote for the best answer above!
WIll this replace Watkins wavemaster 4000 model # 37334 in a Solana TX spa? Same volts, amp, and HP. Appears to look the same.
Brian H
on Jan 25, 2017
BEST ANSWER: I'm not familiar with that spa ,I have a Nordic. I needed to rotate the intake or out flow, can't remember which but very easy to do ! I also neede to extend ground wire for my spa. also very easy. I saved myself a lot of $$$$$$ by doing so. You can do it too. Michael P.
- Reply(1)
- Inaccurate
- Michael P on Jan 25, 2017
- Purchased on Nov 15, 2015
BEST ANSWER: I'm not familiar with that spa ,I have a Nordic. I needed to rotate the intake or out flow, can't remember which but very easy to do ! I also neede to extend ground wire for my spa. also very easy. I saved myself a lot of $$$$$$ by doing so. You can do it too. Michael P.
- Reply(1)
- Inaccurate
- Michael P on Jan 25, 2017
- Purchased on Nov 15, 2015
Vote for the best answer above!
Read the pumps that this pump will replace. Will it replace the flo-master xp2. # 06110003-5?
JACK C
on May 28, 2018
Can the pump housing be turned 90 degrees so the outlet is facing horizontally?
Lenny A
on Sep 13, 2021
BEST ANSWER: Yes. You can remove the 4 long, 1/4inch hexhead bolts that pass through the motor & attach to the pump (wet end). You need only to pull them out a 1/2inch or so & the pump will rotate around the motor shaft. Turn the pump the desired 90 or 180 degrees & screw the 4 bolts back in.
- Reply
- Inaccurate
- Patric B on Oct 17, 2021
- Purchased on Dec 1, 2019
BEST ANSWER: Yes. You can remove the 4 long, 1/4inch hexhead bolts that pass through the motor & attach to the pump (wet end). You need only to pull them out a 1/2inch or so & the pump will rotate around the motor shaft. Turn the pump the desired 90 or 180 degrees & screw the 4 bolts back in.
- Reply
- Inaccurate
- Patric B on Oct 17, 2021
- Purchased on Dec 1, 2019
Vote for the best answer above!
How loud is this pump?
SailTheUniverse
on Jun 29, 2017
BEST ANSWER: I bought this motor and the pump came with it (though I did not need the pump as there was nothing wrong with the one I had but I used the new one anyway as it is already all put together). I was replacing the motor in my Nordic Spa. The original motor/pump was very quite. This replacement is just as quite. Fit perfectly.
- Reply
- Inaccurate
- Ren G on Jul 1, 2017
- Purchased on Dec 28, 2015
BEST ANSWER: I bought this motor and the pump came with it (though I did not need the pump as there was nothing wrong with the one I had but I used the new one anyway as it is already all put together). I was replacing the motor in my Nordic Spa. The original motor/pump was very quite. This replacement is just as quite. Fit perfectly.
- Reply
- Inaccurate
- Ren G on Jul 1, 2017
- Purchased on Dec 28, 2015
This pump is a replacement pump installed inside the enclosure of our Nordic hot tub. It is mounted on a rubber pad which is on top of the plywood base. It is connected to rigid PVC pipe. It makes a mild hum which can be heard outside the tub enclosure. We do not find the sound level to be objectionable.
- Reply
- Inaccurate
- BILL ZAISER on Jun 29, 2017
- Purchased on Dec 31, 2015
Can't hear it at all on speed 1, and fairly quiet on speed 2. We love it at night when we're in the pool and the fountain is on but we can't hear the pump. Glad someone finally designed a quiet pump option.
- Reply
- Inaccurate
- Mary C on Jun 29, 2017
- Purchased on Jan 19, 2016
We have been very pleased with this pump we installed in a spa. The noise is no louder than what we would say is normal for a pump.
- Reply
- Inaccurate
- Reinhard R on Jun 30, 2017
- Purchased on Jan 4, 2016
sounds like the original pump. i have put three of these pumps in over the years and do not notice anything odd. i hope this helped.
- Reply(1)
- Inaccurate
- brian s on Jun 29, 2017
- Purchased on Aug 29, 2015
Thanks so much! Also once you installed these, do you think that they are energy efficient foe the amount of work they can do?
- Reply
- SailTheUniverse on Jun 29, 2017
The pump is very quiet on low speed. On high speed it's quiet compared to the original pump that was in my spa.
- Reply
- Inaccurate
- Dave C on Jun 29, 2017
- Purchased on Nov 23, 2015
In comparison to other pumps this size, I think it is very quite
- Reply
- Inaccurate
- anthony p on Jun 29, 2017
- Purchased on Aug 22, 2015
Vote for the best answer above!
does this come with the fittings?? like the picture?? thank you
A shopper
on Apr 3, 2016
BEST ANSWER: Mine did, went right in the hot tub, used the old wiring harness...
- Reply
- Inaccurate
- Stephen F on Apr 5, 2016
- Purchased on Jul 18, 2014
BEST ANSWER: Mine did, went right in the hot tub, used the old wiring harness...
- Reply
- Inaccurate
- Stephen F on Apr 5, 2016
- Purchased on Jul 18, 2014
Vote for the best answer above!
what pump will replace aqua flo 06614000-5?
A shopper
on Jul 5, 2018
BEST ANSWER: A Google search found this replacement :
OLD OEM Code06614000-5
NEW OEM Code 06115000-1040
OLD OEM Code06614000-5
NEW OEM Code 06115000-1040
- Reply
- Inaccurate
- Guest on Jul 6, 2018
- Purchased on Jul 10, 2016
BEST ANSWER: A Google search found this replacement :
OLD OEM Code06614000-5
NEW OEM Code 06115000-1040
OLD OEM Code06614000-5
NEW OEM Code 06115000-1040
- Reply
- Inaccurate
- Guest on Jul 6, 2018
- Purchased on Jul 10, 2016
Vote for the best answer above!
Hi,
I have had the AquaFlo FloMaster XP2 Pump for a while now, and it has been working fine. Just recently, about a 3 or 4 days ago, it started making this clicking noise. It is still pumping water (at a slightly slower rate, but just barely noticeable) but it is making this very loud clicking noise. Any ideas on how to fix this?
Thanks,
Cooper
I have had the AquaFlo FloMaster XP2 Pump for a while now, and it has been working fine. Just recently, about a 3 or 4 days ago, it started making this clicking noise. It is still pumping water (at a slightly slower rate, but just barely noticeable) but it is making this very loud clicking noise. Any ideas on how to fix this?
Thanks,
Cooper
SailTheUniverse
on Jul 1, 2018
BEST ANSWER: no fixing to it for the price , its the regulator built on top of pump buy another pump for the price of getting it repaired and put back on
- Reply
- Inaccurate
- Charles W on Feb 27, 2019
- Purchased on Oct 3, 2016
BEST ANSWER: no fixing to it for the price , its the regulator built on top of pump buy another pump for the price of getting it repaired and put back on
- Reply
- Inaccurate
- Charles W on Feb 27, 2019
- Purchased on Oct 3, 2016
Vote for the best answer above!
will this pump replace model number 02115519-2 ?
A shopper
on Aug 29, 2017
BEST ANSWER: The pump listed is the exactly the same with only one difference, the pump listed is 115 Volts and the one you are replacing is 230. Hope this helps.
- Reply
- Inaccurate
- D'Lorean S Staff on Aug 30, 2017
BEST ANSWER: The pump listed is the exactly the same with only one difference, the pump listed is 115 Volts and the one you are replacing is 230. Hope this helps.
- Reply
- Inaccurate
- D'Lorean S Staff on Aug 30, 2017
Vote for the best answer above!
how many gpm is this pump?
trent r
on Mar 1, 2016
BEST ANSWER: The flow rate on this pump can fluctuate from 0-150 GPM, depending on the differential pressure (PSIG).
- Reply
- Inaccurate
- Brian W Staff on Mar 1, 2016
BEST ANSWER: The flow rate on this pump can fluctuate from 0-150 GPM, depending on the differential pressure (PSIG).
- Reply
- Inaccurate
- Brian W Staff on Mar 1, 2016
Vote for the best answer above!
How much would it cost to ship this item to Kodiak, Alaska? Residence vs Business?
Jessie F
on Feb 22, 2016
Vote for the best answer above!
06115000-1040 does it come with warranty?
c j
on Nov 30, 2015
BEST ANSWER: Two Year and Three Month Warranty, see Owner's Manual for a full description of warranty claims and coverage details. Be advise that the best thing you can do if winterizing is to take out the drain plugs on the pump housing to get all the water out (Which is stated in the winterizing instructions)
- Reply
- Inaccurate
- Stephen F on Dec 1, 2015
- Purchased on Jul 18, 2014
BEST ANSWER: Two Year and Three Month Warranty, see Owner's Manual for a full description of warranty claims and coverage details. Be advise that the best thing you can do if winterizing is to take out the drain plugs on the pump housing to get all the water out (Which is stated in the winterizing instructions)
- Reply
- Inaccurate
- Stephen F on Dec 1, 2015
- Purchased on Jul 18, 2014
Vote for the best answer above!
Questions For Similar Products
Parts Content
HABLAMOS ESPAÑOL
Hay muchas maneras diferentes de contactarnos, y nos gustaría hablar con usted sobre las preguntas de su compra, ayudarle a diagnosticar los problemas de su equipo y escuchar acerca de cómo podemos mejorar y todo lo que está en su mente.
Click Here
Click Here
OPEN 6 DAYS A WEEK
Phone Support (Central Time)
6am - 6pm Monday - Saturday
6am - 6pm Monday - Saturday
NEWSLETTER
ABOUT THE STORE
Pool Supply Unlimited is an e-commerce company that loves water. We love to pump it, filter it, heat it, chlorinate it, light it up and stare at it while we're barbequing a fat, juicy steak. There are real pool professionals working here. Our guys have seen thousands of pools in their careers, no exaggeration. We are based in San Antonio, TX and can land most products to your door (within the 48 contiguous states) in less than a week.
Pool Supply Unlimited is an e-commerce company that loves water. We love to pump it, filter it, heat it, chlorinate it, light it up and stare at it while we're barbequing a fat, juicy steak. There are real pool professionals working here. Our guys have seen thousands of pools in their careers, no exaggeration. We are based in San Antonio, TX and can land most products to your door (within the 48 contiguous states) in less than a week.
COMPANY
ABOUT US
CONTACT US
CONTACTO
CUSTOMER REVIEWS
FAQ
HOURS OF OPERATION
PRIVACY
SITE MAP
TESTIMONIALS
ABOUT US
CONTACT US
CONTACTO
CUSTOMER REVIEWS
FAQ
HOURS OF OPERATION
PRIVACY
SITE MAP
TESTIMONIALS
MY ACCOUNT
LOGIN
FORGOT PASSWORD
LOYALTY POINTS
RETURN MERCHANDISE
PROMOTIONS
COUPONS
SALES
NEWSLETTER
BREAD FINANCING
PROTECTION PLANS
LOGIN
FORGOT PASSWORD
LOYALTY POINTS
RETURN MERCHANDISE
PROMOTIONS
COUPONS
SALES
NEWSLETTER
BREAD FINANCING
PROTECTION PLANS
TERMS
INTERNATIONAL ORDERS
LOYALTY POINTS TERMS
RETURNS POLICY
SHIPPING POLICY
RESOURCES
BLOG
PRODUCT MANUALS
INTERNATIONAL ORDERS
LOYALTY POINTS TERMS
RETURNS POLICY
SHIPPING POLICY
RESOURCES
BLOG
PRODUCT MANUALS
The manufacturer asked us not to share
the price until it's in your cart.
It's just too good of a deal.
the price until it's in your cart.
It's just too good of a deal.
- Excellent pre-sale and after-sale service
- Provides regular training on product line
- Helps with warranty resolution
- Refers business to our websites
- Provides advantageous pricing
- Provides designated contact person
- Includes retail websites in their dealer locator
- Excellent pre-sale and after-sale service
- Provides regular training on product line
- Helps with warranty resolution
- Provides designated contact person
- Includes retail websites in their dealer locator
- Good pre-sale and after-sale service
- Provides designated contact person
- Includes retail websites in their dealer locator
