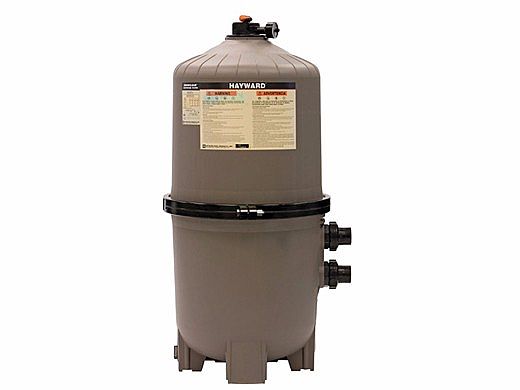

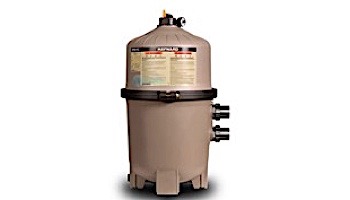

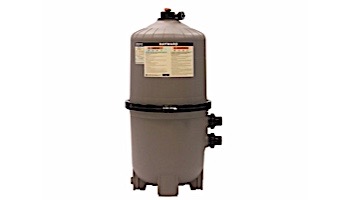

Hayward SwimClear Multi-Element Cartridge Filter | 325 sq. ft. | W3C3030

Hayward SwimClear Multi-Element Cartridge Filter | 325 sq. ft. | W3C3030 Hayward SwimClear Multi-Element Cartridge Filter | 325 sq. ft. | W3C3030
$999.00

Quantity:
Shipping Free Shipping *
Parts AvailableParts Available
Gold Preferred Manufacturer
  • Maximum flow with minimal maintenance
  • Heavy-duty, tamper-proof, one-piece clamp
  • CPVC 2" or 2-1/2" union connections
  • Reinforced co-polymer tank
  • Online part number W3C3030 is the direct replacement for part number C3030.
RELATED ITEMS
  • Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370
    Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370

    $295.00
OVERVIEW
Crystal Clear Water, Super Durable Design

SwimClear cartridge filters provide the most energy efficient flow and save up to 2,500 gallons of water per year by eliminating the need to backwash. SwimClear filters offer a choice of 225, 325, 425, 525 and 700 sq. ft. of heavy duty dirt holding capacity and extra-long filter cycle.

Features and Benefits
  • Top manifold configuration provides excellent filtration and hydraulic performance for reduced cost of operation
  • Cleanable cartridge elements eliminate the requirement for backwashing
  • Filter tanks are made from the most durable materials to meet the demands of the toughest applications and environmental conditions
  • High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
  • Heavy-duty, tamper-proof, one piece flange clamp securely fastens tank top and bottom and allows quick access to all internal components
Maximum Flow With Minimal Maintenance

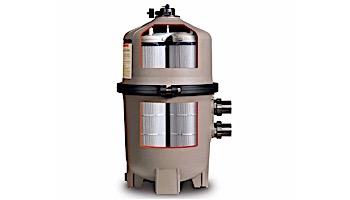

Featuring an assembly of reusable polyester cartridge elements with precision-engineered cores, SwimClear multi-element cartridge filters provide heavy-duty dirt-holding capacity and extra-long filter cycles. In fact, as the industry's largest filter, the C7030 model offers the longest time possible between cleanings. SwimClear filters' top manifold configuration boasts industry-leading hydraulic performance, facilitating maximum flow through all cartridge elements for superior water clarity and increased energy savings.

Reinforced co-polymer tank - is durable enough to withstand tough environmental conditions

Low-profile tank base - makes removal of cartridge elements fast and simple

Heavy-duty, tamper-proof, one-piece clamp - provides quick access to internal components without disturbing plumbing connections

CPVC 2" or 2-1/2" union connections - provide maximum hydraulic performance with 2" plumbing

Specifications - SwimClear Cartridge Filters
Filter Type Cartridge Element: 225, 325, 425 and 525 ft² (4 cartridge elements), 700 ft² (8 cartridge elements)
Filter Tank High-Strength, Injection-Molded durable glass reinforced copolymer
Filter Element Reinforced Polyester
Performance Range 84 to 150 GPM, 318 to 568 LPM
Dimensions C2030: 24" W x 32-1/2" H (58 cm x 81 cm)
C3030: 24" W x 34-1/2" H (58 cm x 87 cm)
C4030: 24" W x 40-1/2" H (58 cm x 102 cm)
C5030: 24" W x 46-1/2" H (58 cm x 117 cm)
C7030: 24" W x 52-1/2" H (58 cm x 134 cm)


Brand: HAYWARD
SPECIFICATIONS
Square Foot
325
Color
Gray
Plumbing
1.5"
Type
In-Ground
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 10 questions Browse 10 questions and 4 answers
How do I tell what size filter I need for my pool?
A shopper on Jun 15, 2016
BEST ANSWER: Go. By. The total. Gallons. I
I need replacement cartridges for a Hayward Swim Clear filter circa 2005. The number I am showing on the the old cartridges is 1225, but i do not see that model on the website. What model replacement filter should I get?
Vin L on Jun 13, 2016
how much de is needed for this filter?
A shopper on Jun 15, 2016
I currently have a 1hp Hayward pump. Is this adequate for this filter. Is there any advantage to Pentair IntelliFlo pumps?
John V on Feb 13, 2018
Hayward SwimClear Multi-Element Cartridge Filter | 325 sq. ft. | W3C3030
Hayward SwimClear Multi-Element Cartridge Filter | 325 sq. ft. | W3C3030
Pentair IntelliFlo Variable Speed High Performance Pump VS+SVRS 3.2kW 3HP Max 230V | EC-011057
Pentair IntelliFlo Variable Speed High Performance Pump VS+SVRS 3.2kW 3HP Max 230V | EC-011057
BEST ANSWER: First, I am not an expert, but I purchased the Intelliflo pump due to the fact that I have a large pool and a water feature and so I needed more HP. Also it is energy star rated so it is less expensive to operate and a rebate is available for me, and that model of variable speed pump has safety vacuum release system, which is a safety measure designed to help avoid entrapment at the main pool drain.

You should decide whether these features are important to you and that the value of these features is worth any additional cost.

Also, the size of your pool is a better gauge of whether a pump is sufficiently sized, not the filter size. You should ensure that the pool has adequate turnover of volume of water through the filter to keep the water clean.
Is this brand new Hayward equipment?
Barbara K on Sep 18, 2019
BEST ANSWER: Yes
does the 4 filters come with tank?
A shopper on Apr 2, 2016
BEST ANSWER: Yes
what selector valve do i need for the w3c3030 filter?
Tim H on Apr 7, 2020
I have a sand filter that uses 350 lbs. of sand. what size cartridge filter will i need to replace it?
Frank H on Jun 5, 2017
What are the dimensions from the bottom of the unit to centerline of the intake and discharge connections?
Joe B on May 21, 2017
Diamatatious earth quantity for pool filters?
A shopper on May 6, 2017
REVIEWS
4.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
1
0
0
0
Rated 4 out of 5
Hayward Pentair
Installation was very straightforward. I had an old Pentair sand filter, took about 1-2 hours for entire switch out. Beats a sand filter 100 times over. Overall it was what I expected as far as filtration, and the price was the best I found.
May 7, 2016
