Home Hayward SwimClear Multi-Element Cartridge Filter | 525 sq. ft. | W3C5030
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

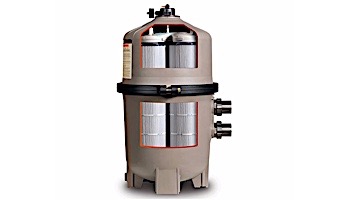

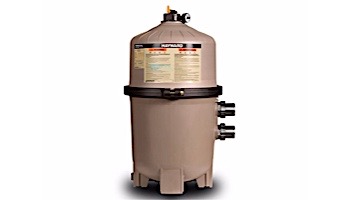

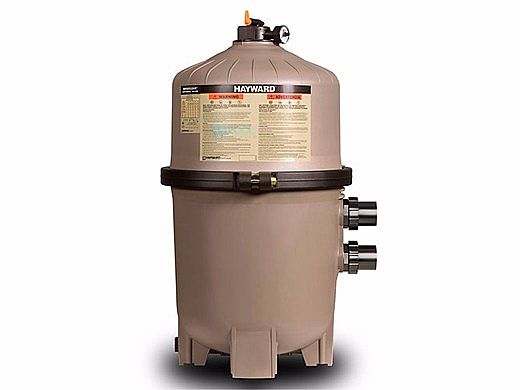

Hayward SwimClear Multi-Element Cartridge Filter | 525 sq. ft. | W3C5030

Hayward SwimClear Multi-Element Cartridge Filter | 525 sq. ft. | W3C5030 Hayward SwimClear Multi-Element Cartridge Filter | 525 sq. ft. | W3C5030
$1,599.00

Quantity:
Shipping Free Shipping *
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Maximum flow with minimal maintenance
  • Heavy-duty, tamper-proof, one-piece clamp
  • CPVC 2" or 2-1/2" union connections
  • Reinforced co-polymer tank
  • Online part number W3C5030 is the direct replacement for part number C5030.
RELATED ITEMS
  • Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370
    Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370

    $315.00
OVERVIEW
Crystal Clear Water, Super Durable Design

SwimClear cartridge filters provide the most energy efficient flow and save up to 2,500 gallons of water per year by eliminating the need to backwash. SwimClear filters offer a choice of 225, 325, 425, 525 and 700 sq. ft. of heavy duty dirt holding capacity and extra-long filter cycle.

Features and Benefits
  • Top manifold configuration provides excellent filtration and hydraulic performance for reduced cost of operation
  • Cleanable cartridge elements eliminate the requirement for backwashing
  • Filter tanks are made from the most durable materials to meet the demands of the toughest applications and environmental conditions
  • High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
  • Heavy-duty, tamper-proof, one piece flange clamp securely fastens tank top and bottom and allows quick access to all internal components
Maximum Flow With Minimal Maintenance
Featuring an assembly of reusable polyester cartridge elements with precision-engineered cores, SwimClear multi-element cartridge filters provide heavy-duty dirt-holding capacity and extra-long filter cycles. In fact, as the industry's largest filter, the C7030 model offers the longest time possible between cleanings. SwimClear filters' top manifold configuration boasts industry-leading hydraulic performance, facilitating maximum flow through all cartridge elements for superior water clarity and increased energy savings.

Reinforced co-polymer tank - is durable enough to withstand tough environmental conditions

Low-profile tank base - makes removal of cartridge elements fast and simple

Heavy-duty, tamper-proof, one-piece clamp - provides quick access to internal components without disturbing plumbing connections

CPVC 2" or 2-1/2" union connections - provide maximum hydraulic performance with 2" plumbing

Specifications - SwimClear Cartridge Filters
Filter Type Cartridge Element: 225, 325, 425 and 525 ft² (4 cartridge elements), 700 ft² (8 cartridge elements)
Filter Tank High-Strength, Injection-Molded durable glass reinforced copolymer
Filter Element Reinforced Polyester
Performance Range 84 to 150 GPM, 318 to 568 LPM
Dimensions C2030: 24" W x 32-1/2" H (58 cm x 81 cm)
C3030: 24" W x 34-1/2" H (58 cm x 87 cm)
C4030: 24" W x 40-1/2" H (58 cm x 102 cm)
C5030: 24" W x 46-1/2" H (58 cm x 117 cm)
C7030: 24" W x 52-1/2" H (58 cm x 134 cm)


Brand: HAYWARD
SPECIFICATIONS
Square Foot
525
Color
Gray
Plumbing
1.5"
Type
In-Ground
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 4 questions Browse 4 questions and 1 answer
Is this available now?
A shopper on Mar 28, 2021
do you have the 525 sq ft Haywood filter in stock + does the filters come with it?
Thomas G on Nov 4, 2021
How do you set it to vacuum to waste?
Brian on Apr 11, 2020
BEST ANSWER: Cartridge filters do not require a multiport valve like sand filters or D.E. filters. Therefore, vacuuming to waste is usually not an option. The exception would be if someone installed a 3-way valve after the pump but before the filter. If you are contemplating purchasing a cartridge filter and want to have the potential to vacuum to waste, part number 176106 can be used for this purpose.
Ocean Blue Lube Free 3-Way Valve 1.5" x 2" | 176106
Ocean Blue Lube Free 3-Way Valve 1.5" x 2" | 176106
good morning, are you guys located in Phoenix AZ?
A shopper on Sep 17, 2021
REVIEWS
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
1
0
0
0
0
Rated 5 out of 5
C5030
Pricey maybe, but totally worth it! Unit was in perfect shape when I took it out of the box, and appears to be very well made. This cartridge filter is so easy and the water and NEVER looked better. It keeps the pool sparkling and cuts way down on maintenance.
February 7, 2015
RESOURCES
WARRANTY
Warranty applies only to products that were purchased from Hayward authorized sellers. Pool Supply Unlimited is a Hayward Authorized Online Reseller.

See Warranty Information PDF for warranty details.

For Hayward warranty registration information, and to submit online, please visit www.hayward-pool.com

This information was updated on 4/22/2022. For the most current information and full warranty policy please visit www.hayward-pool.com


 Adobe Acrobat PDF Warranty Information
