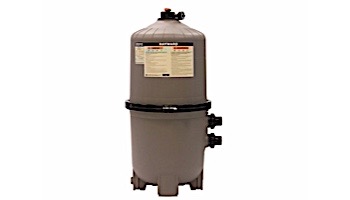

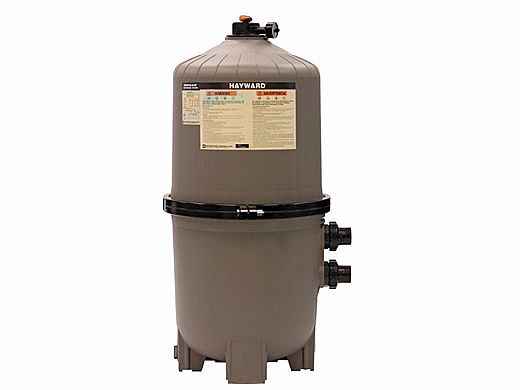

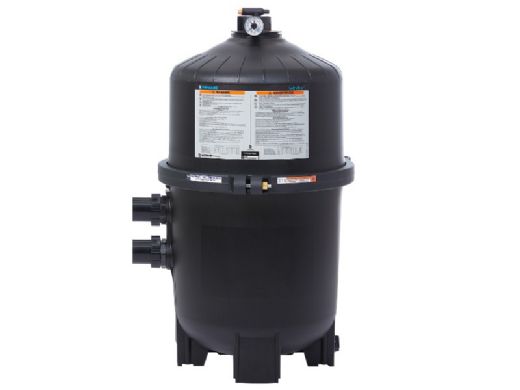

Hayward SwimClear Multi-Element Cartridge Filter | 425 sq. ft. | W3C4030

Hayward SwimClear Multi-Element Cartridge Filter | 425 sq. ft. | W3C4030 Hayward SwimClear Multi-Element Cartridge Filter | 425 sq. ft. | W3C4030

Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Maximum flow with minimal maintenance
  • Heavy-duty, tamper-proof, one-piece clamp
  • CPVC 2" or 2-1/2" union connections
  • Reinforced co-polymer tank
  • Online part number W3C4030 is the direct replacement for part number C4030.
  • Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370
    Waterco MultiCyclone 50 Pre-Filter 2-Inch | 200375 200370

Crystal Clear Water, Super Durable Design
SwimClear cartridge filters provide the most energy efficient flow and save up to 2,500 gallons of water per year by eliminating the need to backwash. SwimClear filters offer a choice of 225, 325, 425, 525 and 700 sq. ft. of heavy duty dirt holding capacity and extra-long filter cycle.
Features and Benefits
  • Top manifold configuration provides excellent filtration and hydraulic performance for reduced cost of operation
  • Cleanable cartridge elements eliminate the requirement for backwashing
  • Filter tanks are made from the most durable materials to meet the demands of the toughest applications and environmental conditions
  • High capacity, rapid release manual air relief valve bleeds air with a quick quarter turn of the lever
  • Heavy-duty, tamper-proof, one piece flange clamp securely fastens tank top and bottom and allows quick access to all internal components
Maximum Flow With Minimal Maintenance

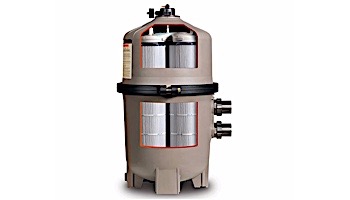

Featuring an assembly of reusable polyester cartridge elements with precision-engineered cores, SwimClear multi-element cartridge filters provide heavy-duty dirt-holding capacity and extra-long filter cycles. In fact, as the industry's largest filter, the C7030 model offers the longest time possible between cleanings. SwimClear filters' top manifold configuration boasts industry-leading hydraulic performance, facilitating maximum flow through all cartridge elements for superior water clarity and increased energy savings.
Reinforced co-polymer tank - is durable enough to withstand tough environmental conditions
Low-profile tank base - makes removal of cartridge elements fast and simple
Heavy-duty, tamper-proof, one-piece clamp - provides quick access to internal components without disturbing plumbing connections
CPVC 2" or 2-1/2" union connections - provide maximum hydraulic performance with 2" plumbing
Specifications - SwimClear Cartridge Filters
Filter Type Cartridge Element: 225, 325, 425 and 525 ft² (4 cartridge elements), 700 ft² (8 cartridge elements)
Filter Tank High-Strength, Injection-Molded durable glass reinforced copolymer
Filter Element Reinforced Polyester
Performance Range 84 to 150 GPM, 318 to 568 LPM
Dimensions C2030: 24" W x 32-1/2" H (58 cm x 81 cm)
C3030: 24" W x 34-1/2" H (58 cm x 87 cm)
C4030: 24" W x 40-1/2" H (58 cm x 102 cm)
C5030: 24" W x 46-1/2" H (58 cm x 117 cm)
C7030: 24" W x 52-1/2" H (58 cm x 134 cm)

Square Foot
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 9 questions Browse 9 questions
which filter u recommended for my pool?
theodore w on May 6, 2016
This or the Pentair 160301?
A shopper on Apr 24, 2017
Does this come with the cartridges?
Joseph H on Jul 10, 2021
wish filter u recommended for my pool?
theodore w on May 6, 2016
any chance this in stock? or any of these size ones?Hayward SwimClear Multi-Element Cartridge Filter | 425 sq. ft. | W3C4030
A shopper on Mar 8, 2021
which filter for my pool of 24,000 gallons?
A shopper on Aug 6, 2021
Please show the one piece clamp?
MARCIE L. on May 3, 2021
Why does air build up in the filter?
A shopper on Feb 9, 2021
How often is a tank replaced?
A shopper on Jan 22, 2021
5.0 / 5.0
4 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Rated 5 out of 5
Works great!
This filter is working great! We had an old DE filter that was dumping sand into the pool. Once we installed this one our pool cleared up and is looking great. I highly recommend. Our pool is 30k gallons.
August 15, 2021
9 months ago
Rated 5 out of 5
pool filter
I live in canada and the filter came in to phoenix as i came from the airport it took only a few minutes to hook it up. I love this filter .I hope it serves me as well as the old one did. thanks for the good service. Peter Bardoel
September 22, 2018
over 3 years ago
Rated 5 out of 5
Love it
I cleaned cartridges with a garden hose, re-installed and are working great, the pool is clean and there is no noticeable difference in quality between the old sand and the new cartridge filter, water is very clear. The cartridge filter does a much better job at filtering and I do not have to waste water to back flush the sand filter. Love it.
May 7, 2017
Rated 5 out of 5
Good Filter
This item was a great value. I had to replace my old obsolete unit and this fit perfectly and installed very easy. Hayward is a wonderful brand, we also love their pumps as well. Thanks PSU!<br>
April 6, 2015
Warranty applies only to products that were purchased from Hayward authorized sellers. Pool Supply Unlimited is a Hayward Authorized Online Reseller.
See Warranty Information PDF for warranty details.
For Hayward warranty registration information, and to submit online, please visit www.hayward-pool.com
This information was updated on 4/22/2022. For the most current information and full warranty policy please visit www.hayward-pool.com

 Adobe Acrobat PDF Warranty Information
