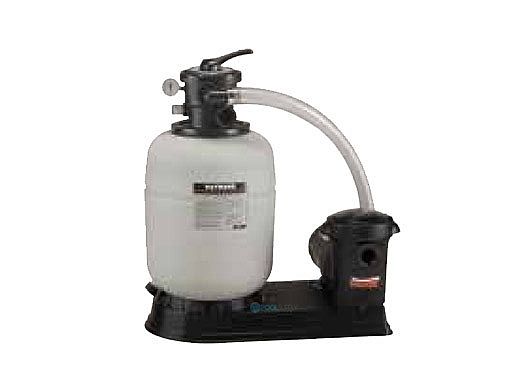

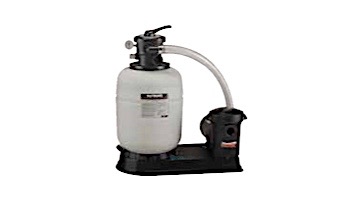

The Clear Choice In Sand Filtration
Pro-Series filters are performance matched with our above-ground pump series to ensure a system that maximizes its filtration ability. They utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for long lasting performance. A broad selection of filter sizes, pumps, and accessories allows you to choose the system that best suits your above-ground pool needs.
Features
- 7-position VariFlo valve provides maximum flow at lower pressure drop
- Large pressure sand/water drain for rapid winterizing or servicing
- Integral top diffuser ensures even distribution of water over the entire sand bed for maximum use of the filtration area
- Pump-to-filter union connection provides simple installation and winterization
- Exclusive full-flow 360 deg self cleaning laterals provide energy efficient operation and thorough backwashing
Specifications:
Brand |
Hayward |
Mfg. Number |
S166T1580S |
Series |
ProSeries |
Filter Type |
High-rate sand: No. 20 silica sand (.45 mm - .55 mm) |
Filter Tank |
16 inch Molded polymeric |
Filter Control Valve |
SP0714T |
Underdrain |
self-cleaning slotted laterals, precision installed in ball-joint assembly |
Control Valve |
Seven-position, top-mount VariFlo valve with lever-action handle |
Valve fastening |
Flange clamp design |
Pump and motor |
PowerFlo LX - Series Pump - 115 volts |
Mounting base |
Injection-molded thermoplastic |
Effective Filtration |
1.40 sq.ft. |
Design Flow Rate |
30 GPM |
Turnover (in gallons) |
8 hours: 14,400 - 12 hours: 21,600 |
Maximum Working PSI |
50 |
Superior filtration from the inside out
The ProSeries filter features an integral top diffuser that evenly distributes unfiltered water over the sand media bed in a cascading, umbrella-like pattern. This allows the greatest filtration possible from every square inch of sand. Then the self-cleaning underdrain assembly, with its 360 deg slotted laterals, provides a fast, balanced flow of clear water back to the pool while allowing for more thorough backwashing. Best of all, the ProSeries full-flow technology reduces your energy costs because the filter operates for shorter periods.
Seven-position valve puts you in control
The patented, multiport control valve developed by Hayward was designed with seven pool filter positions. An easy-to-use lever-action handle lets you quickly dial any function.
Long-lasting convenience
You can easily access the ProSeries filter assembly for simple servicing via the unique folding ball joint in the laterals. A corrosion-proof housing protects the filter from severe weather for years to come.
