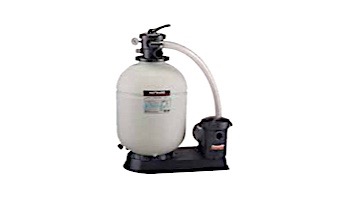

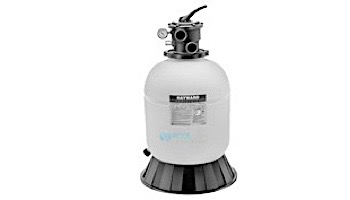

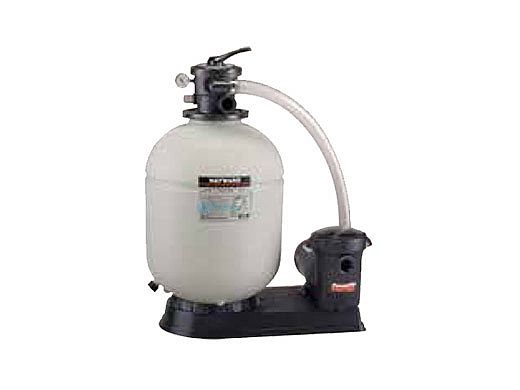

The Clear Choice In Sand Filtration
Pro-Series filters are performance matched with our above-ground pump series to ensure a system that maximizes its filtration ability. They utilize a precision engineered umbrella-fold self-cleaning lateral system to provide efficient flow and evenly distributed water for long lasting performance. A broad selection of filter sizes, pumps, and accessories allows you to choose the system that best suits your above-ground pool needs.
- 7-position VariFlo valve provides maximum flow at lower pressure drop
- Large pressure sand/water drain for rapid winterizing or servicing
- Integral top diffuser ensures even distribution of water over the entire sand bed for maximum use of the filtration area
- Pump-to-filter union connection provides simple installation and winterization
- Exclusive full-flow 360° self cleaning laterals provide energy efficient operation and thorough backwashing
||High-rate sand: No. 20 silica sand (.45 mm - .55 mm)
||21 inch Molded polymeric
|Filter Control Valve
||self-cleaning slotted laterals, precision installed in ball-joint assembly
|Seven-position, top-mount VariFlo valve with lever-action handle
||Flange clamp design
|Pump and motor
||Power-Flo Matrix Series Pump - 115 volts
|Design Flow Rate
|Turnover (in gallons)
||8 hours: 21,120 - 12 hours: 31,680
|Maximum Working PSI
Superior filtration from the inside out
The ProSeries filter features an integral top diffuser that evenly distributes unfiltered water over the sand media bed in a cascading, umbrella-like pattern. This allows the greatest filtration possible from every square inch of sand. Then the self-cleaning underdrain assembly, with its 360° slotted laterals, provides a fast, balanced flow of clear water back to the pool while allowing for more thorough backwashing. Best of all, the ProSeries full-flow technology reduces your energy costs because the filter operates for shorter periods.
Seven-position valve puts you in control
The patented, multiport control valve developed by Hayward was designed with seven pool filter positions. An easy-to-use lever-action handle lets you quickly dial any function.
You can easily access the ProSeries filter assembly for simple servicing via the unique folding ball joint in the laterals. A corrosion-proof housing protects the filter from severe weather for years to come.
