Home HydroQuip 5.5 kW Baptistry Heating Control System | Without Pump Option | BCS6000-U
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

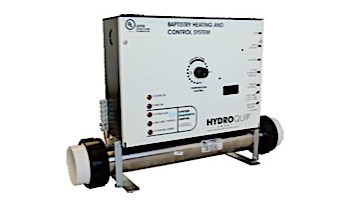

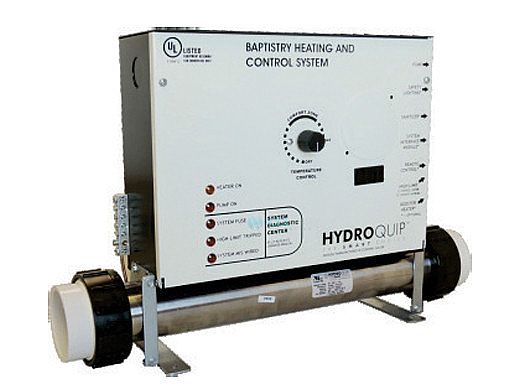

HydroQuip 5.5 kW Baptistry Heating Control System | Without Pump Option | BCS6000-U

HydroQuip 5.5 kW Baptistry Heating Control System | Without Pump Option | BCS6000-U

  • 5.5 or 11KW Heater in 304SS Housing
  • Full Range Thermostat
  • High Limit Protected
  • Pressure Switch Activated
  • Note: Pump option not included
Q & A
Baptismal Control Systems by Model

 Voltage240*  240*240* 240*
 Heater Wattage
 5.5kW 11kW 5.5kW11kW
 7-Day Timer

Features and Options:
  • 5.5 or 11KW Heater in 304SS Housing
  • Full Range Thermostat
  • High Limit Protected
  • Pressure Switch Activated
  • 7-Day Timer (BCS6000-U/5T models only)
    • BCS6000-U/5T Series Warning: Systems with Timers are not to be used on fill & drain Baptismals
  • System Diagnostics Indicators
  • Heater “ON” Indicator Light
  • Detailed Installation Manual
  • Detailed Owner’s Manual
  • Detailed Wiring Diagram
Available Options:
  • Auto-Fill Kit
  • Water Level Kit
  • Drain Kit
  • Step Lighting
  • Cartridge Filter
  • UV Sanitizer
Approval Listings:
  • UL Listed, Indoor Only, UL1563
Electrical Specifications:
  • Single Phase
  • *4-Wire Service
  • 50/60HZ
Minimum Space Required:
  • 15”H X 18”W X 6”D
Total AMP Draw:
  • BCS6000-U
    • 23A
  • BCS6005
    • 46A
  • BCS6000-UT
    • 23A
  • BCS6005T
    • 46A
  • BCS6000-U
    • 15”W X 12”H X 4”D
  • BCS6005
    • 17”W X 12”H X 4”D
  • BCS6000-UT
    • 15”W X 12”H X 4”D
  • BCS6005T
    • 17”W X 12”H X 4”D
Shipping Weight:
  • BCS6000-U Series
    • Approx 18 LBS.
  • 1 Year Limited Warranty

Brand: Hydro-Quip
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 3 questions Browse 3 questions and 2 answers
Is it compatible with any pump?
A shopper on Nov 15, 2019
Can this unit be installed with the control box upside down?
A shopper on Mar 7, 2019
BEST ANSWER: I am not a professional installer. The pump is plumbed to the control box and circulates the was through the control. The system is closed and the heater element is mounted to stand in the middle of the tube of the control box. I see no reason it could be mounted upside down. It would need to secured well and close enough to plug in the pigtail from the pump to the control box. I had my own questions and called hydro quip and they helped me.
Is this item in stock?
A shopper on Sep 9, 2021
5.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
Rated 5 out of 5
Easy to switch
It was easy to install and works well. I had to do some replumbing but it wasn’t difficult. It did take a week and a half to get it because pool supply unlimited didn’t have it in stock
March 8, 2019
over 3 years ago
To all original purchasers, HYDROQUIP warrants its products to be free from defects in material and workmanship for a period of one year from the date of purchase.
HYDROQUIP will repair or replace the part, which in our opinion, is defective.
This warranty excludes damage as a result of: normal wear, freezing, low voltage, chemical abuse, accident, negligence, alteration, improper installation, use or care.
To obtain warranty service, return defective products within the warranty period to HYDROQUIP.
Purchaser is responsible for removal or re-installation labor, freight charges, or any other such costs incurred in obtaining warranty service.
HYDROQUIP assumes no responsibility for incidental or consequential damages. Some states do not allow the exclusion of incidental or consequential damages, so the above limitations and exclusions may not apply to you. This warranty gives you specific legal rights and you may also have other rights, which vary from state to state.
This information was updated on 10/21/19. For the most current information and full warranty policy please visit www.hydroquip.com.
