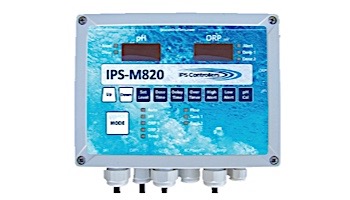

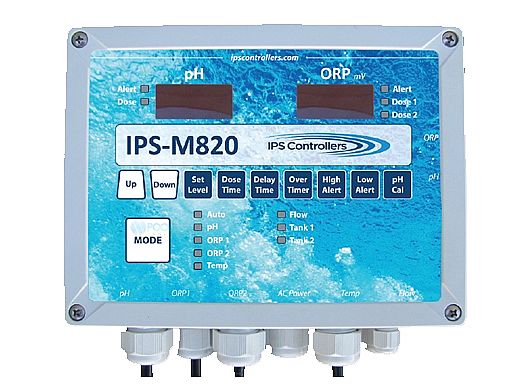

IPS Controllers M820 Automated pH with Dual ORP Controller for Commercial and Custom Residential | IPS-M820

$1,565.00

M820 Automated pH with Dual ORP Controller for Commercial and Custom Residential

Our IPS M820 offers automated control of pH with the convenience of the unique dual ORP, allowing operators to install multiple output devices on the same pool. With dual ORP, you can use a primary sanitizer, such as salt chlorine generator, with a secondary sanitizer, such as liquid chlorine, for rapid response to increased bather load. The second ORP may also be used as a safety backup (second pump and tank) for liquid systems.

The M820 is compatible with all sanitizing methods, including liquid, tablets, granular, and salt chlorine generators and can be used with Muriatic Acid or CO2.

Options include web-based remote monitoring and a chemical pump. The gold-tipped ORP probe for salt pools is required.

Quick and simple to operate, installing the M820 is a breeze, preassembled on a 16" x 12" mounting board, allowing you to hang it right easy installation right out of the box and system set up takes just minutes.

Maintain consistent pH and sanitizer levels through out the day, assuring the chemicals are balanced and the water is clean and clear

Automatically monitor, adjust and dispense the correct amount of chemicals based on user demand.

Perfect for pools, spas and water features of all sizes, anywhere—hotels, condominiums, aquatic centers, schools, public facilities, homes and more

Specifications

pH set level 7.0- 8.0
ORP set level 400-900
Default high/low alert settings
Readout – LED with digital display
Alarm – LED alert display
Push button overfeed adjustment
Push button high/low alert adjustment
Dose Rate – timed or continuous
Electrical Input/Output 110 VAC
Electrical Input/Output 230 VAC
Electrical Output 110V, 230V, & Dry Contact
System pre-mounted on 16”x12” hanging board
Compatible with all sanitizing methods
Delay time – 1-99 minutes
Tank level inputs – 2
Lock-out feature Can be used with Muriatic Acid or CO2
Chemical pump option
Gold-tipped ORP probe for salt pools (required)
Dual ORP, for secondary sanitizer or backup for liquid systems
Accessories available
NSF Certified for the highest level of code compliance
Made in the USA
Web-based remote monitoring is an available option
Web-based remote programming is an available option
Temperature monitoring and dispay is an available option
External visual and audible alarm is an available option

Brand: IPS Controllers

REVIEWS

Q&A

IPS Controllers M820 Automated pH with Dual ORP Controller for Commercial and Custom Residential | IPS-M820

$1,565.00

Quantity

Product description

M820 Automated pH with Dual ORP Controller for Commercial and Custom Residential

Maintain consistent pH and sanitizer levels through out the day, assuring the chemicals are balanced and the water is clean and clear

Automatically monitor, adjust and dispense the correct amount of chemicals based on user demand.

Perfect for pools, spas and water features of all sizes, anywhere—hotels, condominiums, aquatic centers, schools, public facilities, homes and more

Specifications

pH set level 7.0- 8.0
ORP set level 400-900
Default high/low alert settings
Readout – LED with digital display
Alarm – LED alert display
Push button overfeed adjustment
Push button high/low alert adjustment
Dose Rate – timed or continuous
Electrical Input/Output 110 VAC
Electrical Input/Output 230 VAC
Electrical Output 110V, 230V, & Dry Contact
System pre-mounted on 16”x12” hanging board
Compatible with all sanitizing methods
Delay time – 1-99 minutes
Tank level inputs – 2
Lock-out feature Can be used with Muriatic Acid or CO2
Chemical pump option
Gold-tipped ORP probe for salt pools (required)
Dual ORP, for secondary sanitizer or backup for liquid systems
Accessories available
NSF Certified for the highest level of code compliance
Made in the USA
Web-based remote monitoring is an available option
Web-based remote programming is an available option
Temperature monitoring and dispay is an available option
External visual and audible alarm is an available option

Features and details

Resources

Warranty

Commercial Controller (NSF/ANSI 50 Certified) Warranty

For Models: M920 Series, M820, M790, M770

IPS Commercial Chemical Controllers - Electronics
IPS Controllers warrants the Commercial Controller electronics to be free of defects in materials and workmanship for a period of five (5) years from the date of installation. This warranty is limited to the repair or replacement of defective components (at our discretion) when returned to the factory within the five (5) year warranty period.

Other Components
IPS Controllers warrants all other components including pH & ORP probes, flow cells and flow switches for a period of one (1) year from the date of installation. This warranty is limited to the repair or replacement of defective components (at our discretion) when returned to the factory within the one (1) year warranty period.

VidaPure Warranty

VidaPure Chemical Controllers - Electronics
IPS Controllers warrants the VidaPure controller electronics to be free of defects in materials and workmanship for a period of two (2) years from the date of installation. This warranty is limited to the repair or replacement of defective components (at our discretion) when returned to the factory within the two (2) year warranty period.

Other Components
IPS Controllers warrants all other components including pumps, flow cells and flow switches for a period of one (1) year from the date of installation. Sensors will be under warranty for a period of one (1) year from the date of factory purchase. This warranty is limited to the repair or replacement of defective components (at our discretion) when returned to the factory within the one (1) year warranty period.

Excluded
Pump tube assemblies and rubber components are considered perishable and are not covered in this warranty.

Limitation of Liability

This Limited Warranty excludes liability for any damage during transportation, consequential damages of any kind, damages due to improper installation or improper operation, improper handling of chemicals, and the use of this product in applications for which it was not designed.

Claims

All warranty claims should be directed to IPS Controllers at ipscontrollers.com.

This information was updated on 4/14/2020. For the most current information and full warranty policy please visit www.ipscontrollers.com.
