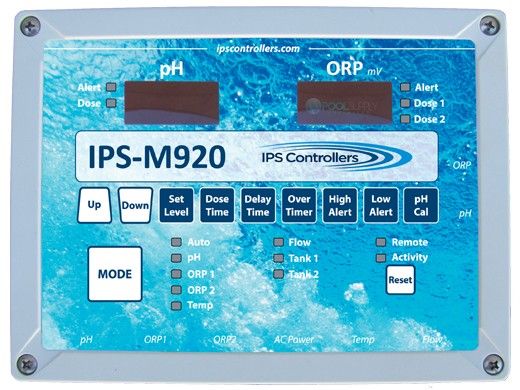

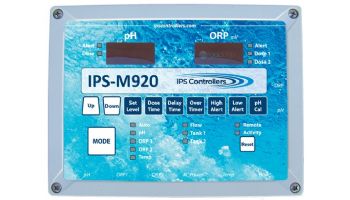

IPS Controllers M920 Automated pH with Dual ORP Controller with Online Monitoring | IPS-M920

$2,210.00

Top of the line for Commercial and Custom Residential.

The updated IPS Controller M920 allows you to check in on real time chemical control activity for all your pools, spas and water features, using your smart phone or tablet. Web-based programming, monitoring, multiple email and testing options for alert notification are built into the M920, with optional wireless Internet access.

A lockout feature is included on this model, keeping unauthorized users from making function changes.

This top-of-the line automated pH, dual ORP controller is compatible with all sanitizing methods including liquid, tablets, granular and salt chlorine generators.

The convenience of the unique dual ORP allows operators to install multiple output devices on the same pool. With dual ORP, you can use a primary sanitizer, such as salt chlorine generator, with a secondary sanitizer, such as liquid chlorine, for rapid response to increase bather load. The second ORP may also be used as a safety backup (second pump and tank) for liquid systems.

Quick and simple to operate with push button technology, installing the M920 is a breeze, preassembled on a 24" x 24" mounting board, easy installation right out of the box and system set up takes just minutes.

Maintain consistent pH and sanitizer levels through out the day, assuring the chemicals are balanced and the water is clean and clear. Automatically monitor, adjust and dispense the correct amount of chemicals based on user demand.

Perfect for pools, spas and water features of all sizes, anywhere—hotels, condominiums, aquatic centers, schools, public facilities, homes and more

Specifications

Web-based remote monitoring & programming
Optional wireless internet access
pH set level 7.0- 8.0
ORP set level 400-900
Default high/low alert settings
Readout – LED with digital display
Alarm – LED alert display
Push button overfeed adjustment
Push button high/low alert adjustment
Dose Rate – timed or continuous
Electrical Input/Output 110 VAC
Electrical Input/Output 230 VAC
Electrical Output 110V, 230V, & Dry Contact
Delay time – 1-99 minutes
External visual and audible alarm is an available option Tank level inputs – 2
System pre-mounted on 24”x24” hanging board
Compatible with all sanitizing methods
Can be used with Muriatic Acid or CO2
Chemical pump option
Gold-tipped ORP probe for salt pools
Dual ORP, for secondary sanitizer or backup for liquid systems
Lock-out feature
Temperature monitoring & display
Accessories available
NSF Certified for the highest level of code compliance
Made in the USA

Brand: IPS Controllers

REVIEWS

Q&A

IPS Controllers M920 Automated pH with Dual ORP Controller with Online Monitoring | IPS-M920

$2,210.00

Quantity

Product description

Top of the line for Commercial and Custom Residential.

A lockout feature is included on this model, keeping unauthorized users from making function changes.

This top-of-the line automated pH, dual ORP controller is compatible with all sanitizing methods including liquid, tablets, granular and salt chlorine generators.

Perfect for pools, spas and water features of all sizes, anywhere—hotels, condominiums, aquatic centers, schools, public facilities, homes and more

Specifications

Web-based remote monitoring & programming
Optional wireless internet access
pH set level 7.0- 8.0
ORP set level 400-900
Default high/low alert settings
Readout – LED with digital display
Alarm – LED alert display
Push button overfeed adjustment
Push button high/low alert adjustment
Dose Rate – timed or continuous
Electrical Input/Output 110 VAC
Electrical Input/Output 230 VAC
Electrical Output 110V, 230V, & Dry Contact
Delay time – 1-99 minutes
External visual and audible alarm is an available option Tank level inputs – 2
System pre-mounted on 24”x24” hanging board
Compatible with all sanitizing methods
Can be used with Muriatic Acid or CO2
Chemical pump option
Gold-tipped ORP probe for salt pools
Dual ORP, for secondary sanitizer or backup for liquid systems
Lock-out feature
Temperature monitoring & display
Accessories available
NSF Certified for the highest level of code compliance
Made in the USA

Features and details

Resources

Warranty

Commercial Controller (NSF/ANSI 50 Certified) Warranty

For Models: M920 Series, M820, M790, M770

IPS Commercial Chemical Controllers - Electronics
IPS Controllers warrants the Commercial Controller electronics to be free of defects in materials and workmanship for a period of five (5) years from the date of installation. This warranty is limited to the repair or replacement of defective components (at our discretion) when returned to the factory within the five (5) year warranty period.

Other Components
IPS Controllers warrants all other components including pH & ORP probes, flow cells and flow switches for a period of one (1) year from the date of installation. This warranty is limited to the repair or replacement of defective components (at our discretion) when returned to the factory within the one (1) year warranty period.

VidaPure Warranty

VidaPure Chemical Controllers - Electronics
IPS Controllers warrants the VidaPure controller electronics to be free of defects in materials and workmanship for a period of two (2) years from the date of installation. This warranty is limited to the repair or replacement of defective components (at our discretion) when returned to the factory within the two (2) year warranty period.

Other Components
IPS Controllers warrants all other components including pumps, flow cells and flow switches for a period of one (1) year from the date of installation. Sensors will be under warranty for a period of one (1) year from the date of factory purchase. This warranty is limited to the repair or replacement of defective components (at our discretion) when returned to the factory within the one (1) year warranty period.

Excluded
Pump tube assemblies and rubber components are considered perishable and are not covered in this warranty.

Limitation of Liability

This Limited Warranty excludes liability for any damage during transportation, consequential damages of any kind, damages due to improper installation or improper operation, improper handling of chemicals, and the use of this product in applications for which it was not designed.

Claims

All warranty claims should be directed to IPS Controllers at ipscontrollers.com.

This information was updated on 4/14/2020. For the most current information and full warranty policy please visit www.ipscontrollers.com.
