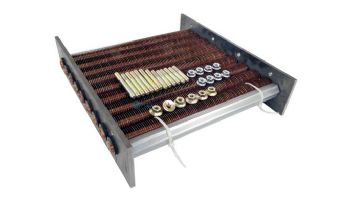

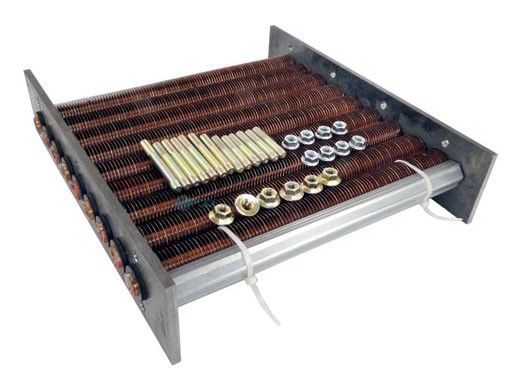

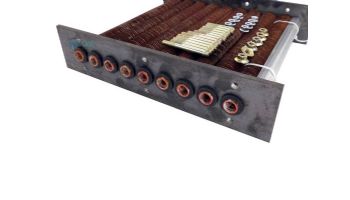

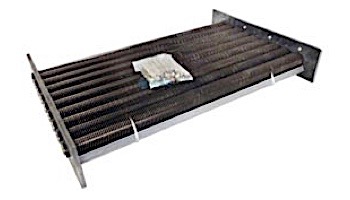

Home Raypak Tube Bundle Copper ASME | 010055F

Raypak Tube Bundle Copper ASME | 010055F

Raypak Tube Bundle Copper ASME | 010055F
Raypak Tube Bundle Copper ASME | 010055F
Cross reference information:
  • This tube bundle to be used with commercial ASME models 206A & 207A that have metal headers
  • To upgrade to a more durable cupro nickel tube bundle use part number 010368F. This is interchangeable with part number 010055F.
  • For residential tube bundle (plastic capron headers) use part number 010059F or 010364F. These are NOT interchangeable with part number 010055F.
  • It is very important to distinguish between residential & commercial tube bundles because they are not interchangeable. Here is a simple guideline to make sure the tube bundle you order will fit your heater:
    • Residential heater model numbers begin with one of the following: P-R (Raypak) or P-M (Rheem) or P-D (Ruud)
    • Commercial heater models begin with C-R (Raypak)
    • Full model number can be found by opening the front cabinet door and looking for the identification plate which will contain the model number and part number. The model number will tell us everything we need to know about the heater other than the age which is contained in serial number (first two digits are the year, next two digits are the month it was manufactured)

Brand: Raypak

Raypak Tube Bundle Copper ASME | 010055F

Platinum Preferred Manufacturer
This part fits the following products
Product description
Features and details
