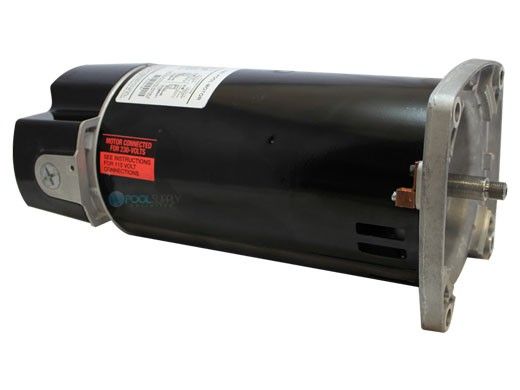

Replacement Square Flange Pool & Spa Motor | .33HP Full-Rated/.5HP Up-Rated | 48 Frame Standard Efficiency | 115/230V | EUSQ1052 | USQ1052 | HSQ065 | ASQ065

Replacement Square Flange Pool & Spa Motor | .33HP Full-Rated/.5HP Up-Rated | 48 Frame Standard Efficiency | 115/230V | EUSQ1052 | USQ1052 | HSQ065 | ASQ065
$145.66

Quantity:
Platinum Preferred Manufacturer
  • Switch Design
  • 5.5" Frame Diameter
  • Open Drip Proof
  • Sealed Ball Bearings
OVERVIEW
Innovative features, fast delivery, and exceptional reliability are the winning features built into every U.S. MOTORS® brand pool and spa motor Nidec Motor Corporation manufactures. Built-in, industry-leading features like angled terminal boards for convenient access...voltage selection with the flip of a switch...no-worry switches with no field adjustment needed...all help to make installing and maintaining these pool and spa motors much faster and easier than the competition.

Motor Features:
  • Two Compartment
  • Shaft Threads - 1/2-20 UNF-2A
  • 50 Degree 'C' Ambient
  • Triple Bearing Protection
  • 1081 Design
  • Continuous Duty
  • Open Drip-Proof
  • Sealed Ball Bearings
  • Thermally Protected
  • Class B Insulated
  • 300 Series Stainless Steel Shaft
  • Voltage Selection Device (Dual Voltage Only)
  • Frequency: 60
  • Length Less Shaft: 11.80
  • Weight: 16
Specifications:
Type Standard Efficient
Rating Total Horsepower Rated
Speed Single
Frame Size/Diameter 48Y
Enclosure Open Drip Proof
Phase Category Single
Voltage 115/230
Frequency 60 Hz
Amps 4.1/8.2
Service Factor
THP 0.65
RPM 3450
Shaft Type Threaded
Rotation CCW Drive End
Mounting Square Flange

NOTE: Total Horsepower (Horsepower x Service Factor) of replacement motor must meet or exceed current pump motor.


Brand: US MOTORS
SPECIFICATIONS
Horse Power
.5 HP
Speed
1 Speed
Voltage
115V-230V
Flange
Square
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
U.S. MOTORS® Pool/Spa Warranty Period

U.S. MOTORS® provides a two-year warranty from date of manufacture or one year from date of installation - whichever occurs first.

Definition of Date Code: XA07X

First Character - X - This character represents possible plant codes that mean nothing to the manufacturing date (may or may not exist after 2008).

Second Character - A - This character represents the month in which the motor was built. The letter "I" is skipped in the alphabet.

A=January  B=February  C=March  D=April .... L=November  M=December

Third/Fourth Character - 07 - These characters represent the year the motor was built.

05=2005  06=2006  07=2007  08=2008 and so on

Fifth Character - X - This character represents possible plant codes that mean nothing to the manufacturing date.
