SR Smith Treo Color RGB LED Underwater Pool Light | 5W 12V 80' Cord | FLED-C-TR

Name: Magic Plastics QwikLED Plate Adapter for 1.5" LED Pool & Spa Light Retrofit | White | 0910-P-WH
Brand: S.R.Smith Lighting
SKU: 145490
Availability: InStock

$319.83

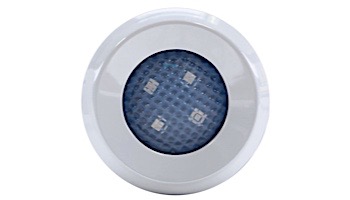

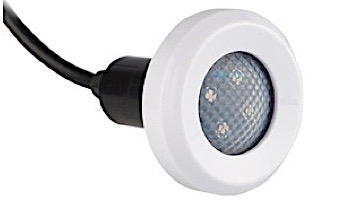

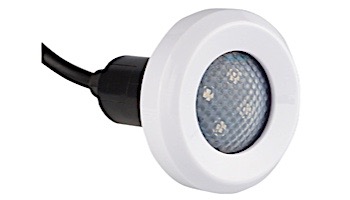

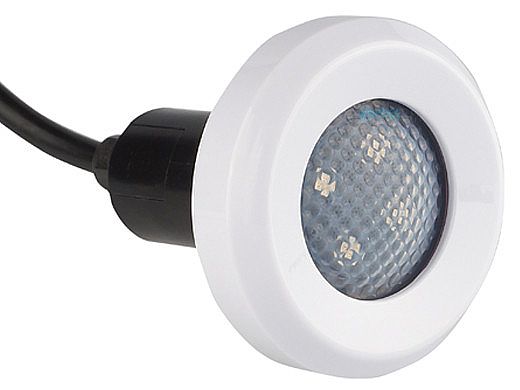

Treo LED Pool Light

The Treo light provides outstanding illumination qualities, with even light distribution and a wide beam spread, eliminating the end shadow effect common with other pool lights. The new Treo LED light is available with a 50,000 hour lamp life, color change LED array that has six lockable colors and two color change modes. It will color synchronize with the Color Light Streams series of water features making it a great value in the growing family of 12VAC products by S.R.Smith, formerly Fiberstars. This family of high performance, low power consumption lighting products can be wirelessly controlled by the S.R. Smith 12V power centers that include the PT-6000, WIRTRAN, WPC1-XXXX-T, WPC2-XXXX-T.

The Treo LED light is a 12VAC, 5 Watt LED underwater light for gunite, vinyl liner, and fiberglass pools that features outstanding illumination qualities.

Features

Designed for use with standard thread 1.5" diameter*
Available in lengths of 30', 50', 80', 150'
50,000 hour lamp life
No Earth bonding required
White or color changing LED models available
Color functions:
- Advanced color functionality with poolLUX Premier: (49) color variations and dimming control (via wireless remote)

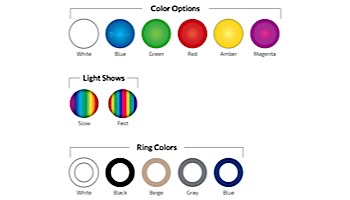

- 12V controls: (6) colors (white, blue, green, red, amber, magenta) and (2) light changing shows
Color memory function
Five colored trim rings included to match the surface of your pool or spa
Synchronized operation with S.R.Smith LED lights (2014 and newer)

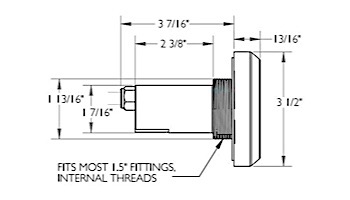

Requires a minimum 2.75" of 1.5" diameter straight conduit as measured from back of wall fitting
ETL listed - Conforms to UL standard 676, certified to CSA C22.2 #89

Specifications

No Earth bonding required
Non-Leak Lens Water Seal (No polycarbonate materials used for seal)

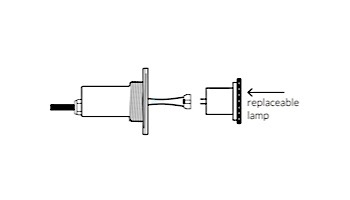

Retrofits most existing fiber installations (standard 1.5" wall fittings)
Unique flexible lens adapts to extreme temperatures

*Due to the variety and large number of manufacturers' fittings available, it may be necessary to field modify the internal shoulder if it is too shallow or too thick. This can be performed in the field in about 1-2 minutes with a 1-3/4" hole saw or small sanding drum. Installs into standard 1.5" wall fittings.

Basic Requirements: Standard 1.5" wall fitting with exposed face and internal threads - initially connects to 1.5" waterproof conduit which terminates and seals above ground.

Brand: S.R.Smith Lighting

REVIEWS

Q&A

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

Browse 2 questions Browse 2 questions and 2 answers

How do you change the light?

Joe I on Jan 30, 2022

BEST ANSWER: To change the light to LED from fiber optic you have to a light and a box that supports the connections for power, and an on off method. I use a prolux box and the Treo light. You have to run power to the box and then remove the old light and install the treo. YouTube has instructive videos as to how to change the light, and this is what I used. It took 15 minutes to pull the old light out and thread the new light through. Remember to tape the new light to the existing cord and pull the new light cord through at the same time you are installing the new one. That is about it. The hardest part was running power to the prolux box.

Reply
Inaccurate
jeffrey w on Jan 31, 2022
Purchased on Aug 22, 2021

I have the old style fiber optic lighting with one in the pool and one in the spa with a color wheel and wired through an Aqua link RS4 panel. what would I need to convert to LED's?

WAYNE O on Dec 28, 2015

BEST ANSWER: Fiberstar makes a conversion kit, which consist of the box to replace your fiber optic box with all internal electronic components, a new remote, and whatever number of LED light heads you choose. I changed mine last winter and I cannot say enough about how easy it was and what a difference it makes. It is so worth the money. The remote also has a second channel so you can wire up something else to turn on and off such as landscape lighting. All you do is remove the fiber optic light head, pull through the fiber optic cable and tape the LED wire onto the cable before pulling it through so it is in place, and screw in the LED light head and connect the light inside the box and connect the 120V in power line inside the box and you're done. DO IT!!!!! You will not regret it.

Reply
Inaccurate
Michael B on Dec 29, 2015
Purchased on Sep 22, 2014

SR Smith Treo Color RGB LED Underwater Pool Light | 5W 12V 80' Cord | FLED-C-TR

$319.83

Quantity

Platinum Preferred Manufacturer

Purchase options

Related items

SR Smith PoolLUX Premier Lighting Control System with Remote | pLX-PRM

$689.72
SR Smith poolLUX Power Transformer Lighting Control System | 60 Watt 120V | PLX-PW60

$151.97
SR Smith poolLUX Plus Transformer Wireless Lighting Control System with Remote | 60 Watt 120V | PLX-PL60

$404.35
SR Smith Wireless Light Control System With Internal 12VAC Transformer & 1 Button Remote | WIRTRAN

$426.72
Intermatic 100W | 120V to 12V Transformer | PX100

$117.09
Intermatic 300W | 120V to 12V Transformer | PX300

$133.87
SR Smith Lighting Lens Housing Fiberglass Wall Fitting 1.5" PVC White | LNS-2A

$41.29
SR Smith Lighting Lens Housing Gunite Wall Fitting 1.5" PVC White | LNS-2G

$37.33
SR Smith Lighting Lens Housing Vinyl Wall Fitting
1.5" PVC White | LNS-2V

$52.79
Replacement Lamp for LED Underwater Lights |12V 5W Color RGB | FLED-LAU-C

$114.22
SR Smith Lighting Clear Treo Lens Cover | FLED-LC-TR

$26.92
Magic Plastics QwikLED Plaster Adapter for 1.5" LED Pool & Spa Light Retrofit | White | 0910-PL-WH

$89.99
Magic Plastics QwikLED Plate Adapter for 1.5" LED Pool & Spa Light Retrofit | White | 0910-P-WH

$89.99

Product description

Treo LED Pool Light

The Treo LED light is a 12VAC, 5 Watt LED underwater light for gunite, vinyl liner, and fiberglass pools that features outstanding illumination qualities.

Features

Designed for use with standard thread 1.5" diameter*
Available in lengths of 30', 50', 80', 150'
50,000 hour lamp life
No Earth bonding required
White or color changing LED models available
Color functions:
- Advanced color functionality with poolLUX Premier: (49) color variations and dimming control (via wireless remote)
- 12V controls: (6) colors (white, blue, green, red, amber, magenta) and (2) light changing shows
Color memory function
Five colored trim rings included to match the surface of your pool or spa
Synchronized operation with S.R.Smith LED lights (2014 and newer)
Requires a minimum 2.75" of 1.5" diameter straight conduit as measured from back of wall fitting
ETL listed - Conforms to UL standard 676, certified to CSA C22.2 #89

Specifications

No Earth bonding required
Non-Leak Lens Water Seal (No polycarbonate materials used for seal)
Retrofits most existing fiber installations (standard 1.5" wall fittings)
Unique flexible lens adapts to extreme temperatures

Basic Requirements: Standard 1.5" wall fitting with exposed face and internal threads - initially connects to 1.5" waterproof conduit which terminates and seals above ground.

Features and details

Specifications

Resources

Warranty

S.R.Smith, LLC warrants to the original retail purchaser that products manufactured by S.R.Smith, when properly assembled and installed in accordance with S.R.Smith's assembly and installation instructions, and properly used and maintained, shall be free from defects in materials and workmanship for the warranty period of three (3) years from the date of retail purchase except for the following items set forth below:

Game Accessories (ball, pump, net): Ninety Days
WetDek: One Year
Resin Transfer Molded (RTM) Slides, Seats, Loungers, and Tables: One Year
Aquatic Lift System Frames (excluding the powder coated finish, which may become scratched with normal use): Five Years
Aquatic Lift System Electronic and Motor Components (excluding batteries): Two Years
Aquatic Lift batteries: One year prorated as follows: 100% of cost during the first ninety days of ownership and 50 percent of cost after ninety days and prior to expiration of one-year period. Normal maintenance and care of the unit, including charge of the battery when not in use is recommended.
Lighting: See below
Pool Cover Rewinders - Frames: Five Years
Pool Cover Rewinders - Electric and Motor Components: Two Years
Thermal Pool Covers: See documents

Lighting Parts
Labor

LED Lighting - Mod-Lite, Micro, Kelo, Treo, Fiberglass, Color Light Stream
3-Years 1-Year

PoolLUX Controls- Power, Plus, Plus2, Premier
2-Years 1-Year

PT- Series
2-Years 1-Year

Wiretran Control
1-Year 1-Year

TX-30 Control
1-Year 1-Year

WPC Controls
1-Year 1-Year

Fiber Optic Illuminators - 6004 Series
3-Years 1-Year

Fiber Optic Cable
1-Year n/a

Water Features
1-Year n/a

To register your S.R.Smith product, visit the Product Registration page at: www.srsmith.com.

This information was updated on 11/07/23. For the most current information and full warranty policy please visit www.srsmith.com.
