Manufactured from the highest grade of non corrosive materials and employing the latest in fiberglass winding technology, Micron W filters are built for many years of trouble free operation.



Ideal for water treatment applications, the Micron W & WD Filters provide an effective means to remove sediment from incoming water before direct use or storage in a tank.

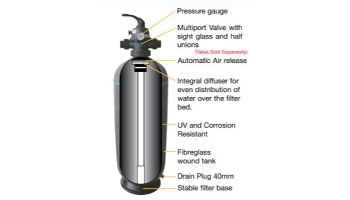

The Micron W Filter’s unique feature is its user friendly Multiport Valve (MPV), which controls and facilitates all the operational functions needed for the filter.



Micron W and WD filters are designed with filter depths of 600mm to 1000mm providing enhanced indepth filtration and increased dirt retention capacity. Combining filter housing and various filter media Micron W and WD filters can be fitted in configurations to provide multi-stage comprehensive water conditioning.





Waterco Micron filters are known throughout the industry for their impressive performance and reliability





Micron filters consist of a blow moulded inner shell of fibreglass reinforced polyester resin strengthened with multiple layers of continuous strands of fibreglass filament.



Micron filters are wound with precision by Waterco's digital filament winding machines, for refined consistency and superior quality.





Cleansing the filter simply requires shifting the Multiport Valve lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing out the trapped dirt from filter bed.



Model	Port Size (in)	Bed Depth (in)	Filter Area (sq ft)	Flow Rates gpm/sq ft 5      10      15      20				Media Volume (gallons)	Sand 0.6-1.2 (lbs)
W300	1.5	23.6	0.70	11	88	12	99	15	187
W400	1.5	23.6	1.40	21	166	23	184	21	523
W500	1.5	23.6	2.10	32	254	35	283	33	397
W600	1.5	23.6	3.00	44	357	49	360	46	562
W700	1.5	23.6	4.10	60	484	67	537	63	771
WD350	1.5	39.0	1.1	16	127	18	141	30	374
WD400	1.5	39.0	1.4	20	166	23	183	34	414
WD500	1.5	39.0	2.2	32	254	35	282	53	639
WD600	1.5	39.0	3.0	44	357	49	395	76	926
WD700	1.5	39.0	4.1	60	484	67	537	104	1267

WARRANTY COVER

If a defect occurs in any Waterco product during the warranty period, Waterco will at its discretion, repair the product or replace and install the defective part, free of charge provided that the defect results solely from poor workmanship or materials and subject to these terms and conditions. Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent. The purchaser is responsible for any freight incurred. Warranties are valid only within the original country of purchase. Our goods come with guarantees that cannot be excluded under the region's Consumer Law. You are entitled to a replacement or refund for a major failure.



WARRANTY PERIOD

All products sold by Waterco are covered by a one year warranty. The exceptions to this are the products listed in the schedule below (which also specifies relevant warranty periods). All warranty periods commence on the date of purchase by the end user. The provisions of this warranty are not transferable and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.



All products sold by Waterco are covered by a one year warranty with the exception of the products listed below. Please note: Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent.



Product	Warranty	Pro-Rata Warranty
PUMPS
Conditions
• Wet Ends	3 Years
• Hair & Lint pot lid, "o" ring, basket, impeller & diffuser	2 Years
• Motor mechanical seal & capacitor	1 Year
¹Except;
• ¹Portapac and Delta Spa & Bath Pumps	2 Years
• ¹Fulflo pressure pump	2 Years
FILTER
• ¹Thermoplastic filter tank	5 Years	5 Years (Refer Column A)
• ¹Filament Wound / Exotuf filter tank	10 Years	Not applicable
• ¹Cartridge / Bag filter tank	5 Years	5 Years (Refer Column A)
• ¹DE / Pearlite filter tank	3 Years	2 Years (Refer Column A)
• ¹MultiCyclone 12-16 Plus / Ultra	3 Years
¹Except: All internal parts including fittings, valves, gauges, cartridge elements, DE / Pearlite grids.	1 Year
• All multiport valves used on media (granular) or DE / Pearlite	1 Year
CHEMFLO PLUS
• Controller / Feeder	3 Years
• Sensor	1 Year
SALT CHLORINATORS
• Electrochlor / Hydrochlor Chlorinator Cell	3 Years
• Electrochlor / Hydrochlor Chlorinator Power Pack	3 Years
¹&²HEAT PUMPS	3 Years
• ¹Compressor	3 Years
• ²Titanium Heat Exchanger	10 Years
• All other components	2 Years
GAS HEATER	2 Years
DIGIHEAT	2 Years
POOL LIGHTS & ACCESSORIES
• Britestream LED Pool Lights	2 Years
• Litestream LED Pool Lights	1 Year
• Light Transformers	1 Year
AUTOMATION PRODUCTS
• Waterco Controllers	2 Years
• Waterco Temperature Sensor	1 Year
