Home Waterco W500n 20" Micron Deep Bed Sand Filter Only 102 PSI | 4" Neck 1.5" Bulkhead Connection | 22475071NA
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. ... We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Waterco W500n 20" Micron Deep Bed Sand Filter Only 102 PSI | 4" Neck 1.5" Bulkhead Connection | 22475071NA

$506.83
Waterco W500n 20" Micron Deep Bed Sand Filter Only 102 PSI |  4" Neck 1.5" Bulkhead Connection | 22475071NA
Waterco W500n 20" Micron Deep Bed Sand Filter Only 102 PSI |  4" Neck 1.5" Bulkhead Connection | 22475071NA
Waterco W500n 20" Micron Deep Bed Sand Filter Only 102 PSI |  4" Neck 1.5" Bulkhead Connection | 22475071NA
Waterco W500n 20" Micron Deep Bed Sand Filter Only 102 PSI |  4" Neck 1.5" Bulkhead Connection | 22475071NA
Deep Bed Sand Filter!

Manufactured from the highest grade of non corrosive materials and employing the latest in fiberglass winding technology, Micron W filters are built for many years of trouble free operation.

Ideal for water treatment applications, the Micron W & WD Filters provide an effective means to remove sediment from incoming water before direct use or storage in a tank.

The Micron W Filter’s unique feature is its user friendly Multiport Valve (MPV), which controls and facilitates all the operational functions needed for the filter.

Micron W and WD filters are designed with filter depths of 600mm to 1000mm providing enhanced indepth filtration and increased dirt retention capacity. Combining filter housing and various filter media Micron W and WD filters can be fitted in configurations to provide multi-stage comprehensive water conditioning.

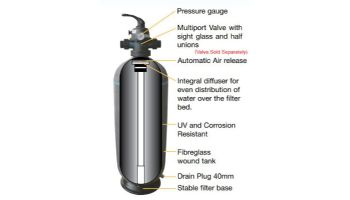

Features:
  • Effective Filtration
  • Minimal Maintenance
  • Dependable Strength and Durability
  • Pressure gauge
  • Multiport Valve Sold Separately
  • Automatic Air release
  • Integral diffuser for even distribution of water over the filter bed.
  • UV and Corrosion Resistant
  • Fiberglass wound tank
  • Drain Plug 40mm
  • Stable filter base
  • No filter cartridges to clean or to replace
Proven Durability

Waterco Micron filters are known throughout the industry for their impressive performance and reliability

Technologically Advanced

Micron filters consist of a blow moulded inner shell of fibreglass reinforced polyester resin strengthened with multiple layers of continuous strands of fibreglass filament.

Micron filters are wound with precision by Waterco's digital filament winding machines, for refined consistency and superior quality.

Easy Maintenance

Cleansing the filter simply requires shifting the Multiport Valve lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing out the trapped dirt from filter bed.

Specifications:


Model

Port Size
(in)
Bed Depth
(in)
Filter Area
(sq ft)
Flow Rates
gpm/sq ft
5      10      15      20
Media Volume
(gallons)
Sand
0.6-1.2
(lbs)
W300 1.5 23.6 0.70 11 88 12 99 15 187
W400 1.5 23.6 1.40 21 166 23 184 21 523
W500 1.5 23.6 2.10 32 254 35 283 33 397
W600 1.5 23.6 3.00 44 357 49 360 46 562
W700 1.5 23.6 4.10 60 484 67 537 63 771
WD350 1.5 39.0 1.1 16 127 18 141 30 374
WD400 1.5 39.0 1.4 20 166 23 183 34 414
WD500 1.5 39.0 2.2 32 254 35 282 53 639
WD600 1.5 39.0 3.0 44 357 49 395 76 926
WD700 1.5 39.0 4.1 60 484 67 537 104 1267
