Superior Strength, Dependability and Environmentally Friendly Media Filter
The Exotuf Plus media filters are designed to cope with the cyclic pressures of the modern day swimming pool and feature hydraulically efficient fish tail lateral systems in both top and side-mount models which facilitate energy and water savings.
- Multiport valve with ergonomic handle and quick connect barrel unions
- Clear sight glass for backwash inspection
- Pressure gauge to determine the filter’s capacity
- Multiport valve clamp provides 360° orientation of the Multiport valve for simple installation and service
- Granular media filtration
- Pressure rated at 250 kPa
- Corrosion and UV resistant
- Hydraulically balanced flow distribution, to maximize filtration and backwashing
- Large filter base for stable floor mounting
- Maximum working temperature of 50°C
Multiport Valve - Heavy Duty Construction
Constructed from heavy duty ABS and GFPP, Waterco Multiport valves are designed for high performance and working pressures. Waterco's entire range of Multiport valves are engineered to withstand a working pressure of up to 400 kPa (58 psi) with a test pressure of 600 kPa (87 psi).
Exotuf Plus filters are considered one of the strongest filters within its class. Its filter vessel is precision injection molded within minimal tolerances for enhanced structural strength and dependability. Pressure rated at 350 kPa, they are ideal for pools equipped with in-floor cleaning and high powered pumps.
Water Saving "Fish Tail" laterals
Exotuf Filters are equipped with "Fish Tail" laterals, to improve its filtration and backwashing hydraulic efficiency. Fish Tail laterals provide effective coverage of the filter bed and balanced water flow, during backwashing. Exotuf Filters backwash time is significantly reduced, leading to a 30% savings of backwash water. Water Saving "Fish Tail" laterals.
Energy Saving "Fish Tail" laterals
The Exotuf Filters hydraulic efficiency halves the backwash flow rate of a conventional sand filter, allowing the option for low powered, energy efficient pumps for filtration flow and backwash flow.

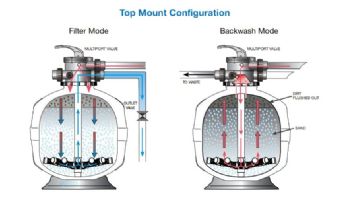

The Filament Wound filter operates on the basics of "Depth Filtration" dirt is sifted through the filter bed and trapped in minute spaces between the particles of filter media allowing the clean water to pass through the filter's laterals and exit via the filter's Multi-port valve.
Enhanced Water Clarity
Lowering a filter's flow rate not only significantly decreases the pump's energy requirements, but also reduces water flow resistance in your pool equipment and plumbing. A lower flow rate also has the added benefit of enhancing your pool's filtration efficiency, greatly enhancing the clarity of your swimming pool water.
Ease of Maintenance
Cleansing the filter simply requires turning the filter's multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.
|Max Pool Size
1 - 2.2
Residential flow rate based on a velocity of 48m3/hr/m2. Max. pool size is based on a 6hr turnover.
