Home Waterco Multiport Valve for use with Sand Filters | 1.5" Top Mount Valve for Exotuf Filters with 6" Clamp Neck Praher | 22804455PA
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

Waterco Multiport Valve for use with Sand Filters | 1.5" Top Mount Valve for Exotuf Filters with 6" Clamp Neck Praher | 22804455PA

Waterco Multiport Valve for use with Sand Filters | 1.5" Top Mount Valve for Exotuf Filters with 6" Clamp Neck Praher | 22804455PA Waterco Multiport Valve for use with Sand Filters | 1.5" Top Mount Valve for Exotuf Filters with 6" Clamp Neck Praher | 22804455PA Waterco Multiport Valve for use with Sand Filters | 1.5" Top Mount Valve for Exotuf Filters with 6" Clamp Neck Praher | 22804455PA
$115.85

Quantity:
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Constructed from Heavy Duty ABS and GFPP
  • High Grade Stainless Steel Components
  • Designed for High Performance and Working Pressures
  • Suits Filter Models - Part Numbers 2260206A, 2260246A
Purchase Options
OVERVIEW
Multiport Valves - Heavy Duty Construction

Constructed from heavy duty ABS and GFPP, Waterco Multiport valves are designed for high performance and working pressures.
Waterco's entire range of Multiport valves are engineered to withstand a working pressure of up to 400 kPa (58 psi) with a test pressure of 600 kPa (87 psi).

Cleansing a filter simply requires shifting the Multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.

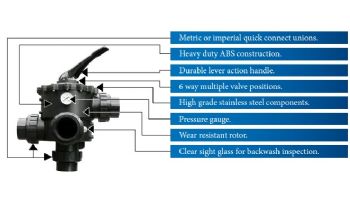

Features:
  • Constructed from heavy duty ABS and GFPP
  • Waterco Multiport valves are designed for high performance and working pressures
  • Durable lever action handle
  • High grade stainless steel components
  • 6 way multiple valve positions
  • Top and Side mount configurations
  • Available in 40mm, 50mm, 65mm, 80mm and 100mm port sizes
  • Rated at 400 kPa

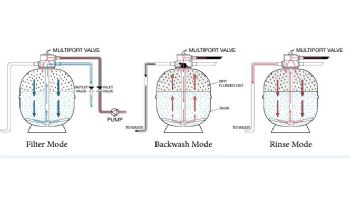

Multiport Valve Main Functions
  1. Filter downward flow through thefilter bed to outlet
  2. Backwash upward flow through the filterbed to waste
  3. Rinse downward flow through thefilter bed to waste
  4. Waste bypass the filter bed to waste
  5. Re-circulate bypass the filter bed to outlet
  6. Closed no flow to the filter
  7. Suits filter model: Micron E500-E600 20" clamp type filter - part number 2260206A, 2260246A
Specifications:
Max Flow Rate Body Lid Handle Rotor Hardware Union Nut Union Tail
1-1/2” MPV (40mm) 84 ABS ABS ABS GF Noryl SS304 ABS PVC
2” MPV (50mm) 135 ABS ABS ABS GF Noryl SS304 ABS PVC
2-1/2” MPV (65mm) 206 ABS GFPP ABS GF Noryl SS304 ABS PVC
3” MPV (80mm) 285 GFPP GFPP ABS GF Noryl SS304 ABS PVC
4” MPV (100mm) 310 GFPP GFPP ABS GF Noryl SS304 ABS PVC


Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
WARRANTY COVER
If a defect occurs in any Waterco product during the warranty period, Waterco will at its discretion, repair the product or replace and install the defective part, free of charge provided that the defect results solely from poor workmanship or materials and subject to these terms and conditions. Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent. The purchaser is responsible for any freight incurred. Warranties are valid only within the original country of purchase. Our goods come with guarantees that cannot be excluded under the region's Consumer Law. You are entitled to a replacement or refund for a major failure.

WARRANTY PERIOD
All products sold by Waterco are covered by a one year warranty. The exceptions to this are the products listed in the schedule below (which also specifies relevant warranty periods). All warranty periods commence on the date of purchase by the end user. The provisions of this warranty are not transferable and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.

SCHEDULE OF PARTS WARRANTY PERIODS
All products sold by Waterco are covered by a one year warranty with the exception of the products listed below. Please note: Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent.

Product Warranty Pro-Rata Warranty
PUMPS
Conditions
• Wet Ends 3 Years
• Hair & Lint pot lid, "o" ring, basket, impeller & diffuser 2 Years
• Motor mechanical seal & capacitor 1 Year
¹Except;
• ¹Portapac and Delta Spa & Bath Pumps 2 Years
• ¹Fulflo pressure pump 2 Years
FILTER
• ¹Thermoplastic filter tank 5 Years 5 Years (Refer Column A)
• ¹Filament Wound / Exotuf filter tank 10 Years Not applicable
• ¹Cartridge / Bag filter tank 5 Years 5 Years (Refer Column A)
• ¹DE / Pearlite filter tank 3 Years 2 Years (Refer Column A)
• ¹MultiCyclone 12-16 Plus / Ultra 3 Years
¹Except: All internal parts including fittings, valves,
gauges, cartridge elements, DE / Pearlite grids.
1 Year
• All multiport valves used on media (granular) or
DE / Pearlite
1 Year
CHEMFLO PLUS
• Controller / Feeder 3 Years
• Sensor 1 Year
SALT CHLORINATORS
• Electrochlor / Hydrochlor Chlorinator Cell 3 Years
• Electrochlor / Hydrochlor Chlorinator Power Pack 3 Years
¹&²HEAT PUMPS 3 Years
• ¹Compressor 3 Years
• ²Titanium Heat Exchanger 10 Years
• All other components 2 Years
GAS HEATER 2 Years
DIGIHEAT 2 Years
POOL LIGHTS & ACCESSORIES
• Britestream LED Pool Lights 2 Years
• Litestream LED Pool Lights 1 Year
• Light Transformers 1 Year
AUTOMATION PRODUCTS
• Waterco Controllers 2 Years
• Waterco Temperature Sensor 1 Year

See attached warranty document for full warranty, including conditions, exclusions and pro-rata warranty terms.

This information was updated on 10/10/19. For the most current information and full warranty policy please visit www.waterco.us.
