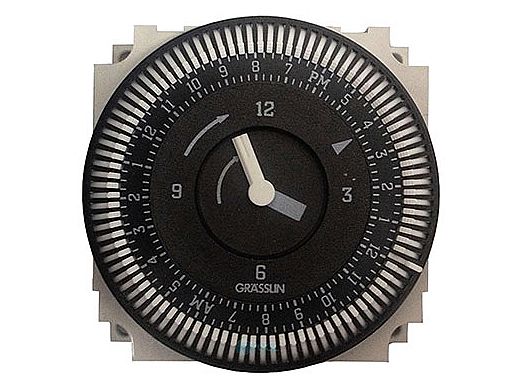

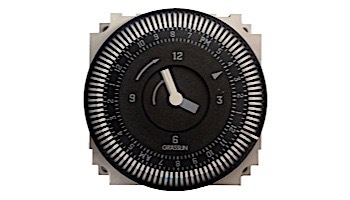

The FM1 Series Electromechanical Timer Modules are designed to be placed inside a machine control panel, circuit board, or other equipment. They offer up to 21 Amp switching designed for control of heating, ventilation, air conditioning, refrigeration, lighting, security, circulating pumps, spas, OEM applications, or any electrical load requiring 24-Hour or 7-Day scheduling.



Replacement for: SD6000-51034-0216

Features

• 21 Amp SPDT Switch
• 110V 15A 60HZ
• Captive Trippers with 15-minute intervals on 24-Hour models and 2-hour intervals on 7-Day models
• 1/4" quick-connect terminals
• Noise Immune – ideal for robust applications
• Synchronous drive or quartz drive
• True clock face, easy-to-set
• Available with or without override
• Compact size


Specifications

• Voltage: 120 VAC
• Minimum On-Off Time: 15 Minutes
• Program: 24 Hour
• Override: No
• Battery Backup: No
• Switch Type: 21 A Resistive

If within the warranty period specified, this product fails due to a defect in material or workmanship, Intermatic Incorporated will repair or replace it, at its sole option, free of charge. This warranty is extended to the original household purchaser only and is not transferable. This warranty does not apply to: (a) damage to units caused by accident, dropping or abuse in handling, acts of God or any negligent use; (b) units which have been subject to unauthorized repair, opened, taken apart or otherwise modified; (c) units not used in accordance with instructions; (d) damages exceeding the cost of the product; (e) sealed lamps and/or lamp bulbs, LED’s and batteries; (f) the finish on any portion of the product, such as surface and/or weathering, as this is considered normal wear and tear; (g) transit damage, initial installation costs, removal costs, or reinstallation costs.
