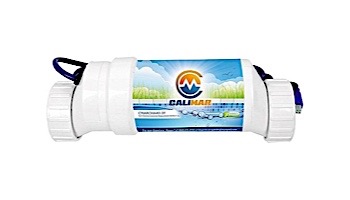

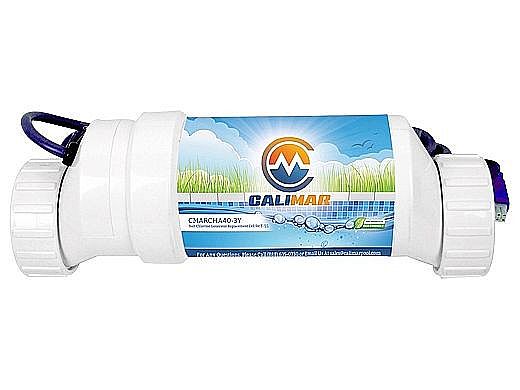

Home CaliMar® Replacement Cell for Hayward T-CELL-15 | 1-Year Warranty | 40,000 Gallons | CMARCHA40-1Y
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

CaliMar® Replacement Cell for Hayward T-CELL-15 | 1-Year Warranty | 40,000 Gallons | CMARCHA40-1Y

CaliMar® Replacement Cell for Hayward T-CELL-15 | 1-Year Warranty | 40,000 Gallons | CMARCHA40-1Y
$275.00

Quantity:
Shipping Free Shipping *
Platinum Preferred Manufacturer
  • For pools up to 40,000 gallons
  • CMARCHA40-1Y is a direct replacement for Hayward T-CELL-15
  • Exactly the same measurements and cord connection as the T-CELL-15
  • 15-foot cord included
RELATED ITEMS
  • Hayward Goldline 2" Cell Union | Tailpiece & Nut | GLX-CELL-UNION
    Hayward Goldline 2" Cell Union | Tailpiece & Nut | GLX-CELL-UNION

    $32.78
  • Replacement Hayward Goldline Original Flow Switch by Harwil | GLX-FLO-RP
    Hayward Goldline AquaRite Original Flow Switch GLXFLORP

    $99.99
  • Hayward Goldline Turbo Cell Cleaning Stand | GLX-CELLSTAND
    Hayward Goldline Turbo
    Cell Cleaning Stand


    $51.16
  • Pool Style 1# Salt Cell Cleaner for Cleaning Salt Water Generator Cells | 774263
    1# Salt Cell Cleaner for Salt Water Generator Cells

    $18.38
  • AquaChek Salt System Test Kit | 542228A
    AquaChek Salt System Test Kit

    $27.11
OVERVIEW
The CaliMar® CMARCHA40-1Y salt cell is a generic replacement for the Hayward T-CELL-15, meant for use in Hayward Goldline AquaRite, Aqua Logic and Pro Logic salt systems. CaliMar® replacement cells are proven to provide reliable performance after being tested under rigorous conditions. We are proud to offer these products to our customers as a more economical alternative to OEM (original equipment manufacturer) models and other generics.

If your Hayward salt system was built prior to 2009 you can use an OEM factory T-CELL-15 or generic equivalent like this replacement cell. Replacement salt cell CMARCHA40-1Y is compatible with Hayward systems made before 2009. If any of the following applies to you, the CaliMar® CMARCHA40-1Y replacement salt cell is the proper generic replacement cell choice for your Hayward salt system:
  • Your system was made prior to 2009
  • Your pool is larger than 25,000 gallons in volume
  • You are replacing a T-CELL-15 salt cell
The CMARCHA40-1Y is a plug-and-play unit, meaning it fits perfectly with existing plumbing and Hayward equipment, replacing the T-CELL-15 seamlessly with no additional installation or plumbing required. It is designed to chlorinate pools up to 45,000 gallons in volume. It comes with a 15-foot cord, providing flexibility in connecting to your existing power center.


SPECIFICATIONS
Pool Size
40,000 Gal
System Compatibility
Hayward
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 13 questions Browse 13 questions and 19 answers
Can this product, CMARCHA40-1Y is a direct replacement for Hayward T-CELL-15, be used if my system was made in 2009 and not before 2009?
A shopper on Jul 5, 2021
BEST ANSWER: Sure, just make sure your AquaRite is set to the correct cell type
my revision come up as r 1.59 is it compatible?
Dana F on Feb 12, 2021
BEST ANSWER: Yes, for revision 1.58 and later, multiple different cells can be used: T-3 up to T-15. Make sure your AquaRite is set to the correct t-cell, T-15 in this case
Will this work with software revision r 1.40?
Erin E on Jul 11, 2020
BEST ANSWER: Yes. Select AL-0 in the diagnostics settings.
Ask again will this work with software r1.4 ?
A shopper on Feb 9, 2021
BEST ANSWER: It is true that a T-15 CAN be used in any AquaRite regardless of software revision, but 1.40 and earlier might be set for T-5 or T-15. If the board setting and cell type do not match the system will not work correctly. For 1.58 and up it can be used, but the cell type must be set to match in the diagnostic menu.
The CMARCHA-1Y have the tread on it or tread whith the lock nut?.
Milano on Jul 2, 2020
BEST ANSWER: Tread? It has threads on it for the locknut to screw on it
Can I use this cell to upgrade from a Hayward T-Cell-9, using a Hayward control panel with Version 1.5 software for a 15,000 gal pool?
A shopper on May 12, 2022
BEST ANSWER: As long as the control panel is capable of switching to from a T-9 to a T-15; this programing process can be seen on U-tube; very simple process.
Is it compatible with Hayward AquaTrol Salt Water System? Thanks!
A shopper on May 4, 2022
BEST ANSWER: Yes it is. I would suggest you buy the longer warranty. My cell only lasted one year.
Will this work with the Hayward SwimPure Plus salt system?
A shopper on Mar 9, 2022
BEST ANSWER: Yes. This cell works on all Hayward salt systems up until 2021 unit
will this cell work on a 2015 system with a original t cell 15 ?
jerry on Oct 31, 2021
BEST ANSWER: Yes. It worked for me.
My software is version 1.45. Many replacement cells require software version 1.5 or higher. What are the requirements of this replacement cell?
A shopper on May 25, 2021
BEST ANSWER: It’s not true that only T-15 can be used or that T-15 will always work in older units. T-5 was the default for some units instead of T-15. You can use either, but the board jumper must be set for the same type. Unless you had a T-5 that was undersized for the pool or you can’t find a T-5 (getting rare), use the same cell type as the one you’re replacing.
Will this work on a pureline system?
A shopper on Apr 22, 2022
BEST ANSWER: Possibly, but likely no. IF the PureLine control box was used to replace an AquaRite AND the Hayward spec cell was used, then this cell will fit, but may not perform as expected. Most likely you need the PureLine cell PL7700
Does anyone know if this will fit the Pureline Salt System?
Kristen R on Apr 8, 2022
BEST ANSWER: Not for a stock unit. This is equivalent to the PL-7106. You would need a PL-7700.
I have an Aqua Rite generator reading "hot" 157 degrees, and not generating choline. I sit the cell or is it the generator?
A shopper on Oct 7, 2021
BEST ANSWER: Most likely the temp sensor (thermistor) in the cell has shorted.
REVIEWS
4.4 / 5.0
19 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
14
2
1
0
2
Rated 1 out of 5
Pool supply sent the wrong product. I have called multiple times as well as emailing. They have never responded. I have had to turn the matter over to American Express to get a reply.
July 9, 2021
Purchased
11 months ago
Rated 5 out of 5
best buy
of course i checked everywhere for prices and decided to take a chance on a less expensive version it connected fine , fit perfect no problem would recommend to any one
September 25, 2021
Purchased
8 months ago
Rated 3 out of 5
Working at the moment, but touch and go
Giving this three stars for now. It’s been a bit flaky but currently generating. The salt level is 3600-3700 depending on water level, but the cell indicates 4400-4500. Current is above range high, but not quite high enough to cause a high salt shutdown. It has done a low salt shutdown a couple of times when it was reading 0 salt instantaneous and dropped to 2000 ppm average. Hopefully it settles down after awhile.
May 6, 2022
Purchased
1 month ago
Rated 5 out of 5
Installed and working well. Very satisfied with product and your delivery time.
October 2, 2021
Purchased
8 months ago
Rated 5 out of 5
Works with Goldline Aquarite r1.33
I seem to have older firmware than anyone else I've seen post online. My control unit is from 2004 and running r1.33. I picked it up used on Facebook as a backup and installed it today with the Calimar Cell. Power is on and it is Generating chlorine.

Also, salinity and other readings from the cell are accurate. If you have an older unit they are hardcoded for T-15 cells, i.e. no option to select cell size. This cell is working fine after several hours. That is the best I can confirm for now. Hopefully get 2-3 years out of it.
October 22, 2021
Purchased
7 months ago
Rated 5 out of 5
The shipping was fast & it’s something that works with Hayward
I would order again
March 13, 2022
Purchased
3 months ago
Rated 5 out of 5
works good
It works as good as T-Cell..............................................................................................................
August 16, 2021
Purchased
10 months ago
Rated 5 out of 5
T-15 salt cell
It took a little while for the system to get the proper readings but after that it has been working great!!
April 8, 2022
Purchased
2 months ago
Rated 5 out of 5
Very fast shipping. The CaliMar Replacement Cell is functioning fantastic. It seems to work real well, it fits better than the OEM.
April 8, 2022
Purchased
2 months ago
Rated 5 out of 5
CaliMar Replacement Cell
Works much better than the OEM !!
-----------------------------------------------
-----------------------------------------------
-----------------------------------------------
December 5, 2021
Purchased
6 months ago
RESOURCES
Adobe Acrobat PDF Diagnostics Guide
Adobe Acrobat PDF User Manual
Hayward T-CELL-15 vs. CaliMar Replacement – Which One Is Best For My Pool?
Hayward T-CELL-15 vs. CaliMar Replacement – Which One Is Best For My Pool?
Need a replacement salt cell for your Hayward system in time for summer? Before you order another T-CELL-15, see how it stacks up to the powerhouse in saltwater chlorination, CaliMar.

WARRANTY
Above Ground Pools
Saltwater chlorination systems void the warranty on all CaliMar above ground pools.
  • CaliMar Above Ground Pools: 8-Year Full Warranty + 22-Year Pro-Rated Warranty
  • CaliMar Above Ground Pool Filter Systems: 3-Year Limited Warranty
Salt Systems
  • CaliMar Platinum Series Salt Chlorine Generator Systems: 5-Year Pro-Rated Warranty
  • CaliMar Titanium Edition Salt Chlorine Generator Systems: 7-Year Limited Warranty
  • CaliMar CMARSHA Series Salt Chlorine Generator Systems: 2-Year Full Warranty + 1-Year 80% Pro-Rated
  • CaliMar Clear CMARHY Series Replacement Salt Cells for Hayward AquaRite Systems: 3-Year Limited Warranty
  • CaliMar CMARCHA Series Replacement Salt Cells for Hayward AquaRite Systems:
    • -1Y part numbers: 1-Year Warranty
      • When used with AquaLogic or ProLogic warranty is shortened to 6-Months
    • -2Y part numbers: 2-Year Warranty
      • When used with AquaLogic or ProLogic warranty is shortened to 1-Year
  • CaliMar CMARCCF Series Replacement Salt Cells for CaliMar Systems: 2-Year Full Warranty + 1-Year 80% Pro-Rated
  • CaliMar Replacement Salt Cells for Ecomatic ESC Systems: 1-Year Limited Warranty
  • CaliMar Replacement Salt Cells for AutoPilot Systems: 2-Year Limited Warranty
  • CaliMar Replacement Electrodes for CompuPool CPSC Systems: 1-Year Limited Warranty
