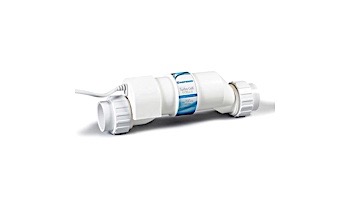

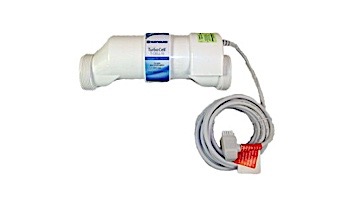

Hayward Goldline AquaRite OEM Replacement Cell with Cord | 40,000 Gallons | 3-Year Warranty | W3T-CELL-15 **Free 2-Day Shipping!**

Hayward Goldline AquaRite OEM Replacement Cell with Cord | 40,000 Gallons | 3-Year Warranty | W3T-CELL-15  **Free 2-Day Shipping!** Hayward Goldline AquaRite OEM Replacement Cell with Cord | 40,000 Gallons | 3-Year Warranty | W3T-CELL-15  **Free 2-Day Shipping!** Hayward Goldline AquaRite OEM Replacement Cell with Cord | 40,000 Gallons | 3-Year Warranty | W3T-CELL-15  **Free 2-Day Shipping!** Hayward Goldline AquaRite OEM Replacement Cell with Cord | 40,000 Gallons | 3-Year Warranty | W3T-CELL-15  **Free 2-Day Shipping!**
$599.00

Quantity:
Shipping Free Shipping *
Parts AvailableParts Available
Gold Preferred Manufacturer
  • For in-ground pools up to 40,000 gallons
  • Cell comes with new 15' cable - does not include unions
  • This item also replaces Mineral Springs, Nature Soft, & SwimPure branded cells
  • Online part number W3T-CELL-15 is the direct replacement for part number T-CELL-15.

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Hayward Goldline AquaRite Power Center Only for use with AquaRite Salt Systems (Requires Salt Cell) | GLX-CTL-RITE
Hayward Power Center Only for use with AquaRite Salt Systems | GLX-CTL-RITE
Replacement Parts

Hayward AquaTrol Above Ground Salt Chlorine Generator | Return Jet | 18K Gallons | W3AQ-TROL-RJ
Hayward AquaTrol Above Ground Salt Chlorine Generator | Return Jet | 18,000 Gallons | W3AQ-TROL-RJ
Replacement Parts

Hayward Goldline Aqua-Rite Pro | Power Center Only | Salt Generator | GLX-CTL-AR-PRO
Hayward Aqua-Rite Pro Power Center Only | GLX-CTL-AR-PRO
Replacement Parts

RELATED ITEMS
  • Hayward Goldline Turbo Cell Cleaning Stand | GLX-CELLSTAND
    Hayward Goldline Turbo
    Cell Cleaning Stand


    $41.72
  • Hayward Goldline Original Replacement Flow Switch | GLX-FLO-RP
    Hayward Goldline AquaRite Original Flow Switch GLXFLORP

    $54.05
  • Hayward Goldline AquaRite PCB Main Printed Circuit Board | GLX-PCB-RITE
    Hayward Goldline AquaRite PCB Main Printed Circuit Board

    $244.71
  • Pool Style 1# Salt Cell Cleaner for Cleaning Salt Water Generator Cells | 774263
    1# Salt Cell Cleaner for Salt Water Generator Cells

    $12.26
  • Hayward Goldline 2" Cell Union | Sold Individually | GLX-CELL-UNION
    Hayward Goldline 2" Cell Union | GLX-CELL-UNION

    $26.73
  • SuperPro O-Ring Hayward Micro-Clear & T-CELL | O-43-9
    SuperPro O-Ring Hayward Micro-Clear & T-CELL | O-43

    $3.37
  • Hayward Goldline Straight Cell Pipe | Winterizing Dummy Cell | GLX-CELL-PIPE
    Hayward Goldline Winterizing Dummy Pipe

    $44.54
OVERVIEW
The Turbo Cells automatically generate a self-renewing supply of fresh, pure chlorine for water that's clean, clear and luxuriously soft. Turbo Cells come in three sizes for in-ground pools: 40,000, 25,000 and 15,000 gallons. The three sizes enable you to right size your salt system for the most efficient and cost-effective chlorination possible.

Aqua Rite Electronic Chlorine Generators (also known as salt chlorinators) are the largest selling system in the world. They automatically produce pure chlorine every day while the pool is being filtered and distribute it evenly throughout the pool via the return jets. Aqua Rite generators use a low concentration of salt dissolved in the pool water (below the level of taste) to produce up to 1.45 lbs of chlorine daily, enough for all residential pools up to 40,000 gallons. They are also NSF certified and approved for use on commercial and public pools. They easily install on standard filtration systems, both for new construction and on existing pools.

No more mixing, measuring and messing around with liquid or tablet chlorine. Aqua Rite automatically turns common salt into a self-regenerating supply of pure chlorine. For pool and spa water that's clean, clear and luxuriously soft.

The key to Aqua Rite's chlorine generation is the Turbo Cell®, a specially-designed converter connected to the control unit by a simple plug-in cord, and plumbed into the filter pump's return line to the pool. As water is pushed through the Turbo Cell, an extremely safe low-voltage electrical charge turns the salt previously added to the water into fresh, sanitizing chlorine which is then dispersed evenly throughout the pool via the return jets.

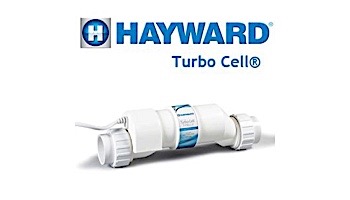

Turbo Cell®
Right-sized salt chlorination
Hayward now offers a new line of Turbo Cells for their salt chlorination and controls solutions. The cells come in three sizes " 40,000, 25,000 and 15,000 gallons. The new sizes enable you to right-size your pool for the most-efficient and cost-effective chlorination possible. These cells are based on the proven Turbo Cell technology that made Hayward the leader in salt chlorination. They automatically generate a self-renewing supply of fresh, pure chlorine " for water that's clean, clear and luxuriously soft.

Features:
  • Simple homeowner operation
  • Adjust chlorine output from 1 to 100%
  • The best water quality attainable
  • Always crystal clear and ready for swimming
  • Soft silky feel means no more red eyes or dry skin
  • Microprocessor automates all functions
  • Digital salt display and 8 diagnostic indicators
  • Patented Turbo Cell for maximum efficiency and flow rates
  • Super chlorinate function
  • Automatically cleans the cell by periodically reversing polarity
  • Quick, weatherproof connections inside control door
  • Single unit for 120VAC/240VAC 50/60 Hz power input
  • Locking weatherproof enclosure
  • UL and CUL Listed, NSF certified
Goldline AquaRite also known as Nature Soft Salt Systems

Maintaining the Aqua Rite System
To maintain maximum performance, it is recommended that you open and visually inspect the cell every 3 months or after cleaning your filter. The Aqua Rite® will remind you to do this by flashing the "Inspect Cell" LED after approximately 500 hours of operation. After you inspect the cell (and clean, if necessary) press the small "diagnostic" button next to the display for 3 seconds to stop the flashing "Inspect Cell" LED and start the timer for the next 500 hours.

The Aqua Rite electrolytic cell has a self cleaning feature incorporated into the electronic control’s logic. In most cases this self cleaning action will keep the cell working at optimum efficiency. In areas where water is hard (high mineral content) and in pools where the water chemistry has been allowed to get "out of balance", the cell may require periodic cleaning. The "Inspect Cell" LED will indicate if cell efficiency is decreased and servicing is necessary. If the "Inspect Cell" LED remains on after a thorough cleaning, the cell may be worn and require replacement.

Servicing and Cleaning the Aqua Rite cell
Turn off power to the Aqua Rite before removing the electrolytic cell. Once removed, look inside the cell and inspect for scale formation (light colored crusty or flaky deposits) on the plates and for any debris which has passed through the filter and caught on the plates. If no deposits are visible, reinstall. If deposits are seen, use a high pressure garden hose and try to flush the scale off. If this is not successful, use a plastic or wood tool (do not use metal as this will scratch the coating off the plates) and scrape deposits off of plates. Note that a buildup on the cell indicates that there is an unusually high calcium level in the pool (old pool water is usually the cause). If this is not corrected, you may to have to periodically clean the cell. The simplest way to avoid this is to bring the pool chemistry to the recommended levels as specified.

Mild Acid Washing: Use only in severe cases where flushing and scraping will not remove the majority of deposits. To acid wash, turn off power to Aqua Rite. Remove cell from piping. In a clean plastic container, mix a 4:1 solution of water to muriatic acid (one gallon of water to one quart of muriatic acid). ALWAYS ADD ACID TO WATER - NEVER ADD WATER TO ACID. Be sure to wear rubber gloves and appropriate eye protection. The level of the solution in the container should just reach the top of the cell so that the wire harness compartment is NOT submerged. It may be helpful to coil the wiring before immersing the cell. The cell should soak for a few minutes and then rinse with a high pressure garden hose. If any deposits are still visible, repeat soaking and rinsing. Replace cell and inspect again periodically.

Winterizing
The Aqua Rite electrolytic cell and flow detection switch will be damaged by freezing water just as your pool plumbing would. In areas of the country which experience severe or extended periods of freezing temperatures, be sure to drain all water from the pump, filter, and supply and return lines before any freezing conditions occur. The electronic control is capable of withstanding any winter weather and should not be removed.
text/css: Use only in severe cases where flushing and scraping will not remove the majority of deposits. To acid wash, turn off power to Aqua Rite. Remove cell from piping. In a clean plastic container, mix a 4:1 solution of water to muriatic acid (one gallon of water to one quart of muriatic acid). ALWAYS ADD ACID TO WATER - NEVER ADD WATER TO ACID. Be sure to wear rubber gloves and appropriate eye protection. The level of the solution in the container should just reach the top of the cell so that the wire harness compartment is NOT submerged. It may be helpful to coil the wiring before immersing the cell. The cell should soak for a few minutes and then rinse with a high pressure garden hose. If any deposits are still visible, repeat soaking and rinsing. Replace cell and inspect again periodically. /strong/li

Brand: HAYWARD
SPECIFICATIONS
Pool Size
40,000 Gal
System Compatibility
Hayward
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 15 questions Browse 15 questions and 22 answers
My fiberglass pool was built in 2004. It has the Aqua Logic Systems by Goldline. It is a 12 x 24 pool. Less then 15K gallons of water. I want a replacement cell for it. What do you suggest?
A shopper on Apr 30, 2016
My turbo cell's prongs, where connecting to the control panel, are burnt out causing failure. The control panel connection is burnt out as well. Has anyone experienced this problem?
Bruce S on Apr 2, 2017
BEST ANSWER: I have the same problem. Can the control panel connection be replaced without having to buy an entirely new board?
my display on the aqua rite says chlorinator is off and will not read salt level?
A shopper on Mar 13, 2017
BEST ANSWER: Make sure the wire connection at the box is pushed in all the way.
How should I clean it?
Reed C on Jun 13, 2016
BEST ANSWER: They sell a base for these, get one. Remove the cell and screw it into the base and pour acid into the cell. Let stand for @15 minutes. Drain the cell and remove any calcium deposits from the inside with a wooden skewer.
care?
Reed C on Jun 13, 2016
BEST ANSWER: Very minimal! Dip it in some acidic water once in a while (probably every 3 months or so) and screw it back into the piping. They do wear out once in a while. I was unaware of that when I designed my system. Plan on replacement every 5 years or so.
Is this the right replacement for a T15-SWP? Also my control panel is a Mineral Spirits r1.4? Will this work?
RyanS on Jun 21, 2020
BEST ANSWER: Yes it is!
how do i upgrade my aqua Rite salt cell operating system from r1.40 to r1.50 ?..i need to replace the cell but the new cell needs a operating system of r1.50...
Donna F on Jun 1, 2019
What brand of salt is best to use with this unit?
John M on Apr 28, 2016
BEST ANSWER: Not sure what is best, but I used the Mortan brand from Walmart
is this for an above the ground pool?
sandra H on Apr 20, 2016
BEST ANSWER: This can be used for an above ground or inground pool. But it is good for up to 40K gallons. The Aquatrol system is more commonly seen on above ground pools
The display on my aqua rite salt system says "Hot" in temp screen and the generating light is flashing. Any ideas as to what's wrong?
A shopper on Oct 29, 2016
BEST ANSWER: I actually returned my Hayward cell because I thought I needed the whole system, which I bought for half the price of a Hayward system. Do you have calcium build-up in the cell? That would be my only guess, sorry.
This is a new cell correct, not a warranty or refurbished cell?
A shopper on Sep 24, 2019
BEST ANSWER: Yes it is, everything sold on our website is new.
how do you clean cell?
A shopper on Jun 12, 2017
BEST ANSWER: I remove the cell from the PVC tubing and from the plug in the control unit. I screw the cell, cord end down, to a Cell Cleaning Stand. I use 1 part liquid acid to 2 parts pool water to fill it until the inside if full up to the top of the cell grates inside. Leave for about 15 minutes. Empty into the pool and do it again if you still see buildup on the cells inside.
Bought a home with a pool, 20,000 gal. Has a Turbo Cell T-15.Can it be replaced with a T-9 25,000 gal.? The pool is about 3-4 years old.
Bob M on Jul 26, 2016
BEST ANSWER: It can be replaced with a T-9 as long as it has the updated software. The revision should be at least 1.55
I currently have a Turbo Cell Aqua Rite/Logic GLX-Cell 15 with 3yr. warrantee. Is this the same as Hayward Goldline Aqua Rite? Bill
Annmarie F on Jun 12, 2016
BEST ANSWER: Yes it is. The one I ordered from Pool Supply was easy to install and has been working very well.
What are unions?
A shopper on Sep 14, 2020
REVIEWS
5.0 / 5.0
19 Reviews
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
19
0
0
0
0
Rated 5 out of 5
T-Cell-15 Salt Cell
I got excellent help in finding a replacement cell for my older r1.4 controller. Two day shipping arrived on time. Thanks,
June 23, 2017
Purchased
over 3 years ago
Rated 5 out of 5
Salt Cell purchase selection
Robert helped me over the phone to make the right size salt cell decision. Very knowledgable And helpful pool is now. Rust all clear and very inviting once again
August 27, 2016
Purchased
over 4 years ago
Rated 5 out of 5
I am very happy with the product, received as scheduled but the price is high.
May 4, 2020
Purchased
12 months ago
Rated 5 out of 5
Works perfectly
Product is exactly as expected. Delivery was on time. Installed and working within 5 minutes. Critical issue with this product is how long it lasts. the 3 year warranty should help. keep your fingers crossed!
May 5, 2020
Purchased
12 months ago
Rated 5 out of 5
Hayward make the best
This chlorinator is working perfect. Also for ground water.
July 12, 2020
Purchased
9 months ago
Rated 5 out of 5
Great
Perfect fit - exact replacement and the best price I could find. On top of that, it shipped free and no tax!
September 9, 2013
Rated 5 out of 5
Outstanding!
Great product and very quick shipping. Highly recommended!
March 22, 2021
Purchased
1 month ago
Rated 5 out of 5
Hayward Goldline AquaRite OEM Replacement Cell with Cord
Product is operating with no problems. I bought this unit from Hayward instead of 3rd party vendor because previous Hayward Goldline cell has gotten good reviews.
June 7, 2020
Purchased
11 months ago
Rated 5 out of 5
Perfect for a 1.4 salt system
Worked perfect with my 1.4 salt system. Everything is going good.
May 19, 2020
Purchased
11 months ago
Rated 5 out of 5
Second time using this company and I would not hesitate to recommend to anyone. Had the product in the time frame that was given. Thanks so much
July 21, 2020
Purchased
9 months ago
RESOURCES
Adobe Acrobat PDF Owners Manual

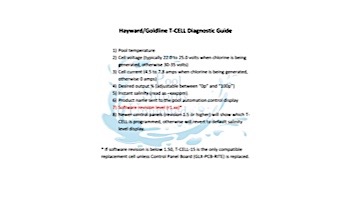

Adobe Acrobat PDF Diagnostics Guide

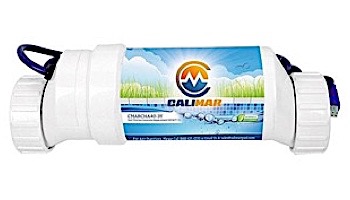

Hayward T-CELL-15 vs. CaliMar Replacement – Which One Is Best For My Pool?
Hayward T-CELL-15 vs. CaliMar Replacement – Which One Is Best For My Pool?
Need a replacement salt cell for your Hayward system in time for summer? Before you order another T-CELL-15, see how it stacks up to the powerhouse in saltwater chlorination, CaliMar.

WARRANTY
Hayward Pool Products warranties all items sold over the internet for a period of one year, parts only, no labor, ONLY when purchased from a Hayward Authorized Online Reseller.
  • Salt cell replacements W3T-CELL15, W3T-CELL-9, and W3T-CELL-3 include a three year, parts only warranty, when purchased from a Hayward Authorized Online Reseller.
