Home Hayward Goldline Aqua-Rite Pro | Power Center Only | Salt Generator | GLX-CTL-AR-PRO
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

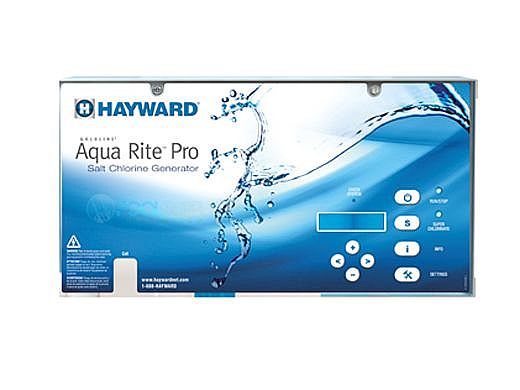

Hayward Goldline Aqua-Rite Pro | Power Center Only | Salt Generator | GLX-CTL-AR-PRO

Hayward Goldline Aqua-Rite Pro | Power Center Only | Salt Generator | GLX-CTL-AR-PRO Hayward Goldline Aqua-Rite Pro | Power Center Only | Salt Generator | GLX-CTL-AR-PRO Hayward Goldline Aqua-Rite Pro | Power Center Only | Salt Generator | GLX-CTL-AR-PRO
$1,225.37

Quantity:
Shipping Flat Rate Shipping $24.95
Platinum Preferred Manufacturer

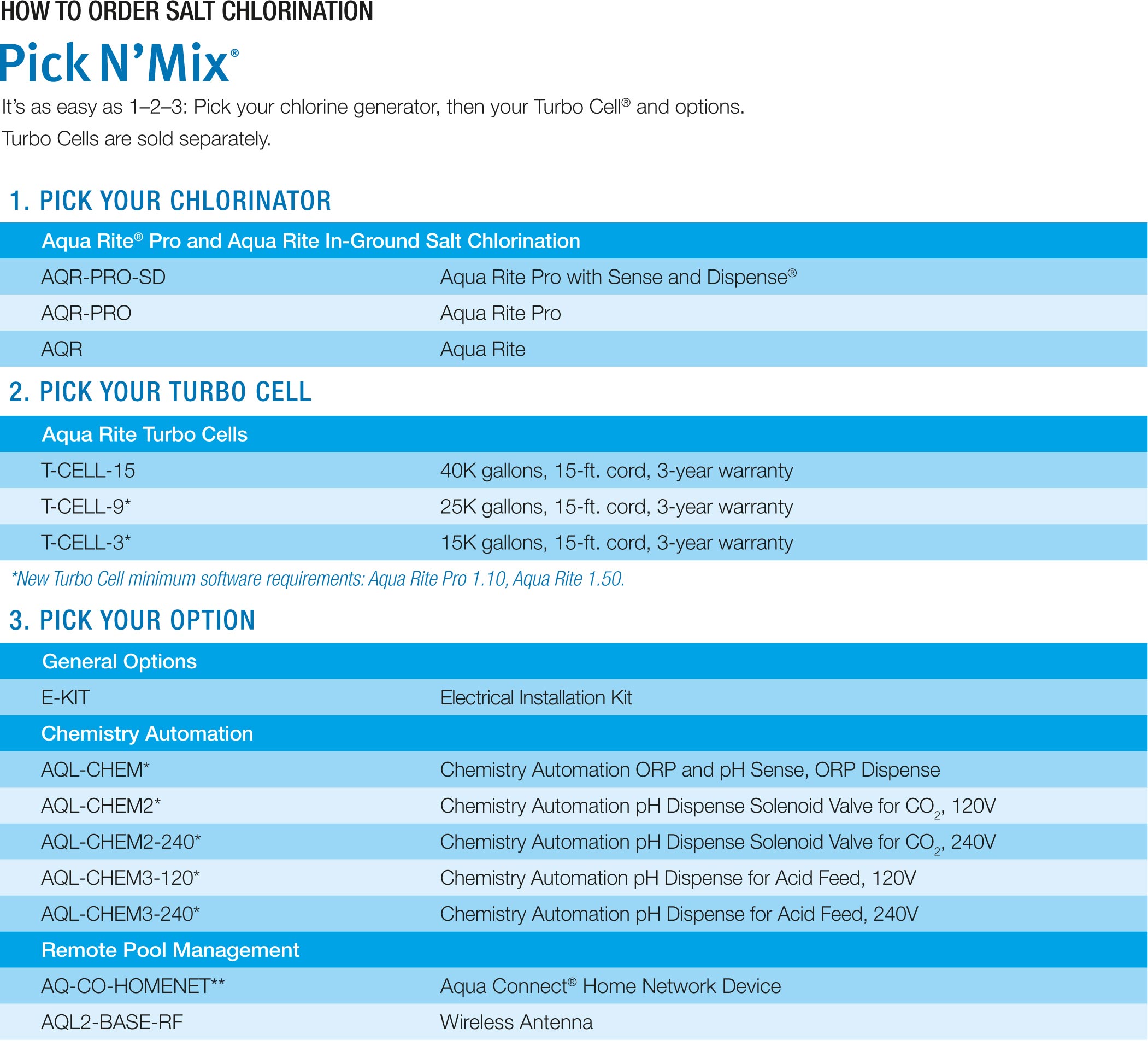

  • Salt System requires purchase of Power Center and one T-CELL. Optional Sense & Dispense requires purchase of AQL-CHEM and either an acid feeder tank or CO2 dispense kit.
  • For in-ground pools up to 40,000, 25,000 or 15,000 gallons
  • Digital salt display and 8 diagnostic indicators
  • Automatically cleans the cell by periodically reversing polarity

THIS ITEM IS A PART FOR THE FOLLOWING PRODUCTS

Hayward AquaRite Salt Generator Complete 40,000 Gallons | Power Center and Salt Cell Kit | W3AQR15
Hayward AquaRite Complete
Power Center + T-CELL-15
40K Gallons W3AQR15
Replacement Parts

Hayward Goldline Salt & Swim 3C Do-it-Yourself Control Unit Salt Chlorination For Inground Pools | SAS
Hayward Salt & Swim 3C DIY Control Unit | SAS
Replacement Parts

Hayward AquaRite Salt Generator Complete 15,000 Gallons | Power Center and Salt Cell Kit | W3AQR3
Hayward AquaRite Complete Power Center + T-CELL-3 15K Gallons W3AQR3
Replacement Parts

OVERVIEW
Description
Professional-grade Aqua Rite Pro takes pool and spa sanitation and chemistry management to new levels, building upon the industry-leading salt chlorinator - Aqua Rite. This integrated solution automatically senses ORP and pH levels and dispenses a self-renewing supply of pure chlorine generated from salt, while controlling pH. Integrating chemistry automation with sanitization eliminates the need for an additional device on the pool pad and lowers installation costs. So now you get the most consistent water quality possible, water that's brilliant, soft and silky smooth, for the best possible pool experience.

Aqua Rite uses advanced electrolytic technology to convert a small amount of ordinary salt (one teaspoon per gallon of pool water) into a virtually endless supply of fresh, pure chlorine. The process can produce up to 1.45 pounds of chlorine a day - enough to satisfy the sanitization requirements of pools up to 40,000 gallons. And since the salt doesn't wear out or evaporate, you rarely have to add more.

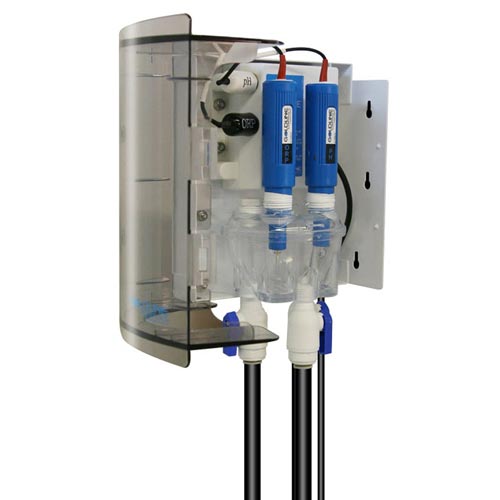

Optional Sense and Dispense®
This professional-grade ORP and pH sense and dispense technology was previously only available for commercial pools. Goldline Controls now offers an economical approach, with the same level of accuracy, for residential in-ground pools.

Turbo Cell®
Right-sized salt chlorination
Goldline Controls now offers a new line of Turbo Cells for their salt chlorination and controls solutions. The cells come in three sizes: 40,000, 25,000 and 15,000 gallons. The new sizes enable you to right-size your pool for the most-efficient and cost-effective chlorination possible. These cells are based on the proven Turbo Cell technology that made Goldline Controls the leader in salt chlorination. They automatically generate a self-renewing supply of fresh, pure chlorine for water that's clean, clear and luxuriously soft.

Applications:
  • Chemistry Automation Sense and Dispense ORP (Chlorine) and pH
  • For in-ground pools up to 40,000, 25,000 or 15,000 gallons
  • Use multiple units for larger pools
Features:
  • Simple homeowner operation
    • Adjust chlorine output from 1-100%
  • The best water quality attainable
    • Always crystal clear and ready for swimming
    • Soft silky feel-no more red eyes or dry skin
  • Microprocessor automates all functions
  • Digital salt display and 8 diagnostic indicators
  • Patented Turbo Cell for maximum efficiency and flow rates
  • Super chlorinate function
  • Automatically cleans the cell by periodically reversing polarity
  • Quick, weatherproof connections inside control door
  • Single unit for 120VAC/240VAC 50/60 Hz power input
  • Locking weatherproof enclosure
  • UL and CUL Listed, NSF certified
Maintaining the Aqua Rite System
To maintain maximum performance, it is recommended that you open and visually inspect the cell every 3 months or after cleaning your filter. The Aqua Rite® will remind you to do this by flashing the "Inspect Cell" LED after approximately 500 hours of operation. After you inspect the cell (and clean, if necessary) press the small "diagnostic" button next to the display for 3 seconds to stop the flashing "Inspect Cell" LED and start the timer for the next 500 hours.

The Aqua Rite electrolytic cell has a self cleaning feature incorporated into the electronic control’s logic. In most cases this self cleaning action will keep the cell working at optimum efficiency. In areas where water is hard (high mineral content) and in pools where the water chemistry has been allowed to get "out of balance", the cell may require periodic cleaning. The "Inspect Cell" LED will indicate if cell efficiency is decreased and servicing is necessary. If the "Inspect Cell" LED remains on after a thorough cleaning, the cell may be worn and require replacement.

Servicing and Cleaning the Aqua Rite cell
Turn off power to the Aqua Rite before removing the electrolytic cell. Once removed, look inside the cell and inspect for scale formation (light colored crusty or flaky deposits) on the plates and for any debris which has passed through the filter and caught on the plates. If no deposits are visible, reinstall. If deposits are seen, use a high pressure garden hose and try to flush the scale off. If this is not successful, use a plastic or wood tool (do not use metal as this will scratch the coating off the plates) and scrape deposits off of plates. Note that a buildup on the cell indicates that there is an unusually high calcium level in the pool (old pool water is usually the cause). If this is not corrected, you may to have to periodically clean the cell. The simplest way to avoid this is to bring the pool chemistry to the recommended levels as specified.

Mild Acid Washing: Use only in severe cases where flushing and scraping will not remove the majority of deposits. To acid wash, turn off power to Aqua Rite. Remove cell from piping. In a clean plastic container, mix a 4:1 solution of water to muriatic acid (one gallon of water to one quart of muriatic acid). ALWAYS ADD ACID TO WATER - NEVER ADD WATER TO ACID. Be sure to wear rubber gloves and appropriate eye protection. The level of the solution in the container should just reach the top of the cell so that the wire harness compartment is NOT submerged. It may be helpful to coil the wiring before immersing the cell. The cell should soak for a few minutes and then rinse with a high pressure garden hose. If any deposits are still visible, repeat soaking and rinsing. Replace cell and inspect again periodically.

Winterizing
The Aqua Rite electrolytic cell and flow detection switch will be damaged by freezing water just as your pool plumbing would. In areas of the country which experience severe or extended periods of freezing temperatures, be sure to drain all water from the pump, filter, and supply and return lines before any freezing conditions occur. The electronic control is capable of withstanding any winter weather and should not be removed.




Brand: HAYWARD
SPECIFICATIONS
Pool Size
40,000 Gallons
Pool Type
In-Ground
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
Warranty applies only to products that were purchased from Hayward authorized sellers. Pool Supply Unlimited is a Hayward Authorized Online Reseller.

See Warranty Information PDF for warranty details.

For Hayward warranty registration information, and to submit online, please visit www.hayward-pool.com

This information was updated on 4/22/2022. For the most current information and full warranty policy please visit www.hayward-pool.com


 Adobe Acrobat PDF Warranty Information
