Pentair Sta-Rite Submersible Pool Service Pump | .5HP 115V | PCD-10B-01

Pentair Sta-Rite Submersible Pool Service Pump | .5HP 115V | PCD-10B-01 Pentair Sta-Rite Submersible Pool Service Pump | .5HP 115V | PCD-10B-01 Pentair Sta-Rite Submersible Pool Service Pump | .5HP 115V | PCD-10B-01
This item has been discontinued.

Platinum Preferred Manufacturer
  • Pumps 20-60 Gallons per Minute (see picture of chart to left by clicking on it)
  • Pump has 1.25" female threads. For adapting to a hose recommended to also purchase adapter (see purchase option)
  • Oil-filled motor and sealed with silicone carbide shaft seal for longer service life and cooler running

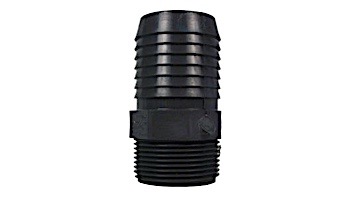

  • Barbed Hose Adaptor 1 1/4  inch x 1 1/2 inch MIPT x INS | 1436-169
    Barbed Hose Adaptor 1 1/4 inch x 1 1/2 inch MIPT x INS | 1436-169

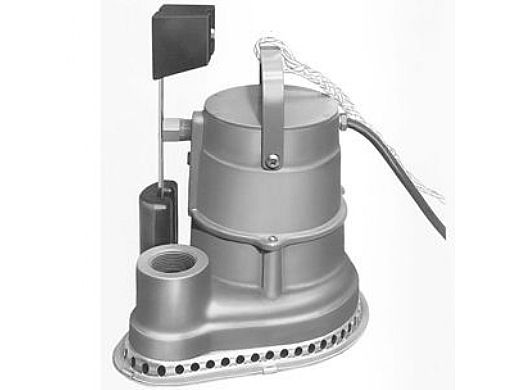

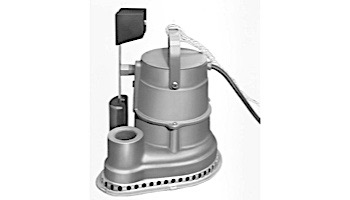

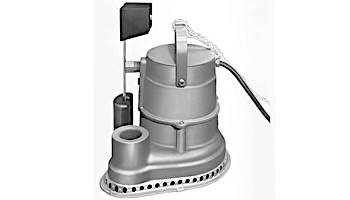

A fully submersible, portable, high capacity pump designed for use by the professional in draining pools and spas as well as for general purpose applications. Its heavy cast iron body withstands regular handling while a brass base prevents staining of pool floor surfaces. The 1/2 HP motor is oil-filled and sealed with silicone carbide shaft seal for longer service life and cooler running.

NOTE: Not for continuous duty use in waterfalls, fountains, etc., or for pumping acid solutions in conjunction with pool service work. Warranty will be voided under these conditions.

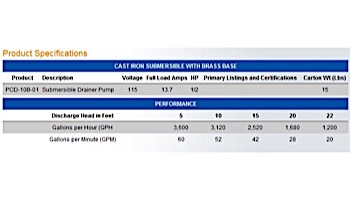

Discharge Head 5 ft. 10 ft. 15 ft. 20 ft. 22 ft.
Gallons per Hour 3,600 3,120 2,520 1,680 1,200
Gallons per Minute 60 52 42 28 20

Brand: Pentair
115 V
