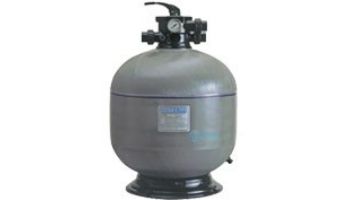

Waterco Micron S500 20" Top Mount Fiberglass Sand Filter | 2.12 Sq. Ft. 41 GPM | 2201224NA

$311.27

Proven Strength and Durability

Micron filters operate on the basis of "depth filtration"; dirt is driven through the filter bed and trapped in minute spaces between the particles of filter media allowing the cleansed water to pass through the filter's laterals and exit via the filter's Multiport valve.

Features

Inflow diffuser for even distribution of water flow across the filter bed
Pressure gauge
Multiport valve with quick connect barrel unions (sold separately)
Fiberglass wound tank, UV and corrosion resistant
Hydraulically balanced laterals to maximize water flow and filtration
Manual drain
Large filter base for stable floor mounting
Working pressure 36 psi
Maximum working temperature of 50°CC (122°F)

Filament Wound Construction

Micron fiberglass filters embody the latest in fiberglass winding technology. Micron fiberglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fiberglass filament. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

Micron "Fish Tail" Laterals

Conventional laterals have "dead legs" existing between the laterals, which exist between the laterals, which compromises water flow through the filter bed. Waterco's unique "fish tail" lateral configuration eliminates this problem by providing effective coverage of the filter bed and balanced water flow.

Filament Wound filters are equipped with "Fish Tail" laterals, to improve its filtration and backwashing hydraulic efficiency
Fish Tail laterals provide effective coverage of the filter bed and balanced water flow, during backwashing
Filament Wound filters backwash time is significantly reduced, leading to a 30% savings of backwash water

Energy Saving "Fish Tail" Laterals

The filament wound filters hydraulic efficiency halves the backwash flow rate of a conventional sand filter, allowing the option for low powered, energy efficient pumps for filtration flow and backwash flow.

Simple Maintenance

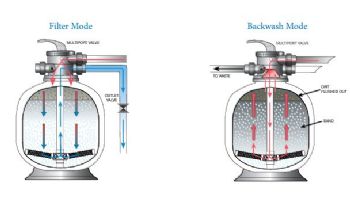

The effectiveness and efficiency of the filter is impaired by excessive build up of debris, clogging the media, which will result in pressure build up and poor circulation. Cleaning the filter simply requires turning the filter’s Multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.

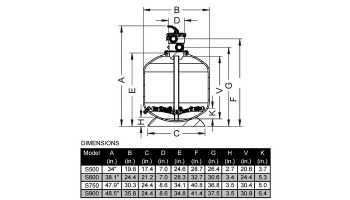

Specifications:

Model	Valve Size (in.)	Bed Depth (in.)	Inner Dia. (in.)	Filter Area (sq ft)	Max Flow (gpm)	Max Pool Size (gal.)	Backwash Flow Rate (gpm)	Media Volume (gal.)	Glass Pearl 0.6-0.8 (lb)	Sand 16/30 (lb)
S500	1.5	11	19.7	2.12	41	14,900	34-43	17	250	225
S600	1.5	11.6	23.6	3.05	59	21,500	49-62	28	400	375
S602	2	11.6	24	3.14	63	30,000	47-106	32	400	375
S750	2	13.4	29.6	4.76	93	33,600	77-97	47	700	625
S900	2	16.5	35.5	6.85	134	48,300	112-140	85	900	825

REVIEWS

Q&A

PARTS

Questions that need answers | My Posts

Start typing your question and we'll check if it was already asked and answered. Learn More

No questions have been asked about this item. Be the first!

Waterco Micron S500 20" Top Mount Fiberglass Sand Filter | 2.12 Sq. Ft. 41 GPM | 2201224NA

$311.27

Quantity

Parts Available

Platinum Preferred Manufacturer

Purchase options

Product description

Proven Strength and Durability

Features

Inflow diffuser for even distribution of water flow across the filter bed
Pressure gauge
Multiport valve with quick connect barrel unions (sold separately)
Fiberglass wound tank, UV and corrosion resistant
Hydraulically balanced laterals to maximize water flow and filtration
Manual drain
Large filter base for stable floor mounting
Working pressure 36 psi
Maximum working temperature of 50°CC (122°F)

Filament Wound Construction

Micron "Fish Tail" Laterals

Filament Wound filters are equipped with "Fish Tail" laterals, to improve its filtration and backwashing hydraulic efficiency
Fish Tail laterals provide effective coverage of the filter bed and balanced water flow, during backwashing
Filament Wound filters backwash time is significantly reduced, leading to a 30% savings of backwash water

Energy Saving "Fish Tail" Laterals

Simple Maintenance

Specifications:

Model	Valve Size (in.)	Bed Depth (in.)	Inner Dia. (in.)	Filter Area (sq ft)	Max Flow (gpm)	Max Pool Size (gal.)	Backwash Flow Rate (gpm)	Media Volume (gal.)	Glass Pearl 0.6-0.8 (lb)	Sand 16/30 (lb)
S500	1.5	11	19.7	2.12	41	14,900	34-43	17	250	225
S600	1.5	11.6	23.6	3.05	59	21,500	49-62	28	400	375
S602	2	11.6	24	3.14	63	30,000	47-106	32	400	375
S750	2	13.4	29.6	4.76	93	33,600	77-97	47	700	625
S900	2	16.5	35.5	6.85	134	48,300	112-140	85	900	825

Features and details

Specifications

Resources

Warranty

SCHEDULE OF PARTS WARRANTY PERIODS

All products sold by Waterco are covered by a one year warranty with the exception of the products listed below.

Product	Full Warranty
PUMPS	1 Years
• Variable Speed Pumps	3 Years
FILTER
• Thermoplastic filter tank / Exotuf filter tank	2 Years
• Filament Wound	10 Years
•Trimline / Bag filter tank	5 Years
• DE / Tri-Cartridge filter	2 Years
• MultiCyclone, Plus / Ultra / XL	2 Years
*Except: All internal parts including fittings, valves, gauges, cartridge elements, DE grids.	1 Year
All multiport valves	2 Year

Commercial Applications: All products installed in a commercial application are covered by a one year warranty except commercial filament wound tanks

Product	Full Warranty
Comercial filament wound tanks	10 Years
Parts and Internals	1 Year
Commercial Pumps	1 Year

SUMMARY OF WARRANTY LIMITATIONS

The provisions of this warranty are not transferable from the original purchaser and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.

Spare parts used in the repair of products are covered by a 12 month warranty and are not covered by the original warranty from date of purchase or installation.

The purchaser is responsible for any freight incurred. *** See Warranty Booklet for Full Terms & Conditions of Warranty ***

This warranty does not cover any failure in service caused by improper installation, or improper operation as a result of noncompliance with the maintenance and installation manual. Nor is any failure as a result of fire, wreckage, freezing, willful abuse, improper repackaging or damage incurred in transportation. Warranty will also not cover consequential damage resulting from any failure in service. Faulty parts will be replaced free of charge, after inspection by our Quality Control Department.

See attached warranty document for full warranty, including conditions, exclusions and pro-rata warranty terms.

This information was updated on 9/3/24. For the most current information and full warranty policy please visit www.waterco.us.
