Home Waterco Micron S900 36" Top Mount Fiberglass Sand Filter | 6.85 Sq. Ft. 134 GPM | 2201364NA
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED. Please contact us via Live Chat the quickest response.

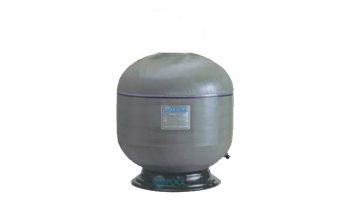

Waterco Micron S900 36" Top Mount Fiberglass Sand Filter | 6.85 Sq. Ft. 134 GPM | 2201364NA

Waterco Micron S900 36" Top Mount Fiberglass Sand Filter | 6.85 Sq. Ft. 134 GPM | 2201364NA Waterco Micron S900 36" Top Mount Fiberglass Sand Filter | 6.85 Sq. Ft. 134 GPM | 2201364NA Waterco Micron S900 36" Top Mount Fiberglass Sand Filter | 6.85 Sq. Ft. 134 GPM | 2201364NA
$798.01

Quantity:
Parts AvailableParts Available
Platinum Preferred Manufacturer
  • Requires Backwash Valve, Sold Separately. See Related Items.
  • Water Savings for up to 30%
  • Improve Water Clarity
  • Water Saving "Fish Tail" Laterals
  • Ideal for Low Powered and Energy Efficient Pumps
RELATED ITEMS
  • Waterco Multiport Valve for use with Sand Filters | 2" for Top Mount Filter | 228053
    Waterco Multiport Valve for use with Sand Filters | 2" for Top Mount Filter | 228053

    $137.71
OVERVIEW
Proven Strength and Durability

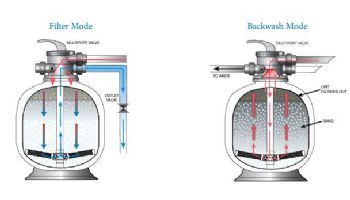

Micron filters operate on the basis of "depth filtration"; dirt is driven through the filter bed and trapped in minute spaces between the particles of filter media allowing the cleansed water to pass through the filter's laterals and exit via the filter's Multiport valve.

Features
  • Inflow diffuser for even distribution of water flow across the filter bed
  • Pressure gauge
  • Multiport valve with quick connect barrel unions (sold separately)
  • Fiberglass wound tank, UV and corrosion resistant
  • Hydraulically balanced laterals to maximize water flow and filtration
  • Manual drain
  • Large filter base for stable floor mounting
  • Working pressure 36 psi
  • Maximum working temperature of 50°CC (122°F)
Filament Wound Construction
Micron fiberglass filters embody the latest in fiberglass winding technology. Micron fiberglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fiberglass filament. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

Micron "Fish Tail" Laterals
Conventional laterals have "dead legs" existing between the laterals, which exist between the laterals, which compromises water flow through the filter bed. Waterco's unique "fish tail" lateral configuration eliminates this problem by providing effective coverage of the filter bed and balanced water flow.
  • Filament Wound filters are equipped with "Fish Tail" laterals, to improve its filtration and backwashing hydraulic efficiency
  • Fish Tail laterals provide effective coverage of the filter bed and balanced water flow, during backwashing
  • Filament Wound filters backwash time is significantly reduced, leading to a 30% savings of backwash water
Energy Saving "Fish Tail" Laterals
The filament wound filters hydraulic efficiency halves the backwash flow rate of a conventional sand filter, allowing the option for low powered, energy efficient pumps for filtration flow and backwash flow.

Simple Maintenance
The effectiveness and efficiency of the filter is impaired by excessive build up of debris, clogging the media, which will result in pressure build up and poor circulation. Cleaning the filter simply requires turning the filter’s Multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.

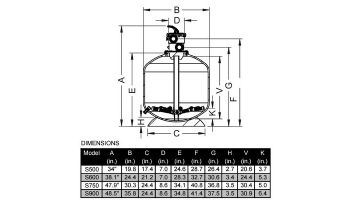

Specifications:
Model Valve Size
(in.)
Bed Depth
(in.)
Inner Dia.
(in.)
Filter Area
(sq ft)
Max Flow
(gpm)
Max Pool Size
(gal.)
Backwash
Flow Rate
(gpm)
Media Volume
(gal.)
Glass Pearl
0.6-0.8
(lb)
Sand
16/30
(lb)
S500 1.5 11 19.7 2.12 41 14,900 34-43 17 250 225
S600 1.5 11.6 23.6 3.05 59 21,500 49-62 28 400 375
S602 2 11.6 24 3.14 63 30,000 47-106 32 400 375
S750 2 13.4 29.6 4.76 93 33,600 77-97 47 700 625
S900 2 16.5 35.5 6.85 134 48,300 112-140 85 900 825


SPECIFICATIONS
Tank Diameter
35.5"
Valve Position
Top
ClearPro Technology
No
Square Foot
6.85
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
No questions have been asked about this item. Be the first!
REVIEWS
There are no reviews for this item. Write Review
RESOURCES
WARRANTY
WARRANTY COVER
If a defect occurs in any Waterco product during the warranty period, Waterco will at its discretion, repair the product or replace and install the defective part, free of charge provided that the defect results solely from poor workmanship or materials and subject to these terms and conditions. Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent. The purchaser is responsible for any freight incurred. Warranties are valid only within the original country of purchase. Our goods come with guarantees that cannot be excluded under the region's Consumer Law. You are entitled to a replacement or refund for a major failure.

WARRANTY PERIOD
All products sold by Waterco are covered by a one year warranty. The exceptions to this are the products listed in the schedule below (which also specifies relevant warranty periods). All warranty periods commence on the date of purchase by the end user. The provisions of this warranty are not transferable and are in addition to and not in modification of or subtraction from any applicable statutory warranties, rights or remedies.

SCHEDULE OF PARTS WARRANTY PERIODS
All products sold by Waterco are covered by a one year warranty with the exception of the products listed below. Please note: Labour is covered by this warranty for a period of 12 months from the date of purchase or installation, within a 25 km (15 miles) radius of an authorised Waterco Service Agent.

Product Warranty Pro-Rata Warranty
PUMPS
Conditions
• Wet Ends 3 Years
• Hair & Lint pot lid, "o" ring, basket, impeller & diffuser 2 Years
• Motor mechanical seal & capacitor 1 Year
¹Except;
• ¹Portapac and Delta Spa & Bath Pumps 2 Years
• ¹Fulflo pressure pump 2 Years
FILTER
• ¹Thermoplastic filter tank 5 Years 5 Years (Refer Column A)
• ¹Filament Wound / Exotuf filter tank 10 Years Not applicable
• ¹Cartridge / Bag filter tank 5 Years 5 Years (Refer Column A)
• ¹DE / Pearlite filter tank 3 Years 2 Years (Refer Column A)
• ¹MultiCyclone 12-16 Plus / Ultra 3 Years
¹Except: All internal parts including fittings, valves,
gauges, cartridge elements, DE / Pearlite grids.
1 Year
• All multiport valves used on media (granular) or
DE / Pearlite
1 Year
CHEMFLO PLUS
• Controller / Feeder 3 Years
• Sensor 1 Year
SALT CHLORINATORS
• Electrochlor / Hydrochlor Chlorinator Cell 3 Years
• Electrochlor / Hydrochlor Chlorinator Power Pack 3 Years
¹&²HEAT PUMPS 3 Years
• ¹Compressor 3 Years
• ²Titanium Heat Exchanger 10 Years
• All other components 2 Years
GAS HEATER 2 Years
DIGIHEAT 2 Years
POOL LIGHTS & ACCESSORIES
• Britestream LED Pool Lights 2 Years
• Litestream LED Pool Lights 1 Year
• Light Transformers 1 Year
AUTOMATION PRODUCTS
• Waterco Controllers 2 Years
• Waterco Temperature Sensor 1 Year

See attached warranty document for full warranty, including conditions, exclusions and pro-rata warranty terms.

This information was updated on 10/10/19. For the most current information and full warranty policy please visit www.waterco.us.
