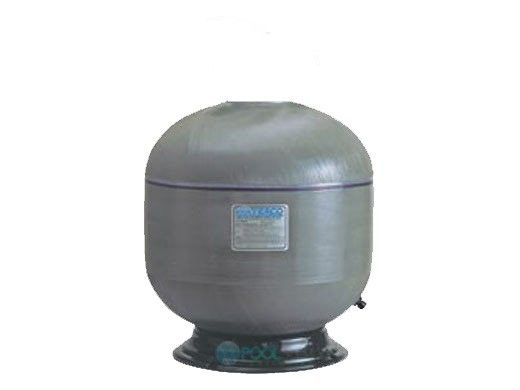

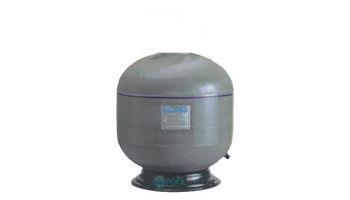

Home Waterco Micron S602 24" Top Mount Fiberglass Sand Filter | 3.14 Sq. Ft. 63 GPM | 220126401NA
NOTICE: The pool & spa industry continues to face industry-wide shortages on many products that most vendors expect to last late into 2022. ... We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product is available. Most vendors are not providing any ETA on when items will be available. WE WILL EMAIL YOU RIGHT AWAY IF YOUR ITEM IS BACKORDERED.

Waterco Micron S602 24" Top Mount Fiberglass Sand Filter | 3.14 Sq. Ft. 63 GPM | 220126401NA

$398.58
Waterco Micron S602 24" Top Mount Fiberglass Sand Filter | 3.14 Sq. Ft. 63 GPM | 220126401NA
Waterco Micron S602 24" Top Mount Fiberglass Sand Filter | 3.14 Sq. Ft. 63 GPM | 220126401NA
Waterco Micron S602 24" Top Mount Fiberglass Sand Filter | 3.14 Sq. Ft. 63 GPM | 220126401NA
Proven Strength and Durability

Micron filters operate on the basis of "depth filtration"; dirt is driven through the filter bed and trapped in minute spaces between the particles of filter media allowing the cleansed water to pass through the filter's laterals and exit via the filter's Multiport valve.

Features
  • Inflow diffuser for even distribution of water flow across the filter bed
  • Pressure gauge
  • Multiport valve with quick connect barrel unions (sold separately)
  • Fiberglass wound tank, UV and corrosion resistant
  • Hydraulically balanced laterals to maximize water flow and filtration
  • Manual drain
  • Large filter base for stable floor mounting
  • Working pressure 36 psi
  • Maximum working temperature of 50°CC (122°F)
Filament Wound Construction
Micron fiberglass filters embody the latest in fiberglass winding technology. Micron fiberglass vessels consist of an inner shell of fiberglass reinforced polyester resin wound over with fiberglass filament. Waterco's digitally controlled filament winding machine faultlessly winds continuous strands of high quality fiberglass filament under controlled tension filament to create a seamless one-piece vessel with refined consistency and superior quality. There are no welds or seams or special tank linings which can corrode or electrolyse.

Micron "Fish Tail" Laterals
Conventional laterals have "dead legs" existing between the laterals, which exist between the laterals, which compromises water flow through the filter bed. Waterco's unique "fish tail" lateral configuration eliminates this problem by providing effective coverage of the filter bed and balanced water flow.
  • Filament Wound filters are equipped with "Fish Tail" laterals, to improve its filtration and backwashing hydraulic efficiency
  • Fish Tail laterals provide effective coverage of the filter bed and balanced water flow, during backwashing
  • Filament Wound filters backwash time is significantly reduced, leading to a 30% savings of backwash water
Energy Saving "Fish Tail" Laterals
The filament wound filters hydraulic efficiency halves the backwash flow rate of a conventional sand filter, allowing the option for low powered, energy efficient pumps for filtration flow and backwash flow.

Simple Maintenance

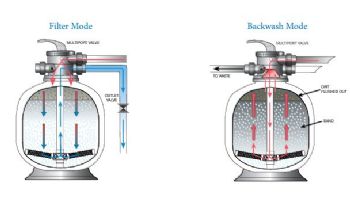

The effectiveness and efficiency of the filter is impaired by excessive build up of debris, clogging the media, which will result in pressure build up and poor circulation. Cleaning the filter simply requires turning the filter’s Multiport lever from the "filter" position to the "backwash" position, which reverses the flow of water in the filter, flushing the filter bed.

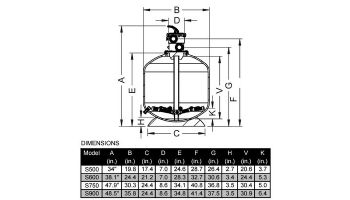

Specifications:
Model Valve Size
(in.)
Bed Depth
(in.)
Inner Dia.
(in.)
Filter Area
(sq ft)
Max Flow
(gpm)
Max Pool Size
(gal.)
Backwash
Flow Rate
(gpm)
Media Volume
(gal.)
Glass Pearl
0.6-0.8
(lb)
Sand
16/30
(lb)
S500 1.5 11 19.7 2.12 41 14,900 34-43 17 250 225
S600 1.5 11.6 23.6 3.05 59 21,500 49-62 28 400 375
S602 2 11.6 24 3.14 63 30,000 47-106 32 400 375
S750 2 13.4 29.6 4.76 93 33,600 77-97 47 700 625
S900 2 16.5 35.5 6.85 134 48,300 112-140 85 900 825
