Home Pool Alternative Sanitizers DEL Advanced Sanitization Solutions DEL AOP S Ozone + UV Sanitation for Residential Pools | 25,000 Gallons | 120V/240V | SEC-50-01
NOTICE: The Texas weather emergency in February, in addition to the ongoing demand increase for pool products from the Covid pandemic, have caused industry-wide shortages on many products that most vendors expect to last late into 2021/early 2022. We're allowing items to be purchased so that customers who choose to wait will have their order shipped when product arrives. Many times there are long shipping delays on the few products we do have in stock. Please contact us to ask about availability. Live Chat and email are the best. Please keep trying back via chat and email as we can't answer them as fast as they come in but we are here, so keep trying! We're currently 20+ days behind on returning email (email is the best way to get a reply when all chat associates are busy).

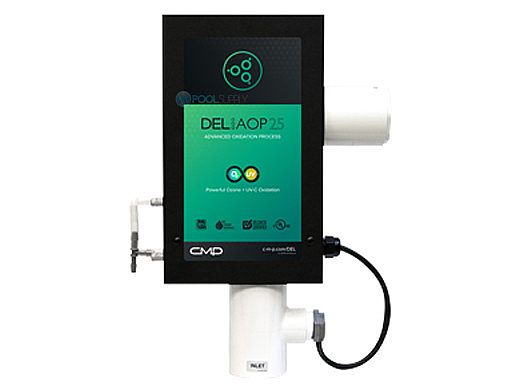

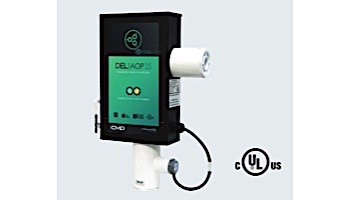

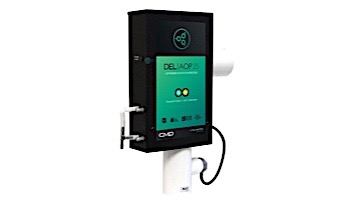

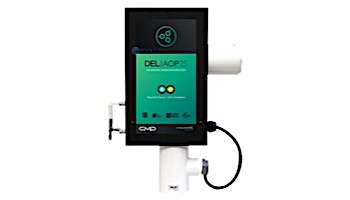

DEL AOP S Ozone + UV Sanitation for Residential Pools | 25,000 Gallons | 120V/240V | SEC-50-01

DEL AOP S Ozone + UV Sanitation for Residential Pools | 25,000 Gallons | 120V/240V | SEC-50-01 DEL AOP S Ozone + UV Sanitation for Residential Pools | 25,000 Gallons | 120V/240V | SEC-50-01 DEL AOP S Ozone + UV Sanitation for Residential Pools | 25,000 Gallons | 120V/240V | SEC-50-01 DEL AOP S Ozone + UV Sanitation for Residential Pools | 25,000 Gallons | 120V/240V | SEC-50-01 DEL AOP S Ozone + UV Sanitation for Residential Pools | 25,000 Gallons | 120V/240V | SEC-50-01
$733.56

Quantity:
Silver Preferred Manufacturer
  • Advanced Plasma Gap (APG) Ozone + UV-C Oxidation
  • Destroys 99.9% of dangerous contaminants
  • The most powerful advanced sanitizer
  • Lightweight and compact design
  • AOP power for smaller pools, up to 25,000 gallons
RELATED ITEMS
  • DEL MDV Mixing De-Gas Vessel for DEL OZONE Systems | MDV-10-04
    DEL MDV Mixing De-Gas Vessel for DEL OZONE Systems | MDV-10-04

    $402.15
  • DEL MDV Mixing De-Gas Vessel for DEL AOP Systems | MDV-10-08
    DEL MDV Mixing De-Gas Vessel for DEL AOP Systems | MDV-10-08

    $187.75
  • DEL Replacement Ozone Module | 9-1056-01
    DEL Replacement Ozone Module | 9-1056-01

    $64.69
  • DEL Ozone Supply Check Valve & Tubing Assembly | Standard Duty | 9-0770-01
    DEL Ozone Supply Check Valve & Tubing Assembly | Standard Duty | 9-0770-01

    $21.17
  • DEL AOP50 Quartz Tube O-Ring | 7-1981-01 7-1871-01
    DEL O-Ring | 7-1981-01

    $5.54
  • DEL Sleeve for UV Lamp DEL AOP | 9-1204-01
    DEL Sleeve for UV Lamp DEL AOP | 9-1204-01

    $35.53
OVERVIEW
AOP: The Most Powerful Advanced Sanitizer

Through the combination of Corona Discharge Technology, Germicidal UV Light, and DEL's Advanced Plasma Gap technology, the DEL AOP lineup provides Advanced Oxidation Process in truly robust units.

The Advantages of AOP
With the use of AOP microorganisms are destroyed, chloramines are broken down and chlorine dependence is clear results
  • Destroys 99.9% of harmful contaminants
  • Quickly oxidizes Cryptosporidium parvum, Giardia, and other chlorine resistant microorganisms
  • Dramatically reduces chemical demand & increases effectiveness of residual sanitizers
  • Eliminates chemical odors, irritations, and will not damage pool systems
The Science of AOP

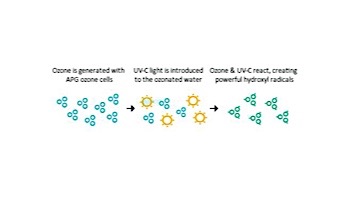

When germicidal UV light (UV-C) and ozone react the result is the production of hydroxyl radicals. This reaction is known as Advanced Oxidation Process, or AOP.
Hydroxyl radicals (•OH) are the most powerful oxidation agents available, quickly destroying bacteria, viruses, pathogens and other contaminants that occur in water.
Hydroxyl radicals also destroy chlorine resistant microorganisms, such as Cryptosporidium Parvum, Giardia and E.Coli.

The Power of AOP
AOP is dramatically more powerful than Chlorine and other sanitizers, and even more powerful than Ozone alone. In AOP systems, the highly unstable hydroxyl radicals react with dissolved waterborne contaminants in a series of strong oxidation reactions. This process happens almost instantaneously.

SPECIFICATIONS DEL AOP S
Application 25,000 Gallons or less
Plumbing Connections Inlet and Outlet 3/4 inch PVC Socket
Maximum Flow Rate 20 GPM*
Mounting Wall Mount
Enclosure Rating CSA/NEMA 3 | Indoor/Outdoor Installation
Voltage 110-240 VAC, 50/60 HZ, 1Ø, 0.3 Amps
Dimensions 16.7"H x 11.9"W x 3.2"D
Weight 9.2 lbs
Germicidal UV Lamp Low Pressure/High Output UV-C Germicidal
Ozone Cell APG Cells; 5 Year Life Expectancy
MDV Unit MDV


Brand: DEL
SPECIFICATIONS
Color
Black
Voltage
Dual
Capacity (Gallons)
25,000
Q & A
Start typing your question and we'll check if it was already asked and answered. Learn More
Browse 2 questions Browse 2 questions and 3 answers
Is it necessary to add the DEL Ozone MDV-10-08
Standard Size Mixing De-Gas Vessel - for AOP 25 ?
Ken D on Jul 13, 2018
I heard the ozone in this product is so strong that it can cause failure in PVC fittings, pool lights, wall returns and pump seals. Do you have actual experience with this product and how did it perform?
k l on Mar 30, 2018
BEST ANSWER: So I've been quite happy with the product, but hadn't heard about these potential issues. We have a 10,000 gallon pool, and I've found this device to be highly effective in disinfection as we run our pool virtually chlorine free (less than .01 ppm) and the water is crystal clear in our fiberglass pool. Did get some black algae this year so i cranked up my chlorinator a bit but we're still running well below .1ppm chlorine. Now our pool lights did go out last year, maybe 6 months after installing, but I figured it was just their time as the led arrays were already largely non-functional and there was evidence of water ingress before we installed this unit. Not sure about pvc leaks, I had to replace my sand filter as the valve was leaking, but that's upstream of this unit in the installation. All in all, we're happy with it, not sure when it'll start breaking as we've only had it a year now. Hope this help :)
REVIEWS
3.0 / 5.0
1 Review
5 Stars
4 Stars
3 Stars
2 Stars
1 Star
0
0
1
0
0
Rated 3 out of 5
Check vales only last 2-3 months
Not sure if this unit actually does much. It stops functioning every 2-3 months when the check valve fails.
Service was initially good but now told to keep buying spare parts.
Would not buy again.
February 28, 2021
Purchased
1 year ago
RESOURCES
WARRANTY
Custom Molded Products, LLC takes great pride in the quality products that it manufactures. The company maintains high standards for the materials and workmanship that it invests in its products. Accordingly, Custom Molded Products makes this express Limited Warranty with respect to products manufactured solely by Custom Molded Products, LLC, as follows:

Custom Molded Products warrants its products to be free of defects in material and workmanship for a period of one (1) year from the date of original purchase of the Custom Molded Products product unless otherwise noted.

Exceptions to standard CMP one (1) year warranty:
  • DEL UV-C 50: 2 year warranty
  • UV-C Bulbs for DEL AOP & UV-C 50: 18 months
  • Powerclean Salt Ultra: 3 year warranty (parts & labor)
  • Powerclean Salt Ultra Extended Life: 4 year warranty (parts & labor)
  • Powerclean Salt Econ: 2 year warranty (parts & labor)
  • Replacement for T-15 Cell: 2 year warranty

See warranty document for full warranty details.

This information was updated on 10/16/19. For the most current information and full warranty policy please visit www.c-m-p.com.
